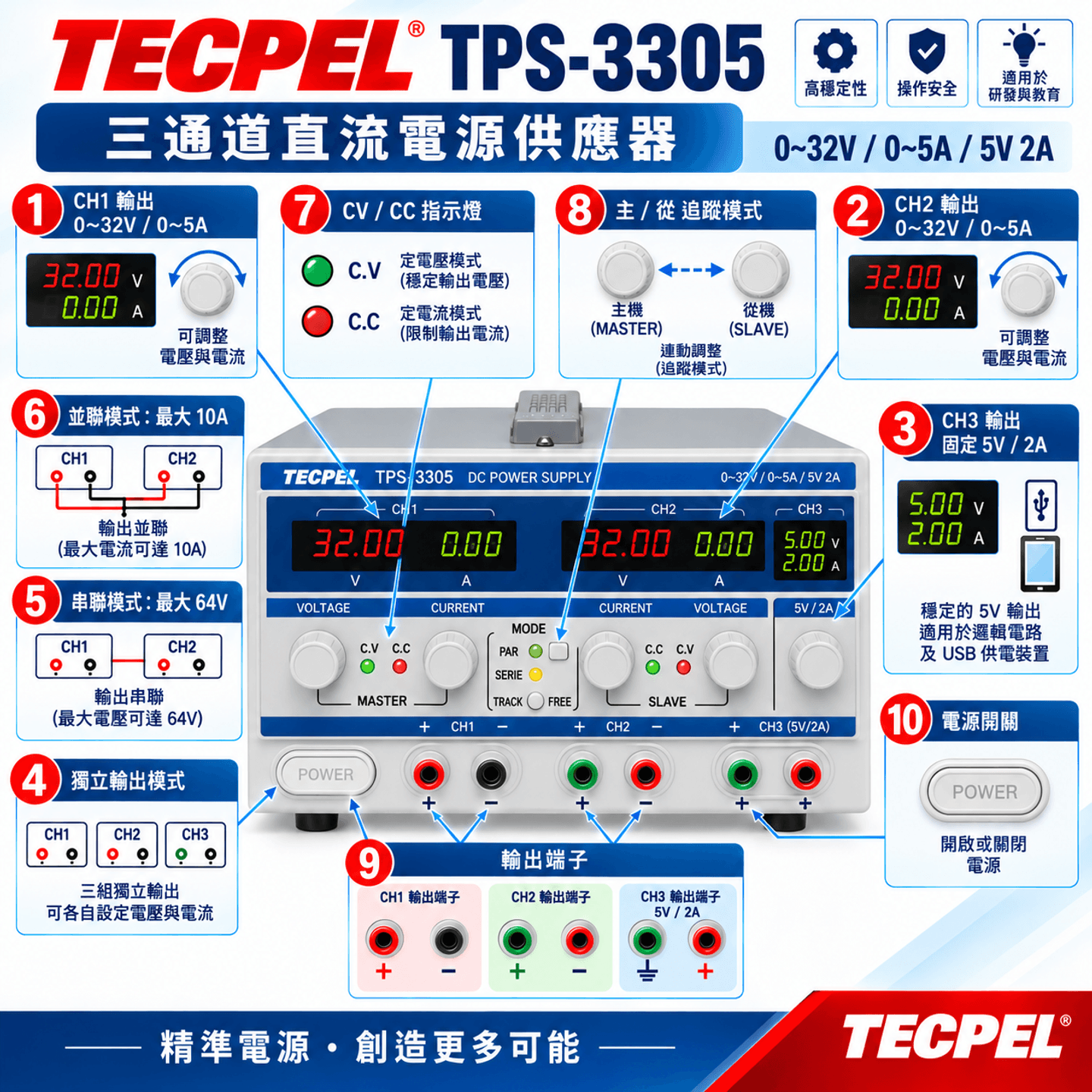

32V/5A Triple Output Linear DC Power Supply
Brand
TECPEL
|
Model
TPS-3305
|
🇨🇳 China
The TPS-3305 is a triple output linear DC power supply with CH1/CH2 0~32V / 0~5A adjustable outputs, a fixed 5V / 2A output, series/parallel operation, low ripple, low noise and overload protection.
Price
NT$ 6,500
Out of Stock
Views: 77
Description
The TPS-3305 is a triple output linear DC power supply designed for laboratory, design validation and industrial test environments. CH1 and CH2 provide adjustable 0~32V / 0~5A outputs, while CH3 provides a stable fixed 5V / 2A output for logic circuits and USB-powered devices. Series and parallel modes support up to 64V or up to 10A output combinations, while constant-voltage, current-limit, low-ripple, low-noise, overload and reverse-polarity protection help keep testing stable and safe.
Specifications
- Output Voltage0~32V / 0~5A
- CH3 Output Range5V / 2A
- Series Output0~64V / 0~5A
- Parallel Output0~32V / 0~10A
- Operating ModeThree independent outputs
- Constant Voltage Regulation≤0.01%＋3mV
- Voltage Load Regulation Rate≦0.05%＋2mV
- Ripple & Noise1mVrms
- Current Limit Regulation Rate≤20mA
- Current Load Regulation Rate0.5%＋3mA
- Ripple Current≤1mArms
Features
- Output Channels3 channels
- Series/Parallel ModeSeries voltage 64V / parallel current 10A
- Display ModeDual display
- Operating ModeConstant voltage and current limit modes
- Output CharacteristicsLow ripple and low noise
- Overload ProtectionOverload and reverse-polarity protection
- Alarm FunctionCC and CV indicator lights
- Master / Slave TrackingLinked adjustment in tracking mode
Attributes
- Operating Environment0~40°C / below 70%RH, non-condensing
- Storage Environment-10~60°C / below 80%RH, non-condensing
- Altitude LimitBelow 1,000 m
- Mean Time Between Failures (MTBF)≥3000h
- Power SupplyAC 110~220V 50Hz/60Hz
- Dimensions29(D) × 22(W) × 16(H) cm
- Weight6kg
- AccessoriesPower cord, test leads
