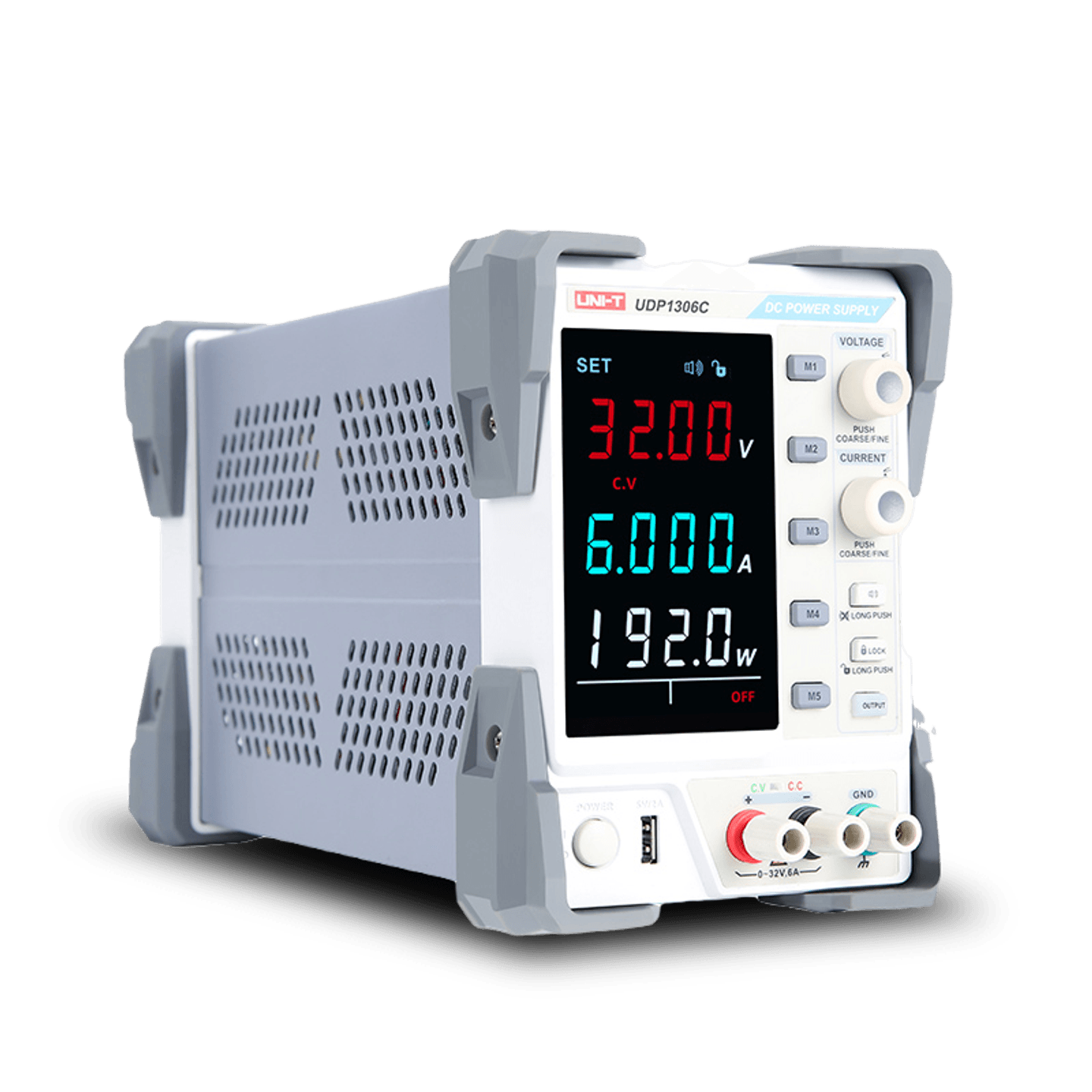

UNI-T UDP-1306C Programmable DC Power Supply
Brand
UNI-T
|
Model
UDP-1306C
|
🇨🇳 China
The UDP1306C is a single-channel programmable linear DC power supply. As a basic power supply product, it features a compact size and high reliability. It offers low ripple and noise, fast transient response, and excellent line and load regulation.
Price
NT$ 8,500
In Stock
Views: 1
Description
The UDP-1306C is a programmable DC power supply in the UNI-T UDP1000 series, suitable for electronic R&D, maintenance testing, and laboratory power supply applications. It provides stable DC output and offers multiple protection and control capabilities, helping users quickly set the required voltage and current in different testing scenarios.
Specifications
- Output TypeDC Output
- Number of Channels1
- Output Voltage Range0~32V
- Output Current Range0~6A
- Resolution10mV/1mA
- Voltage Accuracy≤0.01%+2mV
- Current Accuracy≤0.1%+3mA
Features
- Programmable ControlSupported
- Protection FunctionsIncludes over-voltage and over-current protection
- Display InterfaceDigital display
- Communication InterfaceUSB/RS-232
- Remote ControlSupported
Attributes
- Dimensions270 × 126 × 156 mm
- WeightApproximately 5kg
- Operating Environment0 ~ 40℃, relative humidity <80%
- Cooling SystemFan cooling
