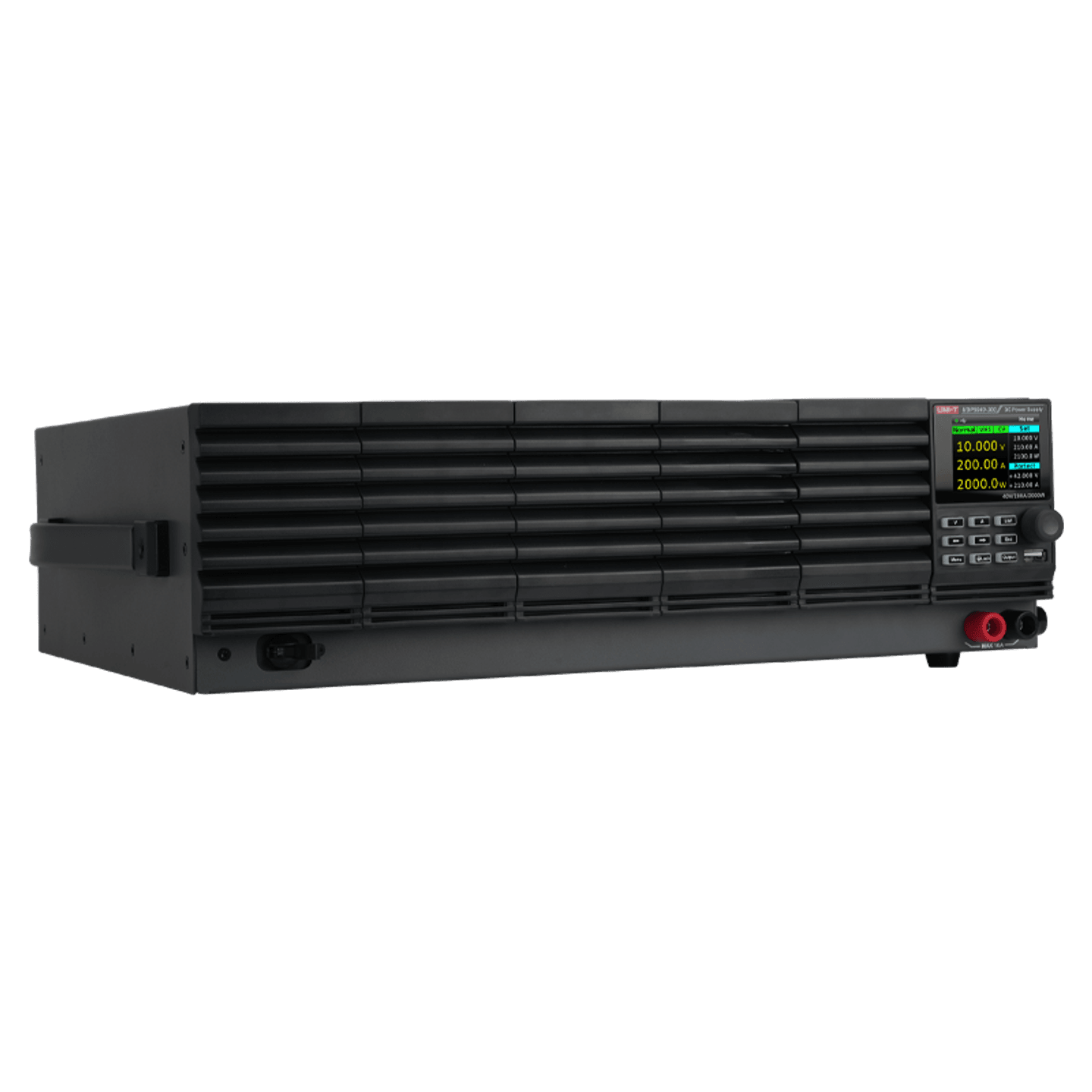

UDP5000 Series 400W–2000W Wide-Range Programmable Switching DC Power Supply
Brand
UNI-T
|
Model
UDP5000
|
🇨🇳 China
A 20-model single-channel wide-range programmable switching DC power supply series rated from 400W to 2000W, with series outputs up to 800V and 200A.
Out of Stock
Views: 14
Description
The UDP5000 Series is a single-channel programmable switching DC power supply for R&D validation, production testing, and high-power source applications. Twenty models combine 400W, 800W, 1200W, and 2000W power ratings with 40V, 80V, 160V, 250V, and 800V voltage classes and a wide-range power ratio up to 4.0. The series supports series/parallel expansion, 0–300Ω adjustable internal resistance, voltage/current slew-rate control, CC/CV priority modes, and remote operation from a computer or web interface over USB or LAN.
Specifications
- Thermocouple TypeSwitching
- Output channels1
- Rated power classes400W / 800W / 1200W / 2000W
- Rated voltage classes40V / 80V / 160V / 250V / 800V
- Series output voltage range0–800V
- Series output current range0–200A
- Setting resolution1mV, 1mA
- Voltage Setting Accuracy0.05% + 0.05% FS
- Current Setting Accuracy0.5% + 0.1% FS
- CommunicationUSB Host, USB Device, LAN
- Power ratioUp to 4.0
- Series/parallel supportUp to 2 units in series and 4 units in parallel
- Expanded output (official feature section)Up to 1600V, 480A, 4800W
- Expanded output (official FAQ)Up to 500V, 480A, 4800W
- 400W modelsUDP5800-2, UDP5250-6, UDP5160-8, UDP5080-20, UDP5040-40
- 800W modelsUDP5800-4, UDP5250-12, UDP5160-16, UDP5080-40, UDP5040-80
- 1200W modelsUDP5800-6, UDP5250-18, UDP5160-24, UDP5080-60, UDP5040-120
- 2000W modelsUDP5800-10, UDP5250-30, UDP5160-40, UDP5080-100, UDP5040-200
Features
- Wide-range outputA wider voltage and current range at the same power, with a power ratio up to 4.0
- Series/parallel operationSupports up to 2 units in series and 4 units in parallel for rapid output expansion
- Adjustable internal resistance0–300Ω adjustment for simulating the internal resistance of different batteries
- Adjustable slew rateAdjustable output-voltage and output-current slew rates
- CC/CV priority modesCV priority supports fast voltage rise; CC priority improves current overshoot
- List and delayerCan measure external voltage for flexible test applications
- Remote controlRemote power-supply control from a host computer or the web
Attributes
- Series size20 models
- Optional test leadsUT-L0615-OO, UT-L0110-BU, UT-L0312-UU, UT-L0320-UU, UT-L0110-BB, UTE-L16C
- Supported softwareInstrument Application and UNI-T SDK
- Official documentationData sheet, QuickStart Guide, User Manual, and Programming Manual
