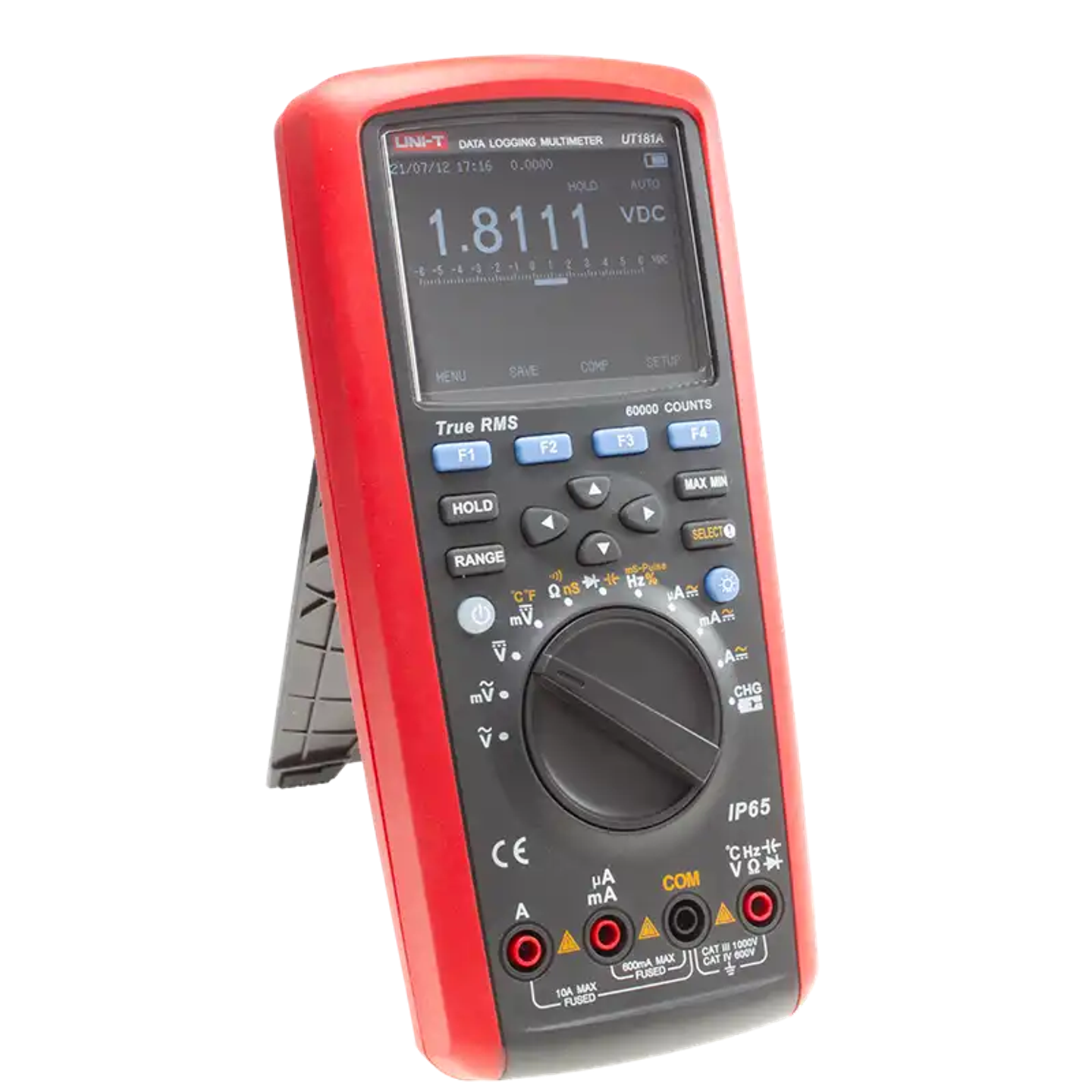

Digital Multimeter
Brand
UNI-T
|
Model
UT-181A
|
🇨🇳 China
The UT-181A offers precise measurement capabilities, including:
- True RMS measurement
- Manual and automatic measurement modes
- 20,000 data logging capability
- Frequency range of 45Hz to 100kHz
- Diode testing function
- Auto-ranging and continuity testing
- Max/Min value display
- Backlight display with three brightness levels
Price
NT$ 8,925
Out of Stock
Views: 23
Description

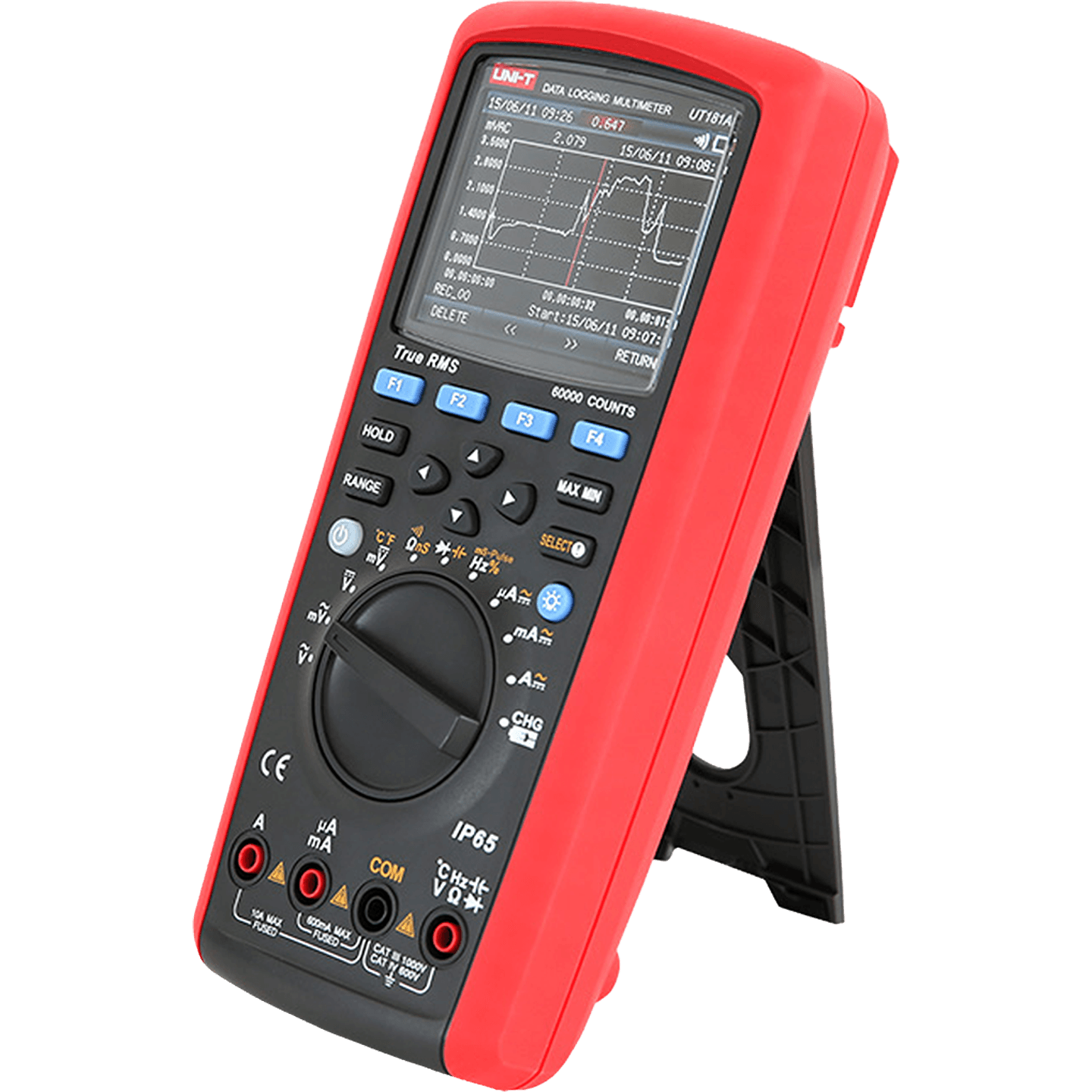

The UT-181A is a high-precision digital multimeter with a 60,000-count display, capable of accurately measuring various parameters including voltage, current, resistance, and capacitance. Its user-friendly operation and comprehensive functions make it suitable for beginners and professionals alike in circuit and electrical equipment maintenance, making it an ideal choice for laboratories and industrial settings.
Specifications
- 顯示位數60,000 位數
- 直流電壓60m / 600m / 6 / 60 / 600 / 1,000 V ±(0.025%+5)
- 直流電流600μ / 6000μ / 60m / 600m /10 A ±(0.08%+20)
- 交流電壓60m / 600m / 6 / 60 / 600 / 1,000 V ±(4%+40)@20K to 100KHz
- 交流電流600μ / 6000μ / 60m / 600m / 10 A ±(1.2%+40)
- 電阻600 /6K / 60K / 600K / 6M / 60M Ω ±(0.05%+2)
- 電容6n / 60n / 600n / 6μ / 60μ / 600μ / 6m /60m F ±(2%+5)
- 頻率60 / 600 / 6K / 60K / 600K / 6M / 60M Hz ±(0.01%+5)
- 佔空比10 ~ 90%(10 ~ 2KHz)±(1% + 30)
- 脈衝寬度0.001ms ~ 250ms ±(1.2%+30)
- 工作溫度-40 ~ 1,000°C (-40 ~ 1,832 °F) ±(2%+30 °C)
Features
- 真有效值O
- 手動及自動O
- 資料記錄20,000 筆
- 頻率45Hz~100kHz
- 二極體測試3.0000V PN(0.5~0.8)
- 自動換檔O
- 導通測試低於 10.00Ω
- 最大/最小值O
- 背光顯示3段亮度
Attributes
- Operating Temperature-20 to 50°C / < 75%RH
- Storage Temperature-30 to 60°C / lower than 75%RH without dew
- Elevation Limitation< 2,000 meters
- Power Supply7.4V Lithium Battery(2200mAh)
- Dimensions225 x 100 x 60 mm
- WeightApprox. 608 g (Battery including)
- AccessoryTest lead、Battery、Conversion Seat、Type-K Thermocouple probe、Cloth bag, USB cable, Manual
