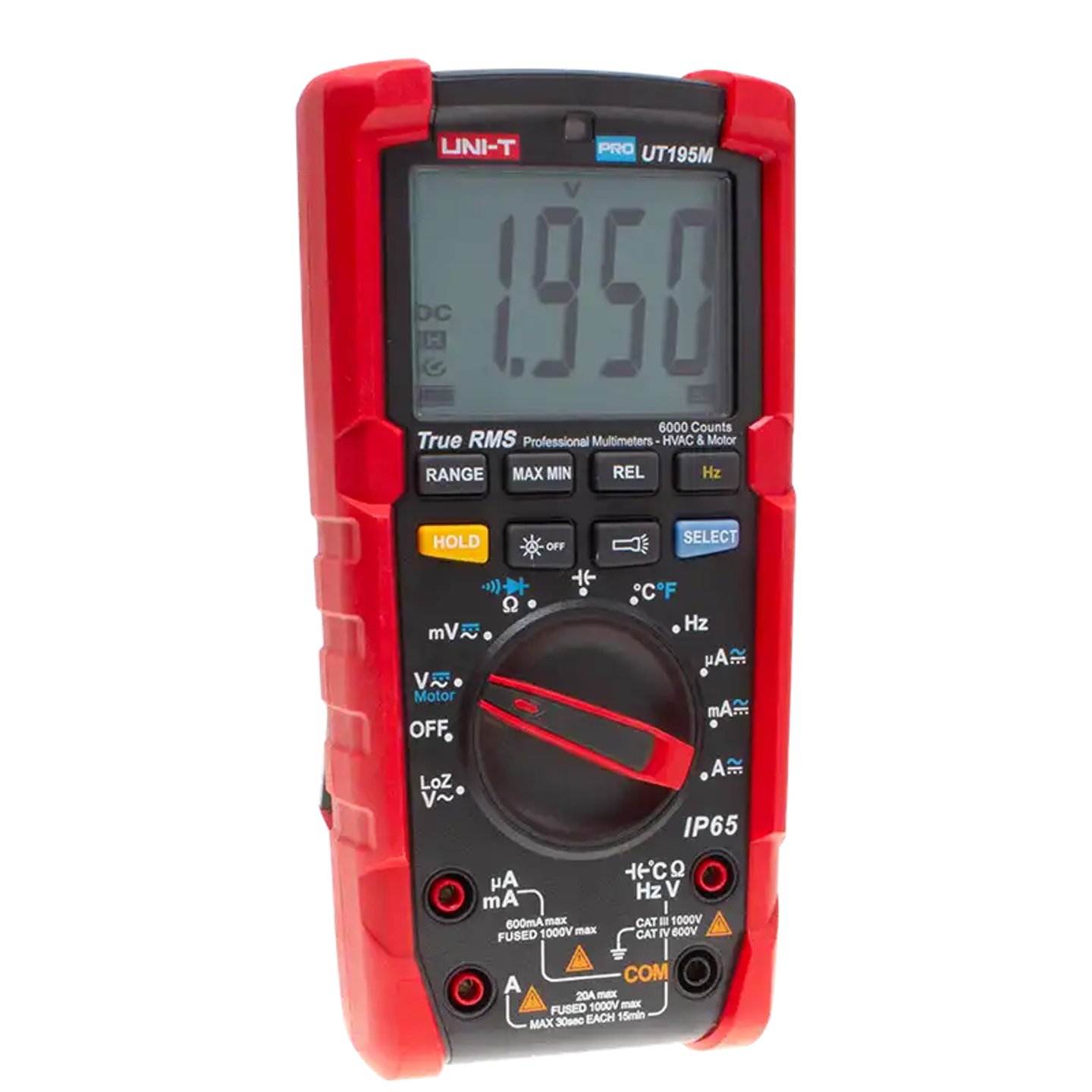

Digital Multimeter
Brand
UNI-T
|
Model
UT-195M
|
🇨🇳 China
Key features of the UT-195M include:
- IP65 waterproof and dustproof design for high durability
- Capable of measuring motor phase sequence for easy motor maintenance
- Dual-mode ADC chip with a sampling rate of up to 5 times per second
- Large LCD display for multiple functions at a glance
- Supports DC and AC voltage/current measurements
- Includes diode and continuity testing functions
- Can withstand drops from up to 2 meters, ideal for job sites
- Backlight display for easy operation at night
- True RMS measurement for accuracy and reliability
Price
NT$ 2,700
Out of Stock
Views: 1
Description
The UT-195M is a well-designed digital multimeter featuring an IP65 waterproof rating, ensuring stable operation even in humid or harsh environments. This multimeter is not only waterproof but also dustproof and drop-resistant, making it suitable for various industrial and home applications. Its large screen display is clear and easy to read, and it can perform motor phase sequence measurements and measurements under variable frequency voltage conditions, making it an ideal choice for a wide range of users.
Specifications
- 顯示位數6,000 位數
- 直流電壓600m / 6 / 60 / 600 / 1,000 V
- 直流電流600μ / 6000μ / 60m / 600m / 6 / 20 A
- 交流電壓600m / 6 / 60 / 600 / 750 V
- 低阻抗(LoZ)600 V
- 相序(MOTOR)600.0 V
- 交流電流600μ / 6000μ / 60m / 600m / 6 / 20 A
- 電阻600 /6K / 60K / 600K / 6M / 60M Ω
- 電容6n / 60n / 600n / 6μ / 60μ / 600μ / 6m /60m F
- 頻率600 ~ 40M Hz
- 工作溫度-40～1,000°C (-40～1,832 °F)
Features
- 真有效值✓
- 手動及自動✓
- 頻率45Hz~1kHz
- 二極體測試3.0V PN(0.5~0.8 V)
- 導通測試低於 10.0Ω
- 最大/最小值✓
- 承受2公尺掉落✓
- 探照燈✓
- 背光顯示✓
Attributes
- Operating Temperature0 to 40°C / < 75%RH
- Storage Temperature-10~50°C / lower than 75%RH without dew
- Elevation Limitation< 2,000 meters
- Power Supply9V Battery(6F22)
- Dimensions195 x 95 x 58 mm
- WeightApprox. 473 g (Battery including)
- AccessoryTest lead、Battery、Conversion Seat、Cloth bag, Manual
