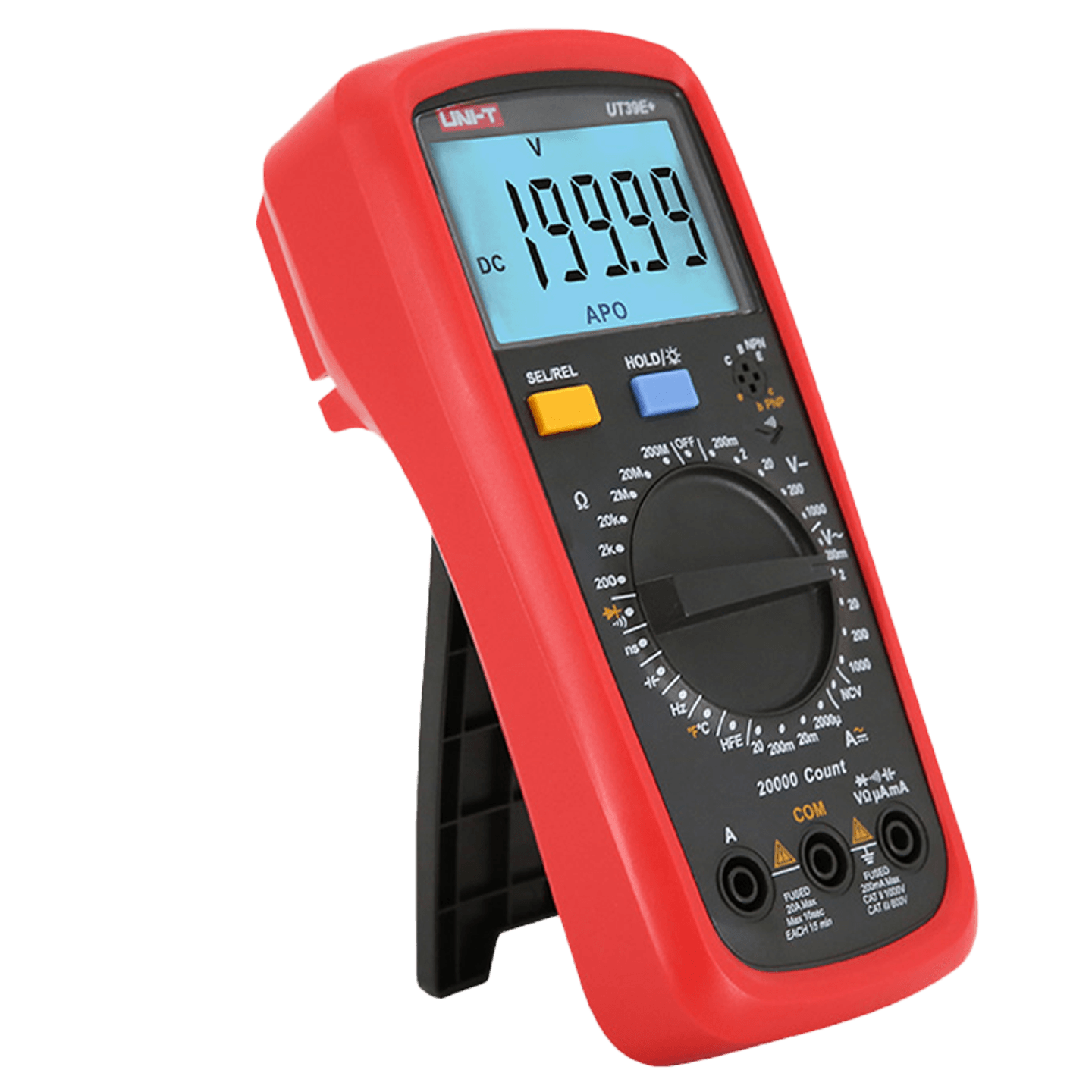

20,000 Count meter(hFE/20A)
Brand
UNI-T
|
Model
UT-39E+
|
🇨🇳 China
• 4½ digit display with a maximum of 19,999 counts
• Measures DC voltage, DC current, AC voltage, and AC current
• Includes resistance, capacitance, frequency, and temperature measurement functions
• NCV sensing for enhanced safety
• Suitable for students and electronic engineers
Price
NT$ 1,350
Out of Stock
Views: 585
Description
The UT-39E+ is a 4½ digit multifunction meter from UNI-T, featuring a display count of up to 19,999. With a built-in NCV (Non-Contact Voltage) sensing function, it enhances operational safety. This meter supports various measurement capabilities including voltage, current, resistance, capacitance, frequency, and temperature, making it ideal for academic, engineering, and general maintenance applications.
Specifications
- DC Voltage200m / 2 / 20 / 200 / 1,000 V ±(0.05%+3)
- DC Current2,000u / 20m / 200m / 2 / 20 A ±(0.5%+5)
- AC Voltage200m / 2 / 20 / 200 / 1,000 V ±(0.5%+10)
- AC Current2,000u / 20m / 200m / 2 / 20 A ±(0.8%+10)
- Resistance200 / 2K / 20k / 2M / 20M / 200M Ω ±(0.3%+2)
- Capacitance20n / 200n / 2μ / 20μ / 200μ / 2,000μ F ±(5%+20)
- Frequency0.00 ~ 2.0000M Hz ±(0.1%+3)
- (°C/°F)-40 ~ 1,000°C (-40 ~ 1,832°F) ±(1%+5)°C
- (nS)0.1 ~ 100nS ±(1%+3)
- Safety Rating1 ~ 1,000 β
Features
- transistormeasurementNPN/PNP
- SpecificationCAT II 1000V, CAT III 600V
- (NCV)EFLo / EFHI
Attributes
- Operating Temperature-10 to 40°C / lower than 75%RH without dew
- Storage Temperature-10 to 50°C / lower than 75%RH without dew
- Altitude LimitLower than 1,000 meters
- Power Supply1.5V battery (R03) x 2
- Dimensions175 × 83 × 53 mm
- WeightApprox. 330 g (Battery including)
- AccessoriesTest lead、Temperature probe(K-Type)、Battery、Manual
