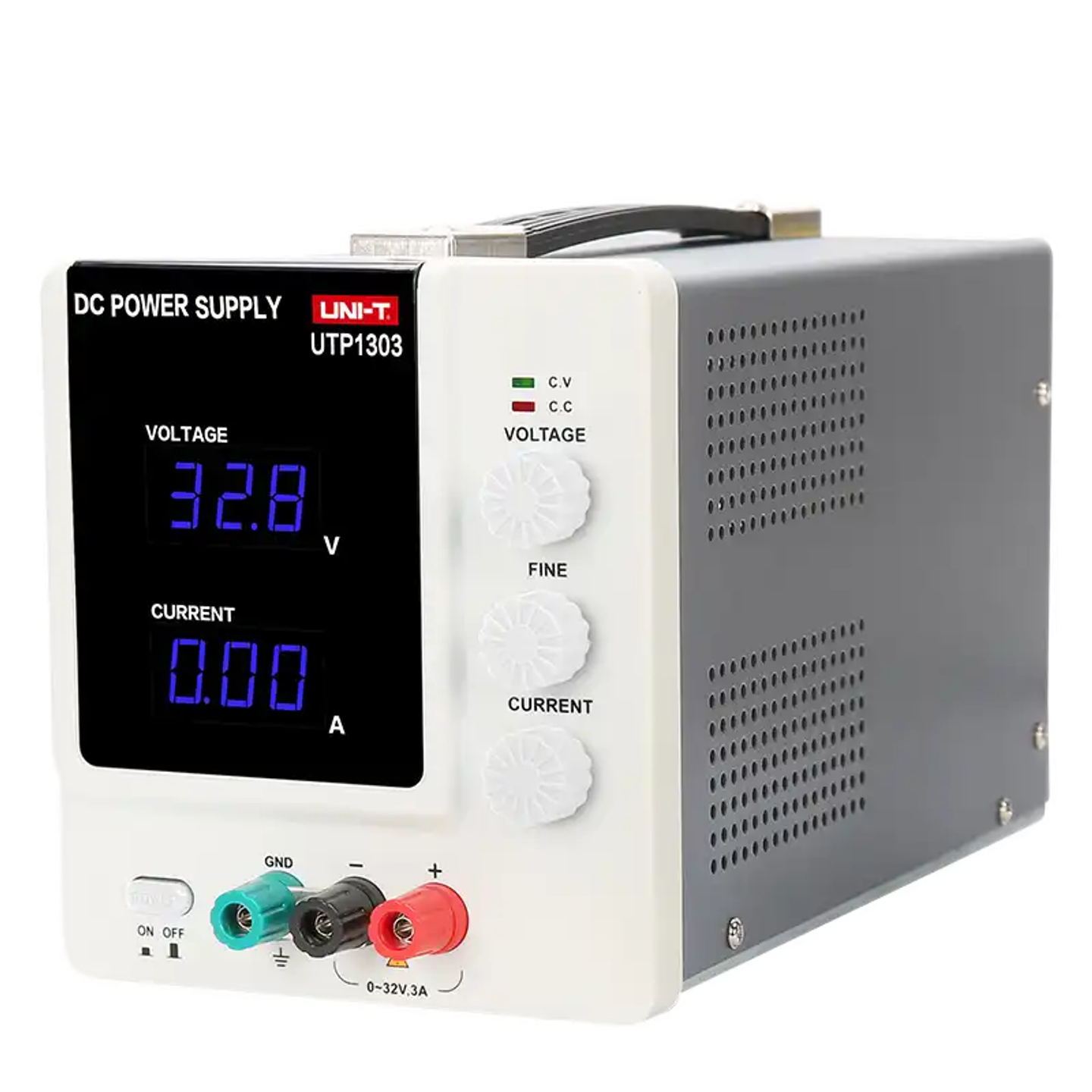

32V 3A DC Power Supply
Brand
UNI-T
|
Model
UTP-1303
|
🇨🇳 China
• Single-channel power supply, output 32V/3A
• Compact and portable design
• Reasonably priced, ideal for low variation applications
• Dual-screen display showing voltage and current simultaneously
• Constant voltage and current limiting modes ensure stable output
• Features overload and polarity reverse protection
Out of Stock
Views: 574
Description
The UTP-1303 32V 3A DC Power Supply is a single-channel power supply designed for applications requiring low variation. With an output capability of 32V/3A, it is compact, portable, and reasonably priced, making it ideal for situations that demand stable voltage and current. Whether in a laboratory or industrial setting, it provides reliable power support.
Specifications
- Output RangeCH1 0~32V/0~3A
- Interfaceindependent output
- Constant Voltage Regulation≦0.01%+3mV
- Output Voltage≦3mArms
- Current Limit Regulation Rate≦0.2% + 3mA
Features
- Channelssingle channel
- Display ModeDual display showing voltage and current simultaneously
- Operating ModeConstant voltage and current limiting modes
- Output CharacteristicsLow ripple and low noise
- Overload ProtectionOverload and reverse polarity protection
- Alarm FunctionCC and CV indicators stay lit
Attributes
- Operating Temperature0~40°C / lower than 80%RH without dew
- Storage Temperature-10~70 °C / lower than 70%RH without dew
- Altitude LimitLower than 1,000 meters
- Display3 digit LED display (dual-screen display)
- Accuracy±( 1% of rdg + 2 digits )
- Power SupplyAC 115V/230V ±10% , 50/60Hz
- Dimensions160(W) x 140(H) x 260(D) mm
- Weight5 kg
- AccessoriesPower Cable、 Test Lead
