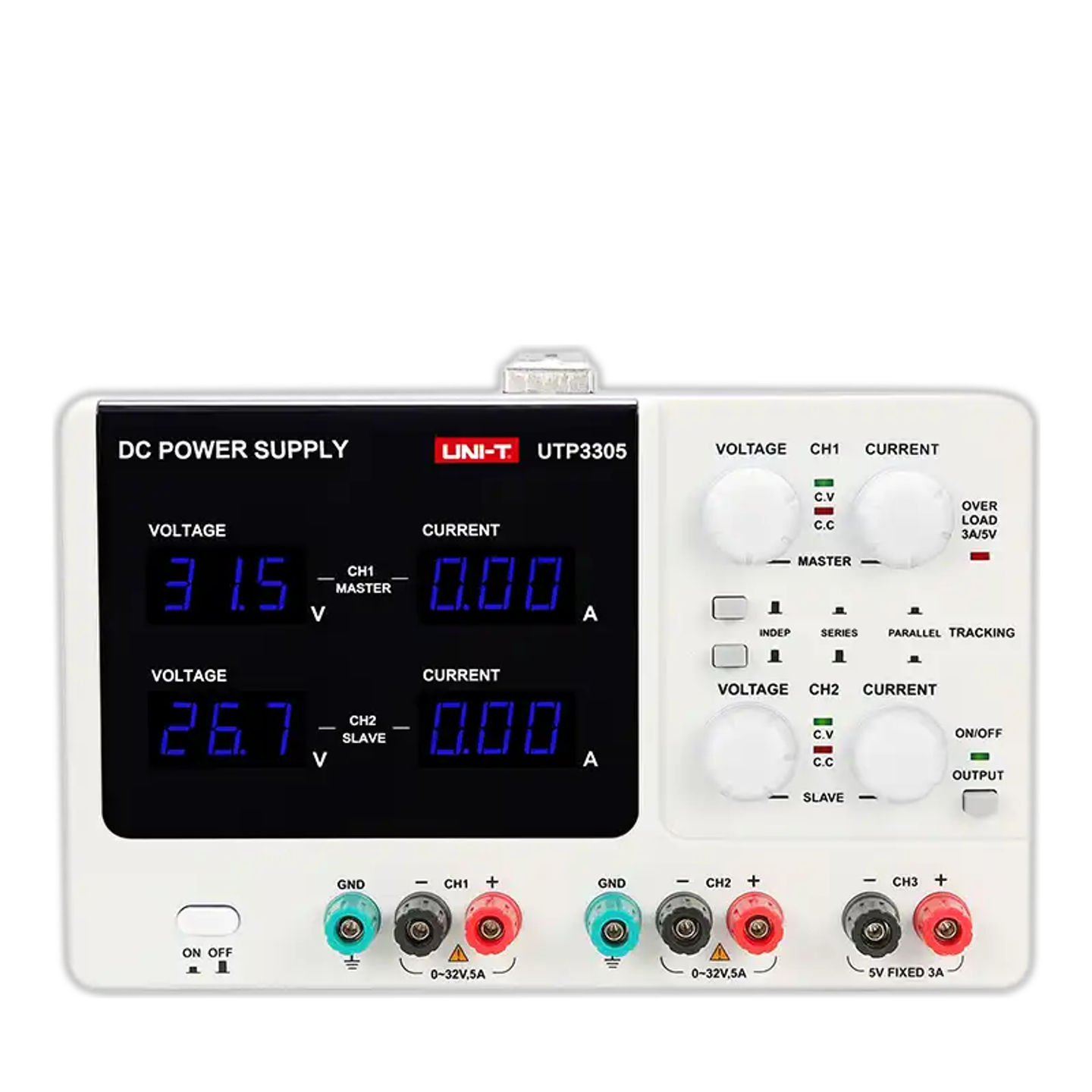

32V 5A DC power supply
Brand
UNI-T
|
Model
UTP-3305
|
🇨🇳 China
1. Three-channel design providing versatile output options.
2. CH1/CH2 output range: 0~32V / 0~5A, CH3 output range: 5V / 5A.
3. Low ripple and low noise characteristics suitable for precision testing.
4. Supports constant voltage and current limiting modes to meet different requirements.
5. Overload and reverse polarity protection ensures safe operation.
6. Dual screen display showing both voltage and current for easy monitoring.
Out of Stock
Views: 522
Description
The UTP-3305 is a high-performance 32V 5A DC power supply that features a three-channel design with low ripple and noise characteristics, making it ideal for applications demanding high voltage stability. It is equipped with overload protection and constant voltage/current functions to ensure safe and stable operation. This power supply is not only compact and portable but also offers various output modes to meet diverse testing and engineering needs.
Specifications
- Output Voltage0~32V / 0~5A
- CH3 Output Range5V / 5A
- Interface3 channels
- Constant Voltage Regulation≦0.01%+3mV
- Voltage Load Regulation Rate≦0.01% + 3mV (≦3A)
- Current Limit Regulation Rate≦0.2% + 3mA
- Current Load Regulation Rate≦0.2% + 3mA
Features
- Channels3 channels
- Display ModeDual display showing voltage and current simultaneously
- Operating ModeConstant voltage and current limiting modes
- Output CharacteristicsLow ripple and low noise
- Overload ProtectionOverload and reverse polarity protection
- Alarm FunctionCC and CV indicators stay lit
Attributes
- Operating Temperature0~40 °C / below80%RH non-condensing
- Storage Temperature-10~70 °C / below70%RH non-condensing
- Altitude Limitbelow 1,000 m
- Display3 digits LED display
- Accuracy±( 1% of rdg + 2 digits )
- Power SupplyAC 115V/230V ±10% , 50/60Hz
- Dimensions260(W) x 170(H) x 315(D) mm
- Weight10kg
- AccessoriesPower cord, test leads
