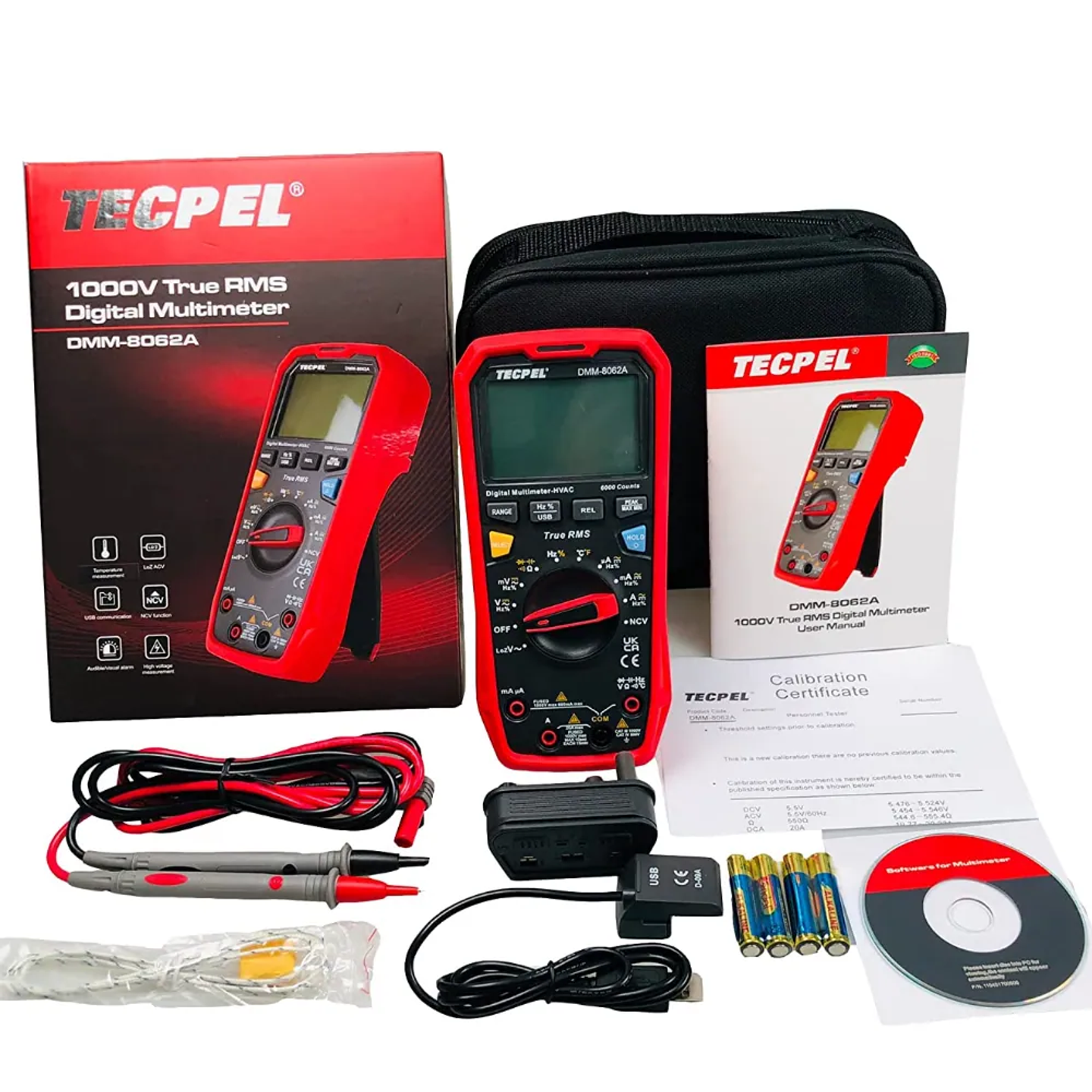

5,999-count multifunction multimeter
Brand
TECPEL
|
Model
DMM-8062A
|
🇨🇳 China
DMM-8062A Digital Multimeter — a precision true RMS measurement tool. Suitable for circuit board troubleshooting, appliance repair, scientific experiments, factory component testing, and automotive/motorcycle measurement and maintenance. It features 6000 counts and supports AC/DC measurement, resistance, diode, capacitance, and thermocouple temperature measurement functions.
1000V True RMS Digital Multimeter Features
Certifications: CE, UKCA, cETLus
● True RMS
● Data hold / backlight
● Max / Min / Relative mode
● USB communication
● Input protection
● Diode / continuity test
● NCV (audible and visual alarm)
Price
NT$ 1,980
In Stock
Views: 382
Description
The DMM-8062A handheld 6,000-count multimeter offers comprehensive functions, stable performance, and high accuracy, making it an ideal tool for circuit and electrical equipment maintenance and repair. It is also the ideal measuring instrument for a wide range of users.
The DMM-8062A adds a non-contact voltage test pen and a low matching impedance measurement mode, which resolves and ensures a lower impedance at the multimeter input terminals.
The DMM-8062A is an upgraded version of the DMM-8062, featuring a higher measurement range and accuracy, richer measurement functions, and a more advanced user interface. Therefore, the DMM-8062A is more suitable for users who need higher performance and more functionality.
Specifications
- DC Voltage60m/600m/6/60/600/1,000 V @ best ±(0.5%+1)
- DC Current600μ/6000μ/60m/600m/6/10/20 A @ best ±(1%+3)
- AC Voltage 60m/600m/6/60/600/750 V @ best ±(0.5%+3)
- AC current (DCA) 600μ/6000μ/60m/600m/6/10/20 A @ best ±(1.5%+5)
- Resistance600/6K/60K/600K/6M/60M Ω @ best ±(1%+2)
- Capacitance40n/400n/4μ/40μ/400μ/4,000μ F @ best ±(3%+5)
- Temperature Range-40 ~ 1,000°C @ best ±(1.2%+3)
- Frequency10Hz-10MHz @ best ±(1.2%+3)
Features
- Frequency45~1kHz
- Duty Cycle0.1% ~ 99.9%:
Attributes
- Operating Temperature0~40°C / lower than 70%RH without dew
- Storage Temperature-10~50°C / lower than 80%RH without dew
- Altitude LimitLower than 1,000 meters
- Power SupplyDC 9V battery X1
- Dimensions180 X 87 X 47 mm
- WeightApprox. 370g (Battery Including)
- AccessoriesTest Lead、Battery、Conversion Seat、Type-K Thermocouple Probe、USB Cable、Software、Manual
