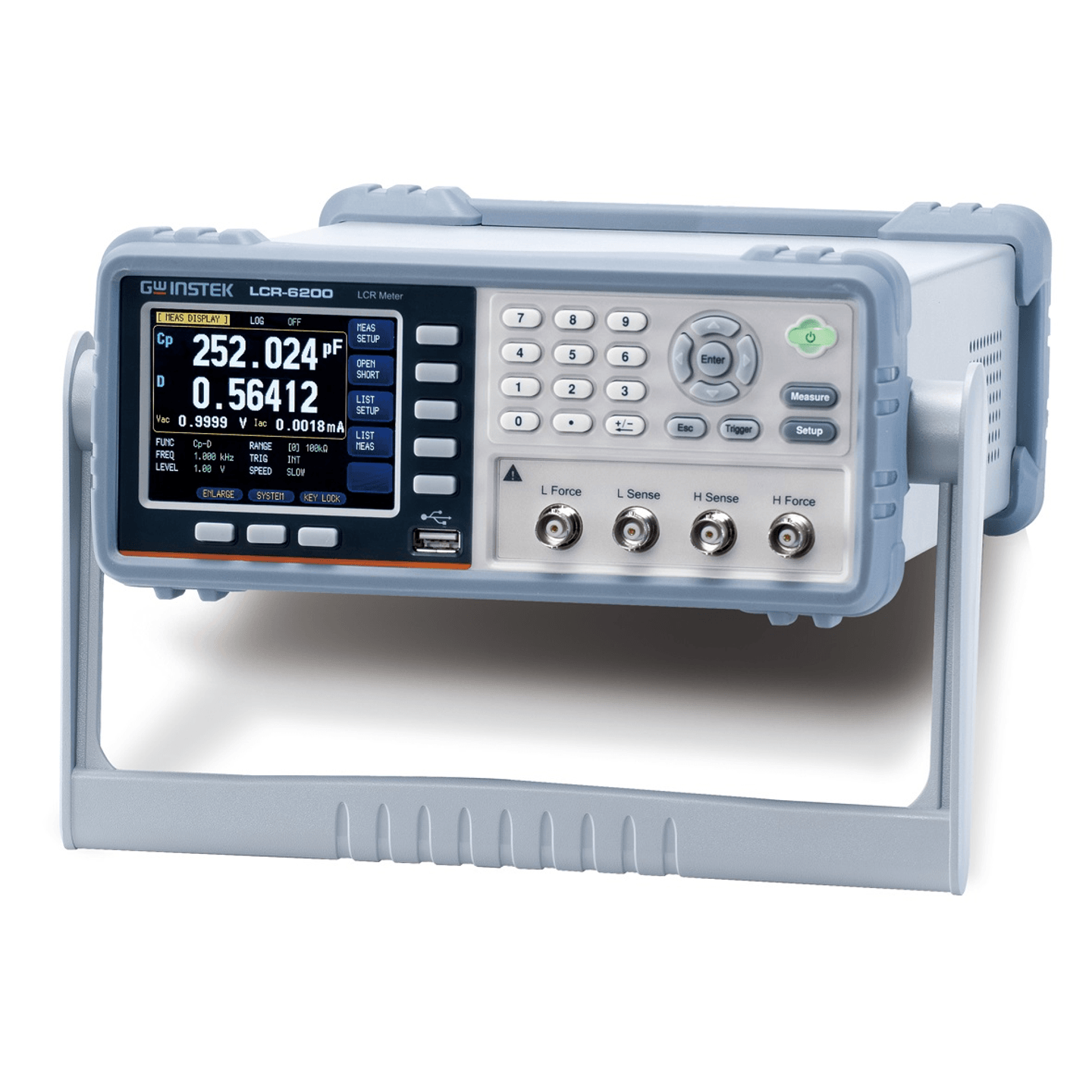

GWINSTEK LCR-6000 Benchtop LCR Meter
Brand
GWINSTEK
|
Model
LCR-6000
|
🇹🇼 Taiwan
Benchtop precision LCR meter series for component testing with multiple signal and measurement modes.
Out of Stock
Views: 375
Specifications
- display9999 digits
- Signal Output10 ~ 2K Hz
- capacitancemeasurement0.00001p ~ 9999.99 F
- inductancemeasurement0.00001μ ~ 999.999 H
- resistancemeasurement0.00001 ~ 99.9999M Ω
- measurement0.00001μ ~ 999.999 S
- Voltage Output: 100m ~ 2 V RMS(±10%) /: 10m ~ 2 V RMS(±6%)
- Current Outputstandard: 10Oμ ~ 20m A(±10%) /: 100μ ~ 20m A (±6%) @2V Max
- Specification2V, 0.066A(MAX), Output 30Ω
- Test Speed:25ms /:100ms /:333ms
- Test Voltage2V
- Source Output Impedance30Ω / 50Ω / 100Ω optional
Features
- Operating Mode,
- Trigger ModeINT、MAN、EXT、BUS
- Simultaneous MeasurementL-RDC
- LCZON / OFF
Attributes
- Operating Environment0 ~ 40°C / below75%RH non-condensing
- Storage Environment5 ~ 40°C / below85%RH non-condensing
- Warm-up Time60min
- Power SupplyAC 100V ~ 240V, 50/60H
- Power ConsumptionMax 15W
- Dimensions265(W) x 107(H) x 312(D) mm
- Weight3600g
