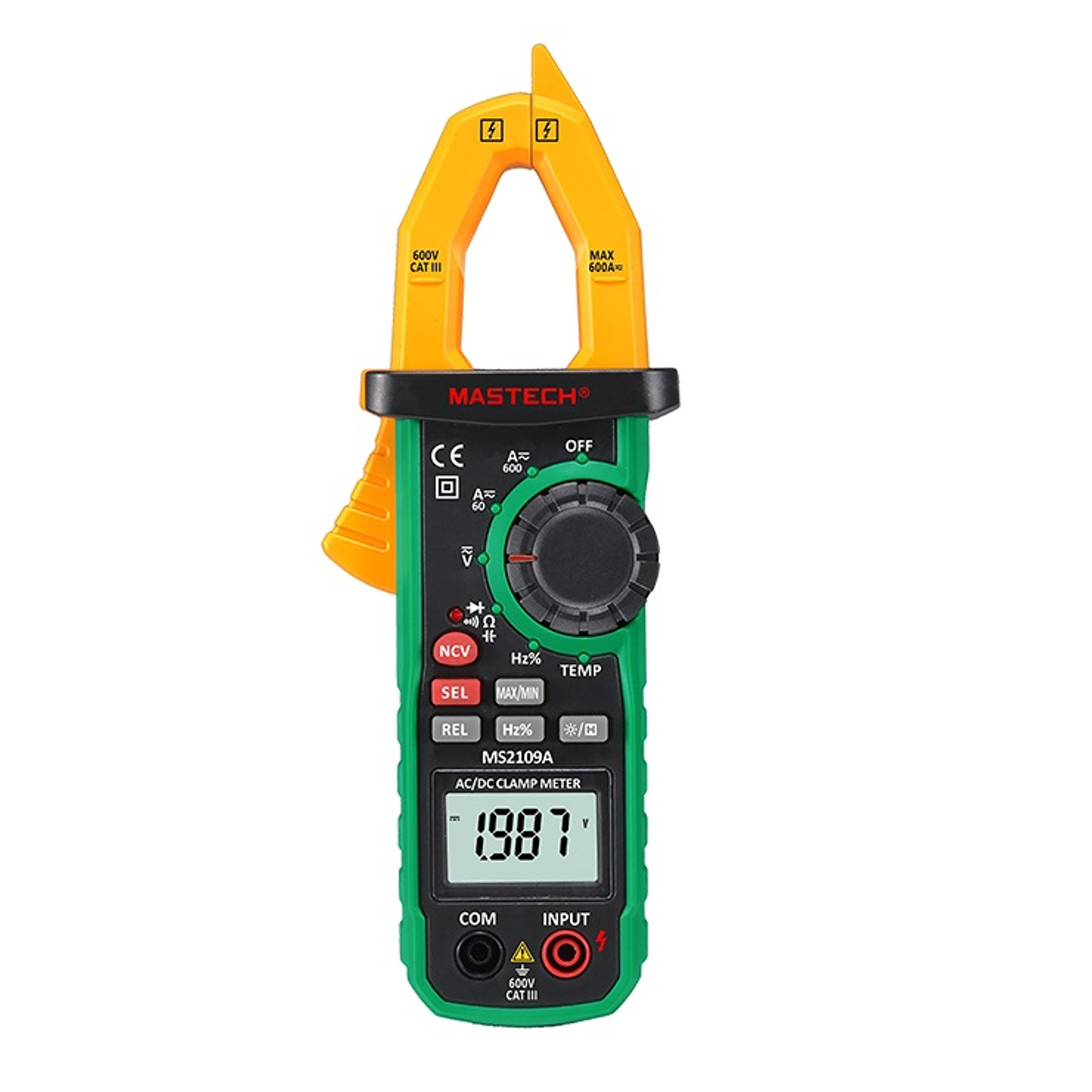

MS2109A 600A AC/DC Digital Clamp Meter
Brand
MASTECH
|
Model
MS2109A
|
🇨🇳 China
MS2109A is a high-precision, multifunctional AC/DC clamp meter featuring a 6,000-count display that delivers exceptional resolution and accuracy, specifically designed for professionals and technical users.
Equipped with a 26mm clamp opening, it effortlessly measures various cables. The intelligent auto-ranging and energy-saving auto shut-off enhance usability, while the safe non-contact voltage detection and versatile relative measurement functions provide added flexibility.
Additionally, the MS2109A includes a 2.7V diode open-circuit voltage, a sensitive continuity buzzer, data hold, and max/min value recording for streamlined data analysis. With its reliability and convenience, the MS2109A is the ideal tool for all your professional measurement needs.
Price
NT$ 2,415
Out of Stock
Views: 16
Description
The MS2109A is a high-precision, multifunction AC/DC clamp meter featuring a 6,000-digit display that delivers exceptional measurement resolution and accuracy.
Equipped with backlighting and a work light, it allows users to operate effectively in dim environments. This professional-grade clamp meter is renowned for its reliability and convenience, making it an essential tool for demanding applications.
Specifications
- Accuracy6,000 Digits
- Jaw OpeningФ26mm/1.0”
- AC Current60/ 600 A ±(2.5%+6)
- DC Current60/ 600 A ±(3.0%+6)
- DC Voltage600m/ 6/ 60/ 600 V <±(0.7%+2)
- AC Voltage6/ 60 V ±(0.8%+3) /600 V ±(1.0%+4)
- Resistance600/ 6k/ 60k/ 600 Ω ±(0.8%+3) 6M/ 60M Ω ±(1.2%+3)
- Capacitance40n/ 400n/ 4µ/ 40µ/ 400µ/ 4,000µ F ±(4.0%+5)
- Temperature(°C)-20 ~ 0 ℃ ±(3.0%+4) / 1 ~ 400 ℃ ±(1.0%+3)/ 401 ~ 1,000 ℃ ±(2.0%)
- Temperature(°F)-4 ~ 32 ℉ ±(3.0%+7)/ 33 ~ 752 ℉ ±(1.0%+5)/ 753 ~ 1,832 ℉ ±(2.0%)
- Frequency10/ 100/ 1k/ 10k Hz ±(0.5% + 3)
- ResolutionDC: 0.1mV / AC: 0.001V
- (Hz/Duty)100k/ 1M/ 10M Hz ±(0.5%+3)
- duty cycle0.1 ~ 99.9 % ±(3.0%+5)
Features
- Diode Test1mV
- ContinuityLower than 50 Ω
- Low Battery IndicatorLower than2.6V
- NCVIf voltage is more than ac 90V, NCV Indicator will flash and the buzzer will sound at regulat intervals.
- Input Impedance10MΩ
Attributes
- Operating Temperature0 to 40°C / lower than 85 %RH without dew。
- Storage Temperature-20 to 60°C / lower than 75 %RH without dew。
- Elevation LimitationLower than 2,000 meters
- Power SupplyDC 3×1.5V AAA battery
- Dimensions218mm×78mm×35mm/8.9"×3.1"×1.4"
- Weight239克/0.53磅
- AccessoryTest Lead、 K type thermocouple bead probe、 Battery 、 Carrying Bag、Manual
- CertificationCE / ETL / RoHS
- Safety RatingCAT III 600V
