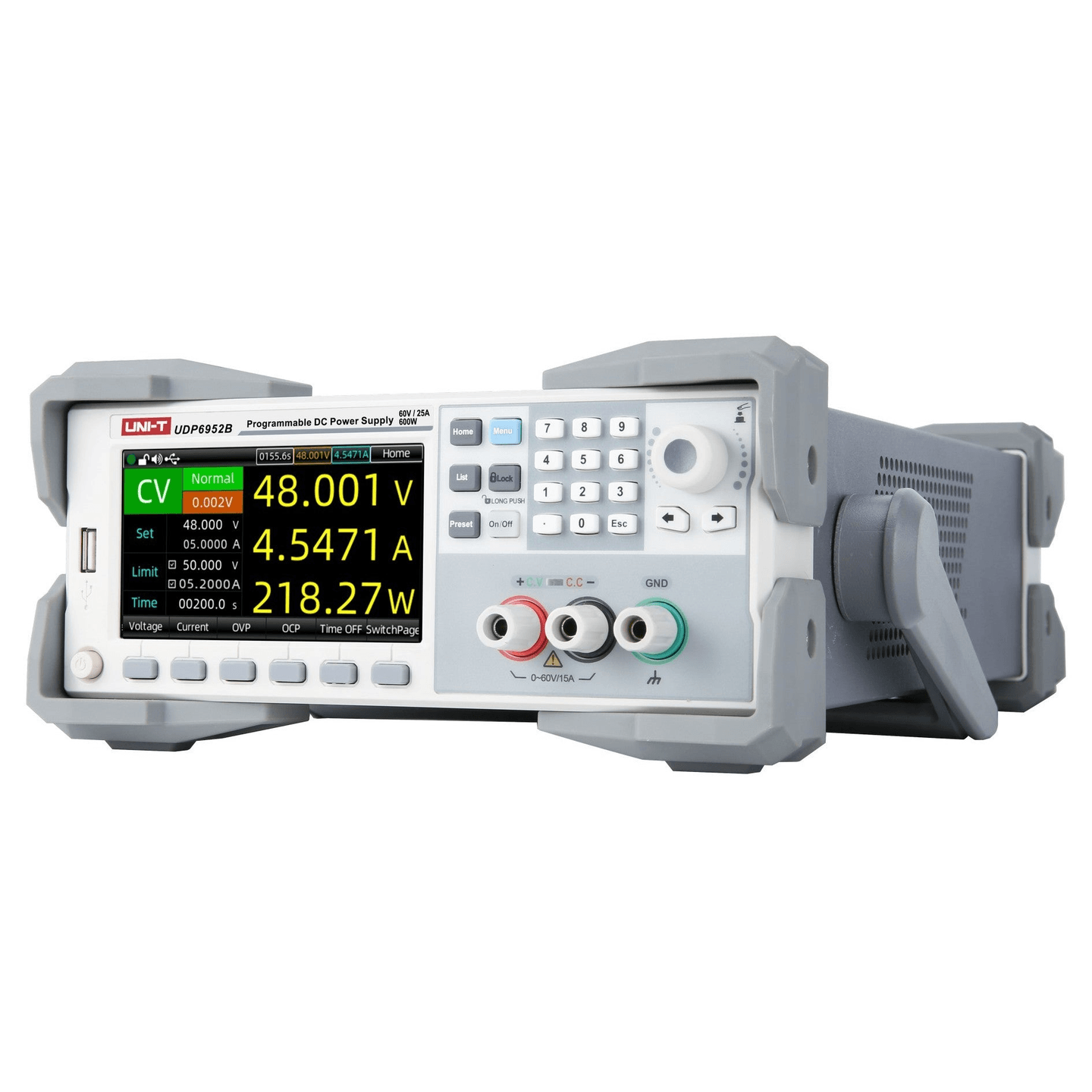

UDP6952B 600W 60V/25A Programmable Switching DC Power Supply
Brand
UNI-T
|
Model
UDP6952B
|
🇨🇳 China
A single-channel 600W high-current auto-ranging programmable DC supply with 0–60V/0–25A output, 1mV/0.1mA setting resolution, built-in DVM, remote sense, and comprehensive remote interfaces.
Downloads
Out of Stock
Views: 13
Description
The UDP6952B is the UDP6900 family’s 600W, 60V/25A high-current auto-ranging programmable switching DC power supply. It delivers points such as 60V/10A and 24V/25A inside its power envelope for 48V batteries, chargers, motor drives, DC-DC converters, and automated production tests. A 4½-digit DVM, remote sense, List/delayer, and independent slew control are built in, together with USB, RS-232, RS-485, LAN, analog I/O, SCPI, Multi-SCPI, Modbus RTU, and browser-based control.
Specifications
- Supply typeProgrammable switching DC power supply
- Output channels1
- Rated power600W
- Output Voltage0–60V
- Output Current0–25A
- Auto-range operating points60V/10A or 24V/25A, plus other combinations inside the 600W envelope
- Load regulation (voltage)≤0.01% + 30mV
- Load regulation (current)≤0.1% + 10mA
- Line regulation (voltage)≤0.01% + 30mV
- Line regulation (current)≤0.1% + 10mA
- Setting resolutionVoltage 1mV; current 0.1mA
- Readback resolutionVoltage 0.1mV (<10V) / 1mV (>10V); current 0.1mA (<10A) / 1mA (>10A)
- Setting accuracyVoltage ≤0.03% + 5mV; current ≤0.1% + 25mA (25°C ±5°C)
- Readback accuracyVoltage ≤0.03% + 5mV; current ≤0.1% + 25mA
- Ripple and noiseVoltage ≤20mVp-p; current ≤15mArms
- Remote-sense compensation1V
- Built-in DVM4½ digits; 0.001–65.000V DC range on UDP6952B
- Display4.3-inch full-color LCD
- List/delayer capacityUp to 512 voltage/current/time groups
- Preset storage18 × 8 groups
- CommunicationUSB Device, USB Host, RS-232, RS-485, LAN, analog I/O, and remote sense
Features
- 600W auto-ranging outputFlexible combinations inside the 0–60V/0–25A and 600W power envelope
- Independent slew controlVSR and ISR modes independently control voltage and current rise/fall rates
- List/delayer automationUp to 512 voltage/current/time/output-state groups stored in Flash or USB
- Remote senseFour-wire sensing compensates test-lead voltage drop with 1V headroom
- Built-in 4½-digit DVMMonitors a second DUT voltage point over 0.001–65.000V DC
- OVP/OCP protectionConfigurable voltage/current thresholds latch the output off on a fault
- Multi-protocol remote controlSCPI, Multi-SCPI, Modbus RTU, and LAN web-server control
- RS-485 multi-machine operationMaster/slave control for multi-unit series or parallel configurations
- Real-time waveform displayThe 4.3-inch color LCD plots voltage, current, power, and trends
- 144 preset memories18 × 8 preset locations recall frequently used test settings
Attributes
- Dimensions (W×H×D)215 × 88 × 373.7 mm
- Weight (source difference)Global data sheet/visible US spec: 4.5 kg; US JSON-LD: 5.5 kg; store shipping weight: 6.2 kg
- AC input (source difference)Global manual: 100–240V; official US rear-view image: 90–242V, 50/60Hz
- Rated environment0–40°C (rated-value condition in the official data sheet)
- Control protocolsSCPI, Multi-SCPI, Modbus RTU, and VXI/web
- Sequence file formats.lst.csv and .dly.csv; spreadsheet-editable
- AccessoriesUS page: power cord, English download guide, multilingual safety manual, and calibration report (COC); output and sense leads are optional
- Test leadsOutput and sense leads are optional; listed models include UT-L0615-OO, UT-L0110-BU, UT-L0312-UU, UT-L0320-UU, UT-L0110-BB, and UTE-L16C
- CertificationCE; the US page also marks RoHS
- Warranty (regional difference)US page: 3+2 years with registration; actual coverage follows TECPEL quotation/sales terms
- Official-image noteOfficial US images show a UDP6952B 60V/25A/600W top badge, while the front output-terminal silkscreen still reads 0–60V/15A
- Technical-source noteModel-specific values follow the global UDP6900 V1.2 data sheet and official US specifications; source differences for weight, AC input, and image silkscreen remain separately labelled
- Supported software/firmwareInstrument Application, UNI-T SDK, and UDP6900 Firmware V1.01.0301 (2024-04-16)
- Official documentsUDP6900 V1.2 data sheet, English/German user manuals, and SCPI/Modbus programming manuals
