UDP6953B 600W 150V/10A Programmable Switching DC Power Supply

Brand UNI-T | Model UDP6953B | 🇨🇳 China

600W 150V 10A 1-Channel Programmable Switching DC Power Supply Auto-Range DVM RS-485 LAN SCPI Modbus RTU

A single-channel 600W auto-ranging programmable DC supply with 0–150V/0–10A output, 1mV/0.1mA resolution, built-in DVM, remote sense, and comprehensive remote interfaces.

Downloads

UDP6900 Series Datasheet V1.2 V1.2 (2024-09-19)1 UDP6900 Series User Manual V1.1 V1.1 (2024-10-25)UDP6900 Series User Manual (German) V1.0 V1.0 (2024-10-28)UDP6900 Series SCPI Programming Manual V1.1 V1.1 (2024-10-25)UDP6900 Series Modbus Programming Manual V1.1 V1.1 (2024-10-25)

UDP6900 Series Firmware V1.01.0301 V1.01.0301 (2024-04-16)

Out of Stock

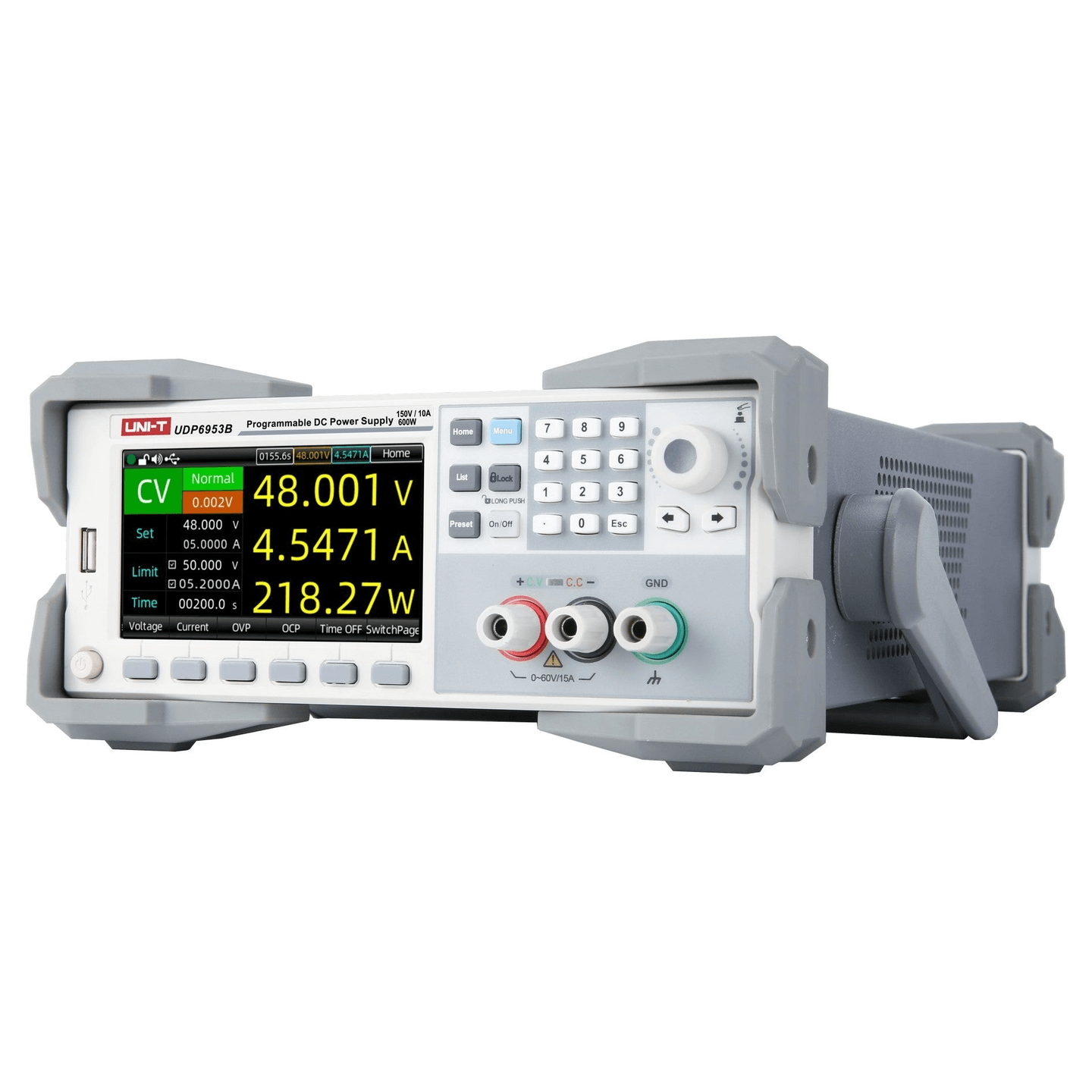

The UDP6953B is the UDP6900 family’s 600W, 150V-class auto-ranging programmable switching DC power supply. It delivers operating points such as 150V/4A and 60V/10A within its power envelope for power modules, batteries, sensors, SiC/GaN circuits, and automated production tests. A 4½-digit DVM, remote sense, List/delayer, and independent slew control are built in, together with USB, RS-232, RS-485, LAN, analog I/O, SCPI, Multi-SCPI, Modbus RTU, and browser-based control.

Supply typeProgrammable switching DC power supply
Output channels1
Rated power600W
Output Voltage0–150V
Output Current0–10A
Auto-range operating points150V/4A or 60V/10A, plus other combinations inside the 600W envelope
Load regulation (voltage)≤0.01% + 25mV
Load regulation (current, data sheet/overview)≤0.5% + 10mA
Load regulation (current, US Specs tab)≤0.05% + 10mA
Line regulation (voltage)≤0.01% + 25mV
Line regulation (current, data sheet/overview)≤0.5% + 10mA
Line regulation (current, US Specs tab)≤0.05% + 10mA
Setting resolutionVoltage 1mV; current 0.1mA
Readback resolutionVoltage 1mV (<100V) / 10mV (>100V); current 0.1mA
Setting accuracyVoltage ≤0.03% + 20mV; current ≤0.1% + 25mA (25°C ±5°C)
Readback accuracyVoltage ≤0.03% + 20mV; current ≤0.1% + 25mA
Ripple and noiseVoltage ≤50mVp-p; current ≤15mArms
Remote-sense compensation1V
Built-in DVM4½ digits; up to 160V DC on UDP6953B
Display4.3-inch full-color LCD
List/delayer capacityUp to 512 voltage/current/time groups
Preset storage18 × 8 groups
CommunicationUSB Device, USB Host, RS-232, RS-485, LAN, analog I/O, and remote sense

600W auto-ranging outputFlexible combinations inside the 0–150V/0–10A and 600W power envelope
Independent slew controlVSR and ISR modes independently control voltage and current rise/fall rates
List/delayer automationUp to 512 voltage/current/time/output-state groups stored in Flash or USB
Remote senseFour-wire sensing compensates test-lead voltage drop with 1V headroom
Built-in 4½-digit DVMMonitors a second DUT voltage point, up to 160V DC on UDP6953B
OVP/OCP protectionConfigurable voltage/current thresholds latch the output off on a fault
Multi-protocol remote controlSCPI, Multi-SCPI, Modbus RTU, and LAN web-server control
RS-485 multi-machine operationMaster/slave control for multi-unit series or parallel configurations
Real-time waveform displayThe 4.3-inch color LCD plots voltage, current, power, and trends
144 preset memories18 × 8 preset locations recall frequently used test settings

Dimensions (W×H×D)215 × 88 × 373.7 mm
Weight (source difference)Global data sheet/visible US spec: 4.5 kg; US JSON-LD: 5.5 kg; store shipping weight: 6.2 kg
AC input (source difference)Global manual: 100–240V; official US rear-view image: 90–242V, 50/60Hz
Rated environment0–40°C (rated-value condition in the official data sheet)
Control protocolsSCPI, Multi-SCPI, Modbus RTU, and VXI/web
Sequence file formats.lst.csv and .dly.csv; spreadsheet-editable
AccessoriesUS page: regional power cord, 1.5m USB 2.0 A-to-B cable, high-current terminal blocks, multi-function interface accessories, calibration certificate, and English manual
Test leadsOutput and sense leads are optional; listed models include UT-L0615-OO, UT-L0110-BU, UT-L0312-UU, UT-L0320-UU, UT-L0110-BB, and UTE-L16C
CertificationCE; the US page also marks RoHS
Warranty (regional difference)US page: 3+2 years with registration; actual coverage follows TECPEL quotation/sales terms
Official-image noteOfficial US images show a UDP6953B 150V/10A/600W top badge, while the front output-terminal silkscreen still reads 0–60V/15A
Technical-source noteModel-specific values follow the global UDP6900 V1.2 data sheet and official model table; conflicting source values remain separately labelled
Supported software/firmwareInstrument Application, UNI-T SDK, and UDP6900 Firmware V1.01.0301 (2024-04-16)
Official documentsUDP6900 V1.2 data sheet, English/German user manuals, and SCPI/Modbus programming manuals
