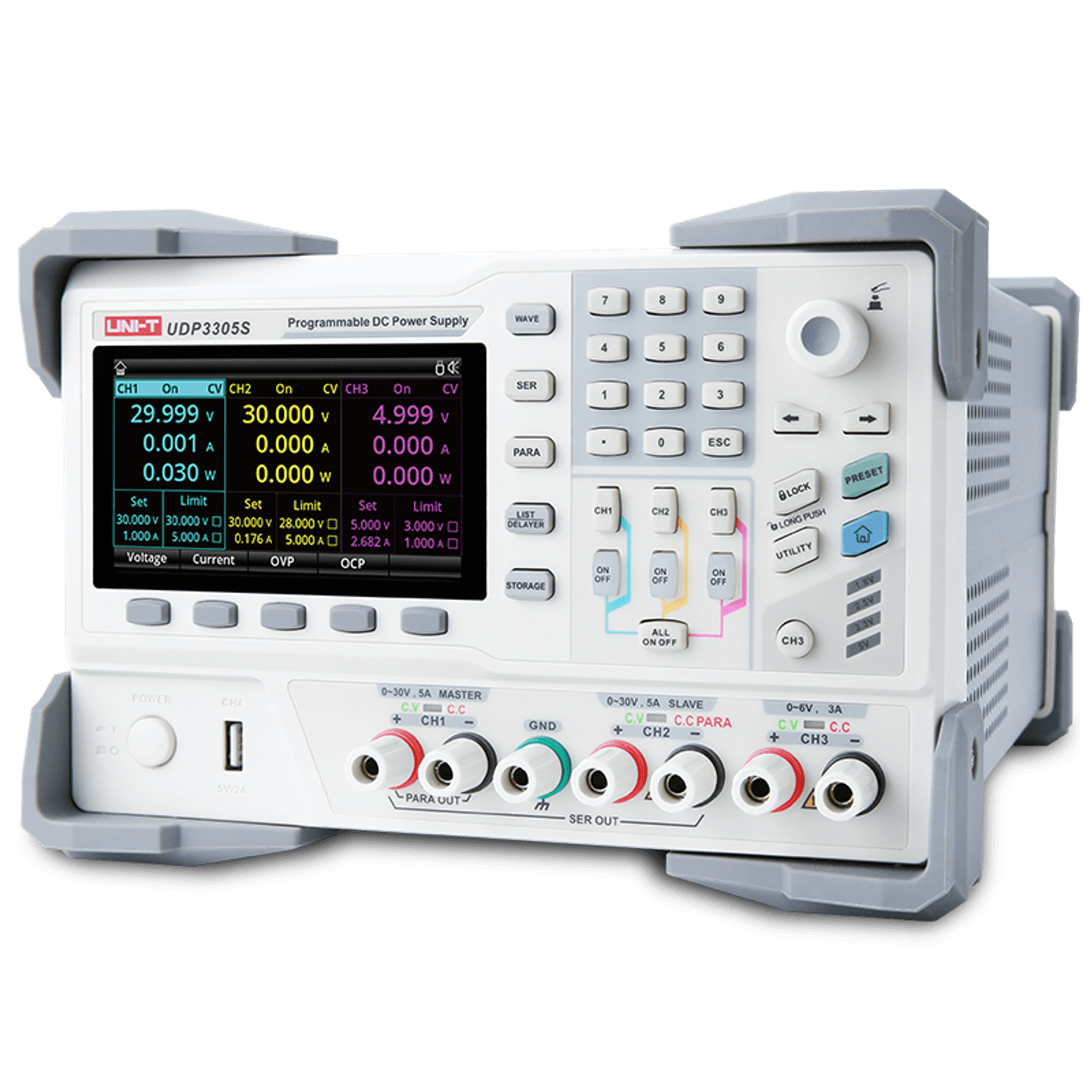

UDP3000S Series 328W 4-Channel Programmable Linear DC Power Supply
Brand
UNI-T
|
Model
UDP3000S
|
🇨🇳 China
A 328W four-channel programmable linear DC power supply series comprising the UDP3305S and UDP3305S-E, with a 4.3-inch LCD, List/delayer functions, and remote control.
Downloads
Out of Stock
Views: 13
Description
The UDP3000S Series is a high-performance four-channel programmable linear DC power supply for education, scientific research, and industrial testing, comprising the UDP3305S and UDP3305S-E. CH1/CH2 provide 0–30V at 0–5A, CH3 provides 0–6V at 0–3A, and CH4 provides fixed 5V at 2A, for 328W total power. A 4.3-inch high-definition LCD shows set values, actual outputs, and protection values in real time. Up to 2048 List/delayer data sets and 99,999 cycles, one-key CH1/CH2 series/parallel operation, and USB, RS-232, LAN, and Digital I/O support automated testing.
Specifications
- Thermocouple TypeLinear
- Series modelsUDP3305S, UDP3305S-E
- Output channels4
- Total power328W
- Output VoltageCH1/CH2: 0–30V; CH3: 0–6V; CH4: 5V
- Output CurrentCH1/CH2: 0–5A; CH3: 0–3A; CH4: 2A
- UDP3305S resolution1mV, 1mA
- UDP3305S-E resolution10mV, 1mA
- UDP3305S voltage setting accuracy<0.03% + 10mV
- UDP3305S-E voltage setting accuracy<0.3% + 20mV
- Current Setting Accuracy<0.2% + 5mA
- Display4.3-inch high-definition LCD
- List/delayer capacityUp to 2048 data sets
- Cycle countUp to 99,999
- CommunicationUSB Device, RS-232, LAN, USB Host, Digital I/O
Features
- LCD interactive interfaceReal-time display of set output, actual output, and protection voltage/current values in a clear operating interface
- List/delayer functionUp to 2048 data sets and 99,999 cycles with waveform templates for cycle and aging tests
- One-key series/parallelCH1 and CH2 can be configured in series or parallel without external wiring
- Rich remote controlControl over Ethernet, RS-232, or USB with host software, plus Digital I/O
Attributes
- ApplicationsEducation, scientific research, and industrial testing
- Optional test leadsUT-L0615-OO, UT-L0110-BU, UT-L0312-UU, UT-L0320-UU, UT-L0110-BB, UTE-L16C
- Supported softwareInstrument Application and UNI-T SDK
- Official documentationSeries data sheet, English/German user manuals, and programming manual
- Latest firmwareV1.17 (2025-07-03)
