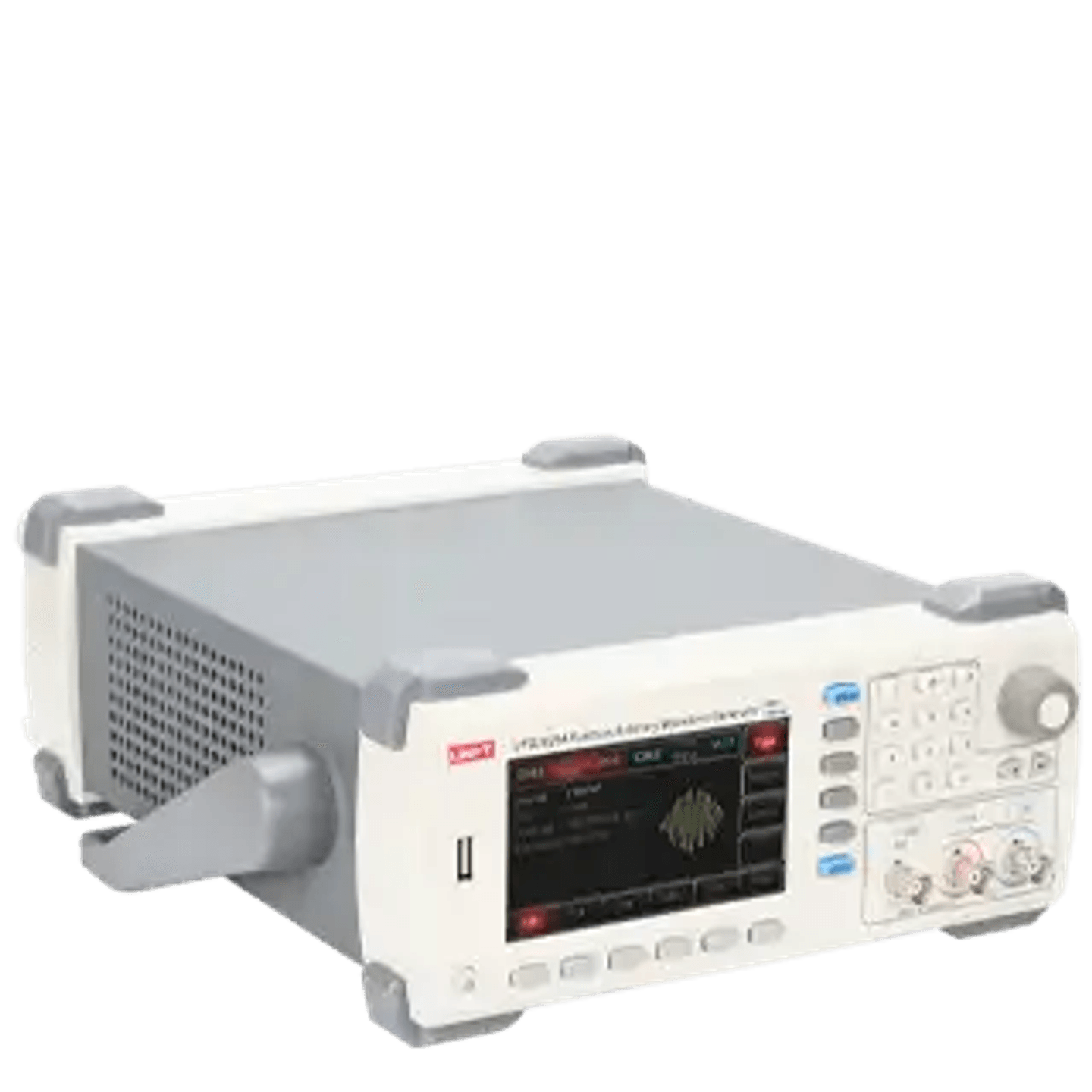

60MHz Dual-Channel Function/Arbitrary Waveform Generator
Brand
UNI-T
|
Model
UTG-2062X
|
🇨🇳 China
The UTG-2062X is a 60MHz dual-channel function/arbitrary waveform generator with up to 1.28GSa/s sampling, 16-bit vertical resolution, a built-in 16th-harmonic generator, and expression output.
Downloads
Out of Stock
Views: 49
Description
The UTG-2062X is a 60MHz dual-channel function/arbitrary waveform generator with up to 1.28GSa/s sampling and 16-bit vertical resolution. It generates sine, square, ramp, harmonic, pulse, noise, DC, and arbitrary waveforms and supports AM, FM, ASK, FSK, OSK, PSK, and PWM modulation. A built-in 16th-harmonic generator, expression output, USB Host, USB Device, and LAN interfaces make it suitable for electronic development, education, and production testing.
Specifications
- Display4.3-inch TFT LCD, WVGA (480×277)
- Sound Frequency60MHz
- Output Channels2 channels
- Sampling Frequency320MS/s
- Accuracy±0.5ppm @ 25°C
- Sampling Rate1.2GS/s; 300MS/s in DDS mode
- Signal OutputSine, Square, Ramp, Harmonic, Pulse, Noise, DC, Arb, AM, FM, ASK, FSK, OSK, PSK, PWM
- Arbitrary Waveform Resolution16 bits
- Sine Wave1μHz to 60MHz
- Square Wave1μHz to 60MHz
- Frequency1μHz to 20MHz
- Triangle Wave1μHz to 3MHz
- Harmonics1μHz to 30MHz
- Arbitrary Waveform1μHz to 15MHz
- Noise60MHz (-3dB)
- Internal I/O Frequency Range10MHz ±50Hz
- Internal I/O Voltage RangeTTL compatible
- External I/O Frequency Range10MHz ±50Hz
- External I/O Voltage RangeTTL compatible
- External I/O Impedance50Ω
Features
- Standard Waveforms7 standard waveforms
- Overshoot< 2%
- Duty Cycle0.001% to 99.999%
- Symmetry1% of period + 4ns
- CommunicationUSB Host, USB Device, LAN
- Interface LanguagesEnglish / Chinese
- Frequency Input100mHz to 200MHz
- Input CouplingAC / DC
Attributes
- Operating Environment0 to 40°C; below 90%RH, non-condensing
- Storage Environment-20 to 60°C; below 60%RH, non-condensing
- Altitude LimitBelow 2,000 meters
- Power SupplyAC 100 to 240V, 50/60Hz; 100 to 120Vrms (±10%), 400Hz
- Dimensions320 × 230 × 93 mm
- WeightApprox. 3.1kg
- AccessoriesTransmission cable, CD, instruction manual, power cord, BNC-BNC signal cable, alligator-clip cable
