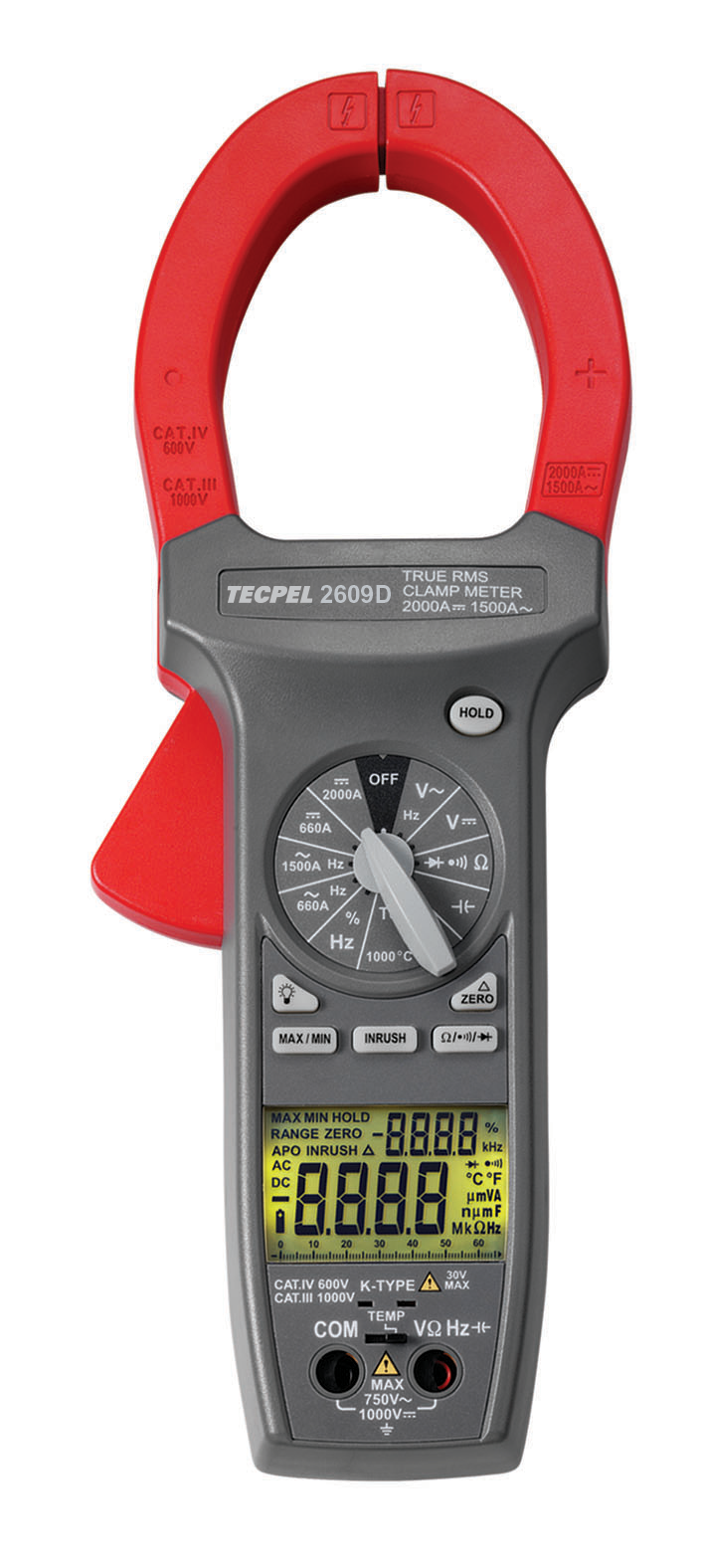

DCM-2609D Digital AC/DC Current clamp meter AC 1500A, DC 2000A INRUSH Current

INRUSH) (TRUE RMS)
(Temperature) (Backlight)
6600 counts, bar graph display
Dual Display of Frequency with Current or
Voltage or % Duty Cycle
Auto-ranging
Auto power off
Overload protection
Safety input jacks
Safety test leads
Safety: EN61010-1, EN 61010-2-032,
CAT IV 600V, CAT III 1000V, CE approved
Jaw opening capability: 57mm conductor.
Dimensions: 281mm(H)×108mm(W)×53mm(D)
Weight: Approx. 570g

SPECIFICATIONS

DC Current: 660A, 2000A ±2.0%
AC Current: 660A, 1500A ±2.0% (50-400Hz)
DC Volts: 6.6V, 66V, 660V, 1000V ±0.5%
AC Volts: 6.6V, 66V, 660V, 750V ±1.5% (50-500Hz)
Resistance: 660Ω, 6.6kΩ, 66kΩ, 660kΩ, 6.6MΩ, 66MΩ ±1.0%
Capacitance: 6.6nF, 66nF, 660nF, 6.6μF, 66μF, 660μF, 6.6mF ±3.0%
Temperature: -20°C - 1000°C, -4°F - 1832°F ±1.0% K-type thermocouple
% Ducy Cycle: 5% - 95% ±2.0%
Frequency: 10Hz - 1MHz ±0.1%
Diode Test Continuity Test DATA Hold
MAX / MIN Hold Δ(Relative) DCA ZERO
INRUSH Backlight
Resolution: 0.1A, 1mV, 0.1Ω, 1pF, 1°C, 1°F, 0.1%, 0.01Hz

DCM-2608D Digital current clamp meter AC 1500A , DC 2000A

( ±Peak Hold) (TRUE RMS)
(Backlight)
6600 counts, bar graph display
Dual Display of Frequency with Current or
Voltage or % Duty Cycle
Auto ranging
Auto power off
Overload protections
Safety input jacks
Safety test leads
Safety: EN61010-1, EN 61010-2-032,
CAT IV 600V, CAT III 1000V, CE approved
Jaw opening capability: 57mm conductor.
Dimensions: 281mm(H)×108mm(W)×53mm(D)
Weight: Approx. 570g
SPECIFICATIONS:

DC Current: 660A, 2000A ±2.0%
AC Current: 660A, 1500A ±2.0% (50-400Hz)
DC Volts: 660mV, 6.6V, 66V, 660V, 1000V ±0.5%
AC Volts: 660mV, 6.6V, 66V, 660V, 750V ±1.5% (50-500Hz)
Resistance: 660Ω, 6.6kΩ, 66kΩ, 660kΩ, 6.6MΩ, 66MΩ ±1.0%
Capacitance: 6.6nF, 66nF, 660nF, 6.6μF, 66μF, 660μF, 6.6mF ±3.0%
% Ducy Cycle: 5% - 95% ±2.0%
Frequency: 10Hz - 1MHz ±0.1%
Diode Test Continuity Test DATA Hold
MAX / MIN Hold Δ(Relative) DCA ZERO
±Peak Hold Backlight
Resolution: 0.1A, 0.1mV, 0.1Ω, 1pF, 0.1%, 0.01Hz

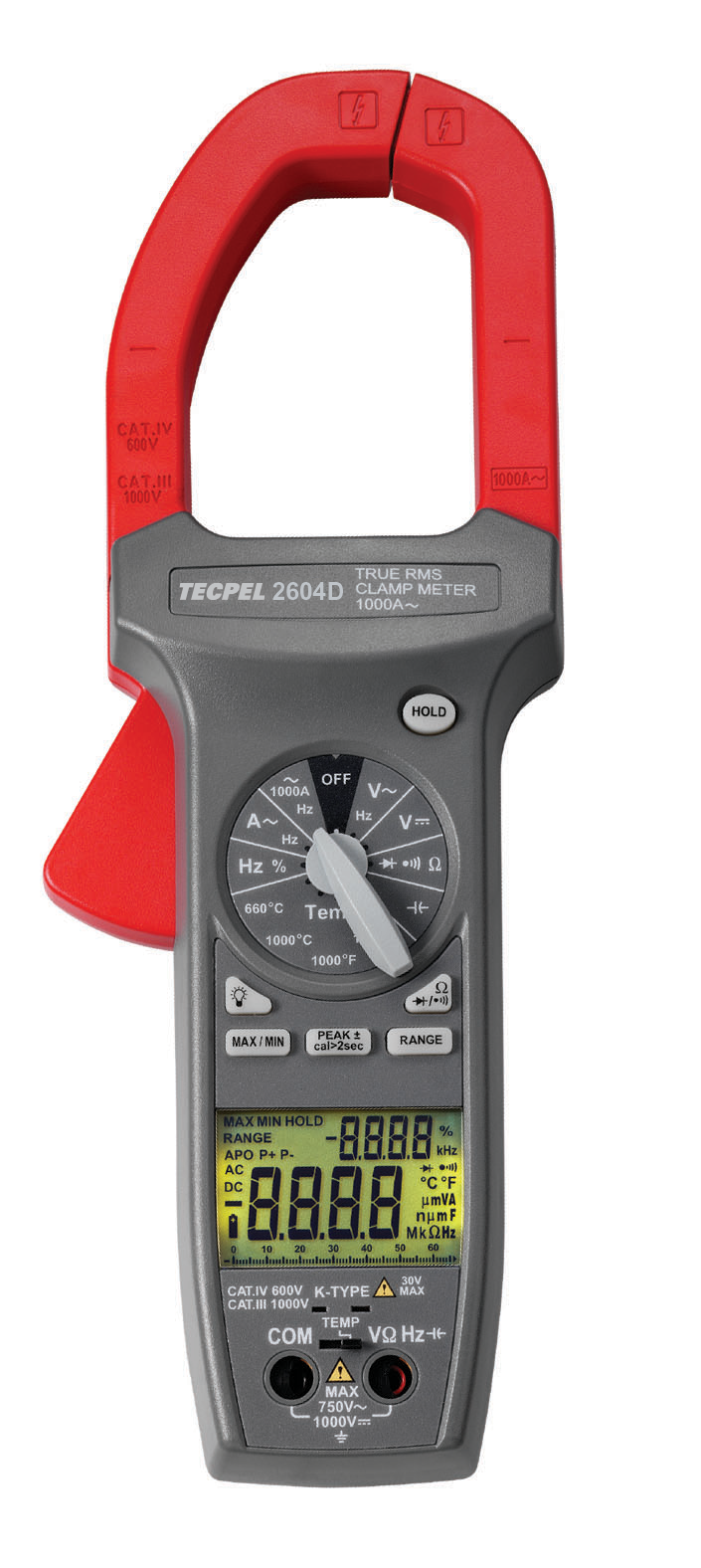

DCM-2604D Digital AC current clamp meter AC 1000A

( ±Peak Hold) (TRUE RMS)
(Temperature) (Backlight)
6600 counts, bar graph display
Dual Display of Frequency with Current or
Voltage or % Duty Cycle
Auto ranging
Auto power off
Overload protections

Safety input jacks
Safety test leads
Safety: EN61010-1, EN 61010-2-032,
CAT IV 600V, CAT III 1000V, CE approved
Jaw opening capability: 51mm conductor.
Dimensions: 279mm(H)×103mm(W)×53mm(D)
Weight: Approx. 510g

SPECIFICATIONS

AC Current: 66A, 660A, 1000A ±2.0% (50-400Hz)
DC Volts: 660mV, 6.6V, 66V, 660V, 1000V ±0.5%
AC Volts: 660mV, 6.6V, 66V, 660V, 750V ±01.5%(50-500Hz)
Resistance: 660Ω, 6.6kΩ, 66kΩ, 660kΩ, 6.6MΩ, 66MΩ ±1.0%
Capacitance: 6.6nF, 66nF, 660nF, 6.6μF, 66μF, 660μF, 6.6mF ±3.0%
Temperature: -35°C - 1000°C, -30°F - 1832°F ±1.0% K-type thermocouple
% Ducy Cycle: 5% - 95% ±2.0%
Frequency: 10Hz - 1MHz ±0.1%
Diode Test Continuity Test DATA Hold
MAX / MIN Hold ±Peak Hold Backlight
Resolution: 0.01A, 0.1mV, 0.1Ω, 1pF, 0.1°C, 0.1°F, 0.1%, 0.01Hz

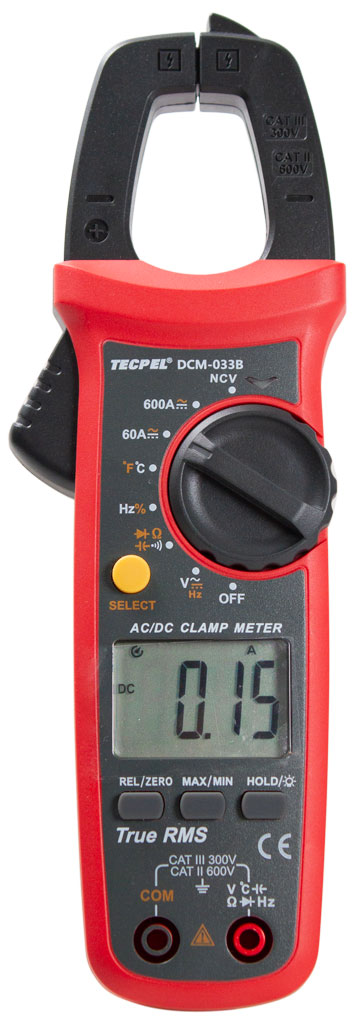

DCM-033B 6000 Count Digital Clamp Meter

* 6000 Count
* True RMS
* Small Current Measurement
* 60mF Cap. measurement
* LCD backlight
* Jaw opening 28mm

DCM-032B/DCM-033B series Hand-held automatic shifting true effective value digital hook meter. It designed in accordance with the safety standard EN61010-2010 CAT II600V/CAT III 300V level with full-function gear anti-burn protection which can meet high reliability and High safety operation requirements;

The product contains the basic functions of electrical measurement with high-precision measurement and extended temperature measurement functions. The more novel appearance design makes it an excellent measurement tool for electronic motors with superior performance.

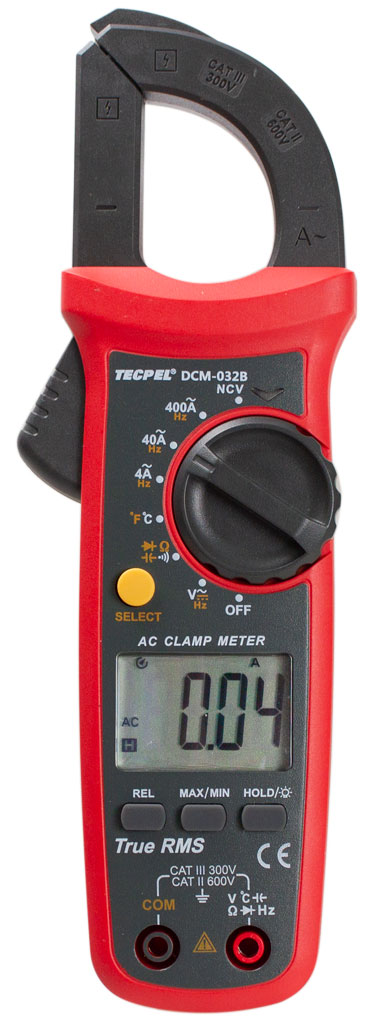

DCM-032B 4000 Count Digital Clamp Meter

* 4000 Count
* True RMS
* Small current measurement
* 4mF Cap. measurement
* LCD backlight
* Jaw opening 28mm

DCM-032B/DCM-033B series Hand-held automatic shifting true effective value digital hook meter. It designed in accordance with the safety standard EN61010-2010 CAT II600V/CAT III 300V level with full-function gear anti-burn protection which can meet high reliability and High safety operation requirements;

The product contains the basic functions of electrical measurement with high-precision measurement and extended temperature measurement functions. The more novel appearance design makes it an excellent measurement tool for electronic motors with superior performance.

DCM-043 AC/DC Current Transmitter

TECPEL DCM-043 a high high resolution AC/DC clamp meter. With the resolution of 1mA and span of 100A, this current clamp transmitter is a great meter for circuit measurement or for car applications.

DCM-040 AC Leakage Clamp Meter

DCM-040 Features
1. Accurate AC digital clamp meter for leakage current measurement.
2. 10μA high resolution on 40mA range.
3. Shield transformer jaws to minimize the effect of external stray magnetic field.
4. Large jaw with 30 mm diameter.
5. Five Ranges (40mA, 400mA, 4A, 40A, 60A) for all application.
6. A filter circuit is designed to eliminate the effect of high frequency noise and harmonics for AC current measurement.
7. Large 3 3/4 digits LCD
8. Fast bargraph display (20 times/sec.) for transient observation.
9. Continuity and frequency measurements.
10. Max/Min, Data Hold functions, and Relative Measurement.
11. 600V overload protection for ohm measurement.
12. Easy single rotary switch for any function selection.

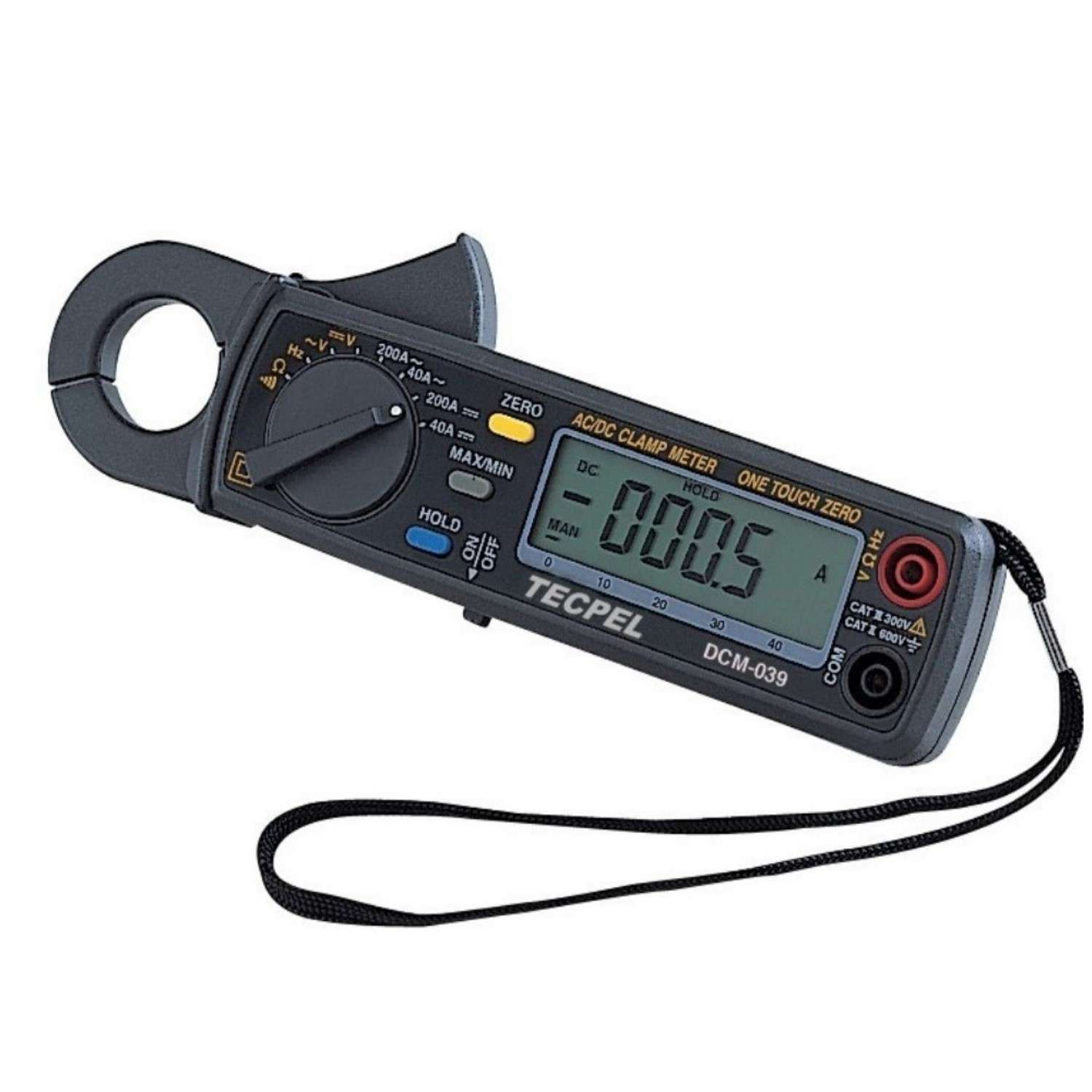

DCM-039 AC/DC 200A Current Clamp Meter

Accurate DC/AC digital clamp meter for current measurement.
10mA high resolution on 40A DC/AC range.
One touch zero for DCA adjustment.
23 mm diameter jaw.
Large 3 3/4 digits LCD
Fast bargraph display (20 times/sec.) for transient observation.
Continuity and frequency measurements.
Max/Min and Data Hold functions.
600V overload protection for ohm measurement.
Easy single rotary switch for any function selection.
Ideal for works in crowded switch box or cable areas.

DPM-041 Digital Clamp Power Meter

AC 1000A True RMS Clamp on
Power Meter
Features:
Power measure of Active power (KW), Reactive power
(KVAR), Apparent power (KVA), Power Factor (PF)
PF (cos O) for 3O4W, 3O3W, 1O2W, 1O3W
Triple display: KW+V+A easy to read
AC current up to 1000A, AC voltage up to 600V
INRUSH (100mS), HOLD and PEAK functions
MAX and MIN recorded functions
Auto power off (10 mins), Black-light
Dimensions of conductor: O35mm
EN61010-1 Approval. Over-Voltage Category III 1000
