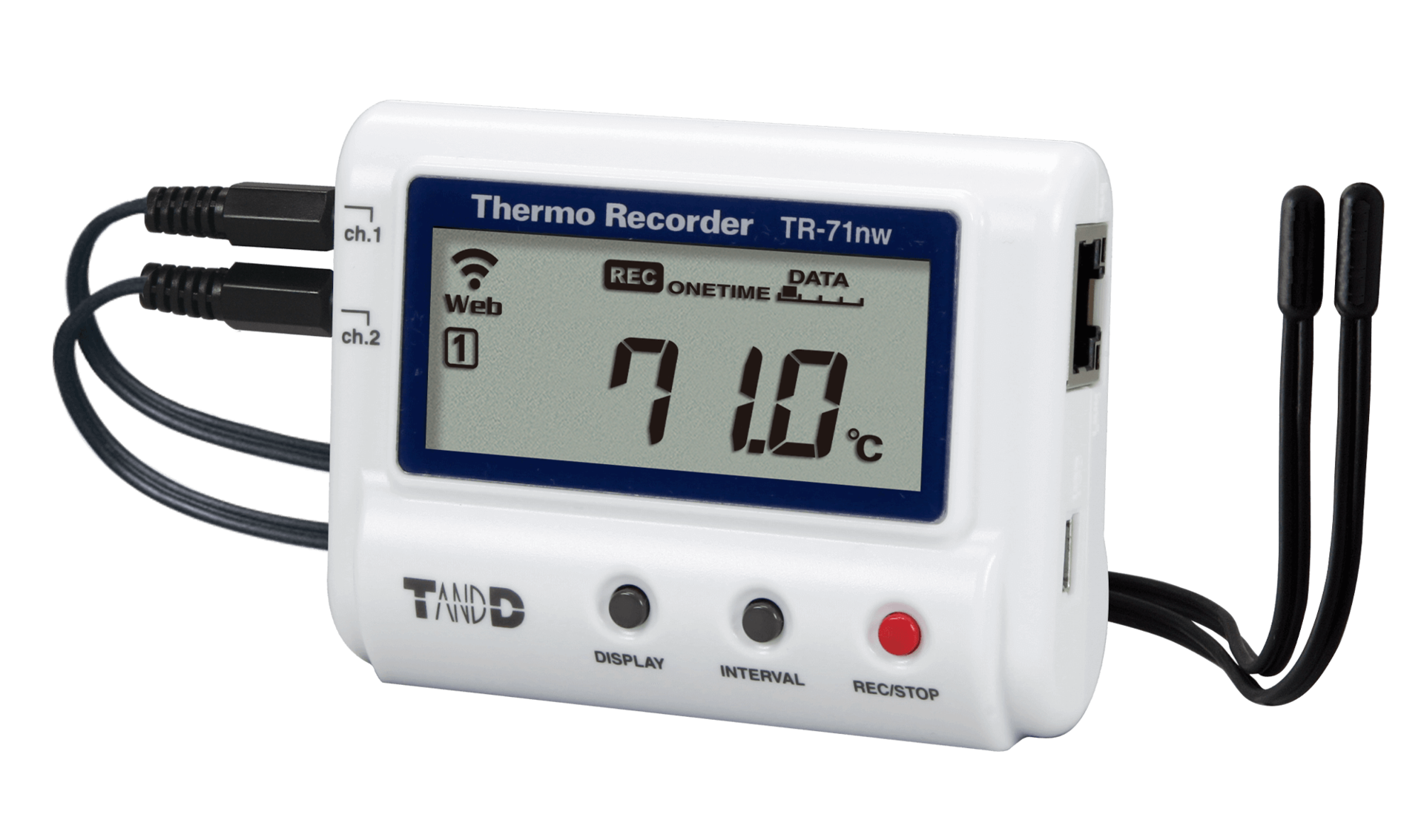

TR-71nw / TR-72nw / TR-72nw-S T and D Wired Lan Humidity and Temperature Data Logger

The New Thermo Recorder: TR-7nw Series
T&D Corporation is proud to release the temperature and humidity data logger TR-71nw/72nw: a new LAN-based data logger for cloud storage. In addition to the existing wireless LAN model TR-71wf/72wf, we added the wired-LAN model with the same basic features to offer a choice of network connection methods.
By using T&D WebStorage Service*1, a cloud service provided by T&D free of charge, it is possible to access stored data from your PC and mobile devices anytime from anywhere. Simply connect the data logger to the Internet with a LAN cable, and it automatically*2 starts uploading recorded data to T&D WebStorage Service, thus providing a remote access solution without the need for manual intervention.
*1: Internet access via LAN is required to access T&D WebStorage Service.
*2: In the LAN environment where DHCP can be used.

Features:

  • Automatic Upload of Recorded Data to T&D WebStorage Service via Wired LAN

  • Temp/Humidity Alarm Mail Transmission from T&D WebStorage Service

  • Direct Data Download via USB

  • Temperature and Humidity Measurement in a Wider Range with Greater Accuracy (TR-72nw-H)

  • Battery Operation for up to 1.5 years with one AA Alkaline Battery

  • Automatic Upload of Recorded Data to PC

TR-51i / TR-52i T and D Thermo Recorder

Compact Waterproof Type

The compact design allows the user to place a TR-5i Data Logger almost anywhere without worrying about space. Also, its durable body with waterproof and dustproof capacity makes it possible to be used in harsh environments.

TR-51i:
The TR-51i with an internal temperature sensor offers superior waterproof capacity and moderate response time; it is suitable for use in transportation and storage, as well as, in harsh environments.

TR-52i:
The TR-52i with an external temperature sensor is highly versatile and ideal for use in situations where a quicker response (compared to TR-51i) is required.

Wide Measurement Range: -60°C to 155°C

The TR-51i can measure and record temperature from -40°C to 80°C and the TR-52i can measure and record in the even wider range of -60°C to 155°C.

Large Logging Capacity: 16,000 Readings

One Data Logger can store up to 16,000 readings. At a recording interval of 10 minutes that would equal about 111 days, and at an interval of 60 minutes that would equal about 22 months of non-stop consecutive recording.

*The supplied software “T&D Recorder for Windows” provides 15 recording interval choices (from 1 second to 60 minutes) to meet your needs.

Low Energy Consumption Design: Impressive 4-year Battery Life

The low energy consumption design of the TR-5i series provides continuous operation for up to 4 years. When the battery needs to be replaced, the battery replacement mark will appear.

Estimated Battery Life:
When a new battery is being used and data downloading occurs four times a month (with infrared communication switched OFF)

*The battery replacement mark will appear based upon the calculation of battery use. It may appear sooner than noted above.
*Battery life varies depending upon frequency of communication, infrared communication settings, blinking of the warning LED, and measuring environments such as the ambient temperature.

Recording Settings Display

Recording mode (One-Time or Endless) and Infrared Communication settings will be displayed in the LCD.

Downloading Data: Infrared Communication / Optical Communication

In order to download recorded data from a TR-51i/52i, it is necessary to separately purchase a data collection device: either a Communication Port or a Data Collector.

Downloading Data via Infrared Communication
TR-57DCi: Data Collector Infrared Communication Type

Downloading data via Infrared Communication means that the TR-51i/52i Logger does not have to be placed on the Data Collector nor does it need to be moved meaning less work and less hassle.

Downloading Data via Optical Communication
TR-50U: Communication Port
TR-57DCi, TR-57U, RTR-57U: Data Collector

In addition to our forthcoming Data Collector TR-57DCi, previous data collection devices can also be used for downloading data via Optical Communication.

Communication time for downloading data from a TR-51i/52i varies depending upon the data collection device being used.
When downloading one Unit at full storage capacity:
TR-57DCi: about 24 seconds (optical communication) / about 55 seconds (infrared communication)
TR-57U: about 160 seconds (optical communication)
TR-50U: about 20 seconds (optical communication)

Checking Collected Data on the Spot (Data Collector)

When using a Data Collector, you can download recorded data from a TR-51i/52i, and view the data in graph or list form without connecting to your computer. It is also possible to confirm the occurrence of a warning from the data recorded by a TR-51i/52i for which the Warning Monitoring Function has been set.

Warning Monitoring Function

Using the supplied software “T&D Recorder for Windows”, you can make Upper / Lower Limits and Judgment Time settings for the TR-51i/52i. If a measurement exceeds one of the set limits, the warning LED and message will be displayed. Because the warning LED and message will remain ON until the data is downloaded, there is no way to miss any important warnings.

Adjustment of Measurements

The software enables you to use the measurement adjustment function to correct for TR-51i and TR-52i measurement inaccuracies.All settings can be made using the “Adjustment Tools” application in the supplied software “T&D Recorder for Windows”.

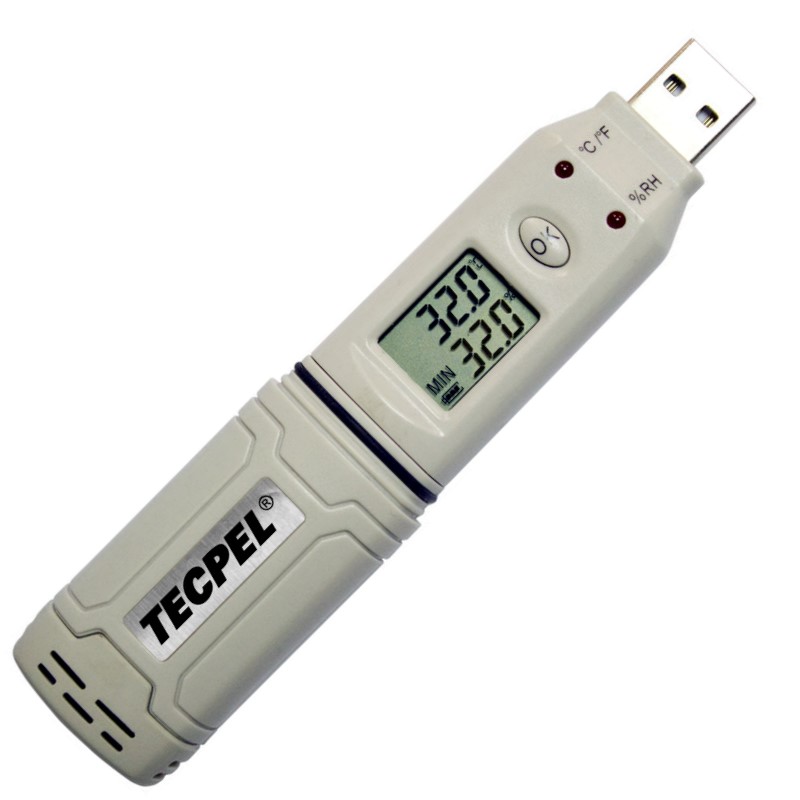

TR-31 / TR-32 TECPEL Temperature Logger TR-31 / Temperatue Humidity Logger TR-32

TR-31/32 series has USB interface, featuring elegant appearance and compact construction design for refrigerator , cold-chain transportation, and container transportation monitoring applications.
TR-31/32 adopts user-friendly USB interface, easy-to-mount brackets with screws.
The OK key can help the user check the Max/Min/Current values and the upper and lower limits.
Compact / Warning Signal / Lightweight / Water Resistant!
Wide Temperature Range: -30 deg C to 70 deg C
Large Data Capacity: up to 43,000 Records
Wide Selection of Recording Intervals 2 s to 24 H
Impressive one year battery life
Waning Monitoring function

1. Simply connect to a PC via supplied USB cable to set up data logger.
2. IP Rating : IP 67 Waterproof and dust proof to resist moisture, dew-point temperature and dust.
3. The low energy consumption circuit design.
4. Hi/Low LED blinking Alarm setting.
5. Able to display Max/Min reading.
6. Switchable *C and *F.
7. Dew point calculation via software. (TR-32)
8. Easy operation English software.
9. Low battery indication.
10. Data storage capability: 43,000 points
11. Acrylic holder for easy installation on walls.

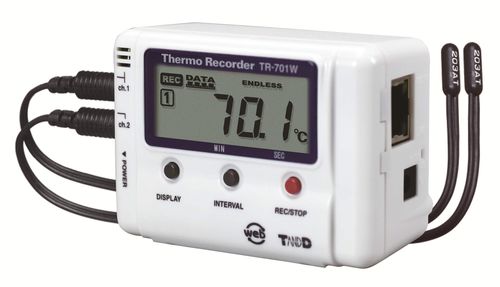

TR-701nw / TR-702nw T and D Web Thermo Recorder

Product Type :TR-701nw

The network connected Temp/Humidity Data Logger TR-700W Series is a new type of temperature and humidity data logger equipped with a built-in function that enables connection to and use over the Internet or other network such as a LAN network.
The downloading of recorded data, the monitoring of current readings and the sending of warning mails can all be done easily over the Internet or LAN network. The use of an Internet connection provides a low cost way to manage temperature and humidity data from long distances.
The product is an all-in-one package that includes the data logger unit, sensors, cables and software.

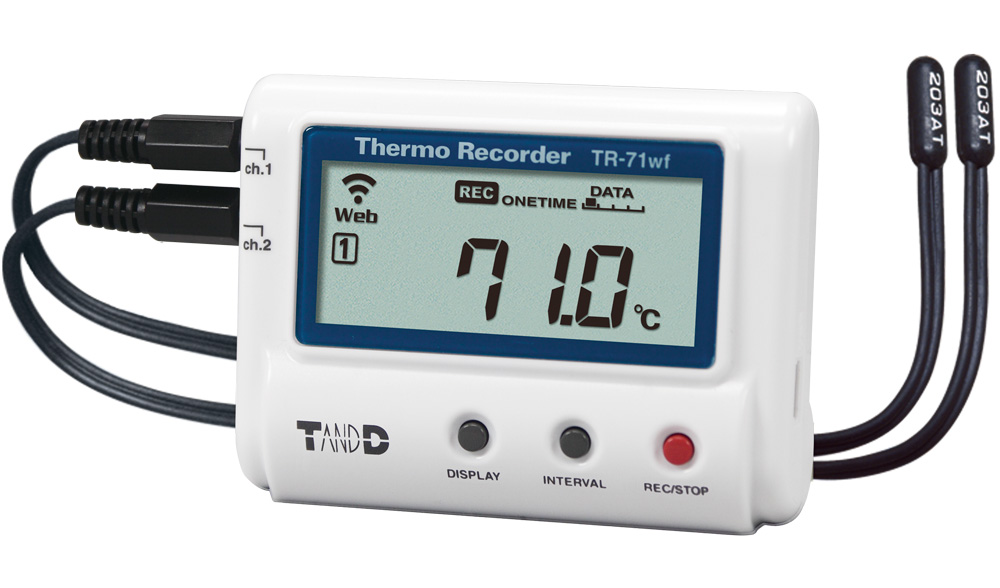

TR-71wb / TR-72wb / TR-72wb-S T and D Wireless WiFi Humidity and Temperature thermo recorder

T&D TR-71wb / TR-72wb / TR-72wb-S Wifi Temperature Humidity Data logger

Announcing the New Thermo Recorder:
TR-7wb Series
T&D Corporation is proud to release the new temperature and humidity data logger TR-71wb/72wb.
The most distinguishing feature of TR-71wb/72wb is its auto upload function which automatically uploads recorded data from the logger to our free cloud service. It enables the viewing of uploaded data on your mobile device or PC anytime, anywhere.
Try our new data loggers and take a step into the new world of cloud storage.

TR-71U / TR-72U / TR-73U T and D Thermo / Barometric Pressure Recorder

TR-71U/ TR-72U/ TR-73U
They may look like toys... but they are not!!
Use them and find out for yourself...powerful, durable and versatile.
For Measuring and Recording Temperature and Humidity
These handy Thermo Recorders measure and record temperature and humidity. The recorded data is then downloaded to your computer via our exclusive software whereby colorful graphs and tables can be easily created. By making use of two alkaline batteries this low energy using compact lightweight unit can be left alone to record continuously over long periods of time. And with our exclusive circuitry we have created a model that brings you the accuracy of more expensive models at a price you can afford.

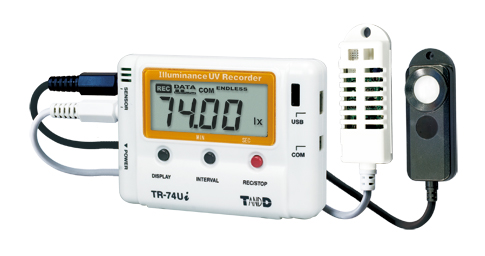

TR-74Ui T and D Accumulating Light, Humidity and Temperature Data Logger

Measurement Items
The "TR-74Ui Illuminance UV Recorder" is a data logger designed to simultaneously measure and record four items: Illuminance, Ultraviolet Light (UV), Temperature and Humidity. In addition to these, the TR-74Ui is also capable of displaying Cumulative Illuminance and Cumulative Amount of Ultraviolet Light in the LCD display. From dim moonlight to the summer sun, Illuminance can be measured within a wide range.

The product is an all-in-one package that includes the data logger unit, sensors and software. We offer two types of packages with different temperature/humidity sensors depending on your required measurement range and accuracy needs.
Simply by connecting to a PC via a USB connection and carrying out a few easy steps, the measurement and recording of data can be started.

Not only can recorded data be easily downloaded to a PC via USB communication, but it can also be collected from data loggers via infrared communication to our T&D Data Collector TR-57DCi (sold separately). The TR-57DCi enables the user to gather and check recorded data on the spot without having to manually gather the data loggers.

Application Examples
* In art museums and other exhibit forums to manage illuminosity and help prevent deterioration of exhibits
* Management during all aspects of plant and food production
* For use in the development, testing, manufacture and sales of products for cutting UV rays
* UV reduction management in schools from kindergartens to universities
* For home and office use in the management or illuminosity and UV rays
* Design and management of homes and architectural buildings
* For managing the reduction of UV rays at swimming pools, the ocean, mountains and in parks
* For management and adjustment of illuminosity for photography and film
* For management in the production, storage and sales of foodstuffs and beverages
* For use at supermarkets, convenience stores and drugstores in UV product sales promotion materials


  • Measure and Record Illuminance, Ultraviolet Light (UV), Temperature and Humidity

  • Temperature/Humidity Sensor Selection

  • View Cumulative Illuminance and Cumulative Amount of Ultraviolet Light in LCD Display

  • Measure Illuminance within Wide Range

  • View and record Illuminance in Resolutions to 0.01 lx

  • Simultaneously View Four Measurement in One Easy-to-Read Graph

  • Large Logging Capacity: 8,000 Data Sets

  • Transmit Recorded Data to PC via USB Connection



Measure and Record Illuminance, Ultraviolet Light (UV), Temperature and Humidity

TR-74Ui Illuminance UV Recorder is a data logger designed to simultaneously measure and record four items: Illuminance, Ultraviolet Light (UV), Temperature and Humidity. This versatile data logger can be applied in a wide range of applications, from business to personal use.

Temperature/Humidity Sensor Selection

The TR-74Ui standard package includes our THA-3151 Temperature/Humidity Sensor and the TR-74Ui-H high precision package includes our HHA-3151 Temperature/Humidity Sensor.

View Cumulative Illuminance and Cumulative Amount of Ultraviolet Light in LCD Display

In addition to Illuminance, Ultraviolet Light (UV), Temperature and Humidity, the TR-74Ui is also capable of displaying Cumulative Illuminance and Cumulative Amount of Ultraviolet Light in the LCD display.

Cumulative Illuminance Display Range: 0 to 90,000,000 lxh
Cumulative Amount of Ultraviolet Light Display Range: 0 to 62W/cm2h

Measure Illuminance within Wide Range

From dim moonlight to the summer sun, Illuminance can be measured within a wide range.

Illuminance Measurement Range: 0 to 130,000 lx

View and record Illuminance in Resolutions to 0.01 lx

High resolutions of up to 0.01 lx make it possible to measure even under less light conditions.

Simultaneously View Four Measurement in One Easy-to-Read Graph

The recorded data downloaded from TR-74Ui Units is read by the Multi-scale Graph and the data of four items, Illuminance, Ultraviolet Light (UV), Temperature and Humidity, can be simultaneously viewed in graph or tabular form as well as printed or output.

Large Logging Capacity: 8,000 Data Sets

The TR-74Ui Illuminance UV Recorder can measure and record up to 8,000 data sets. (One data set consists of readings for all channels: Illuminance, Ultraviolet Light, Temperature and Humidity.)
At the longest recording interval of 60 minutes, a Unit can record one year's worth of measurements.

* The battery life for a TR-74Ui Unit is about 6 months. In order to record measurements consecutively for 1 year, the battery should be periodically changed.
Battery life varies depending upon the type of battery, the battery performance, the measuring environment, and the frequency of communication.

Transmit Recorded Data to PC via USB Connection

It is possible to connect a TR-74Ui Unit directly to your computer with a USB cable.
If the computer has more than one USB port, it is possible to connect multiple TR-74Ui Units to one computer at the same time.

Connecting more than one TR-74Ui Unit at a time can only be done if using Windows 7 and Windows Vista.

Moreover, it is possible to gather current readings from the TR-74Ui connected to your computer and view those readings in the computer display.

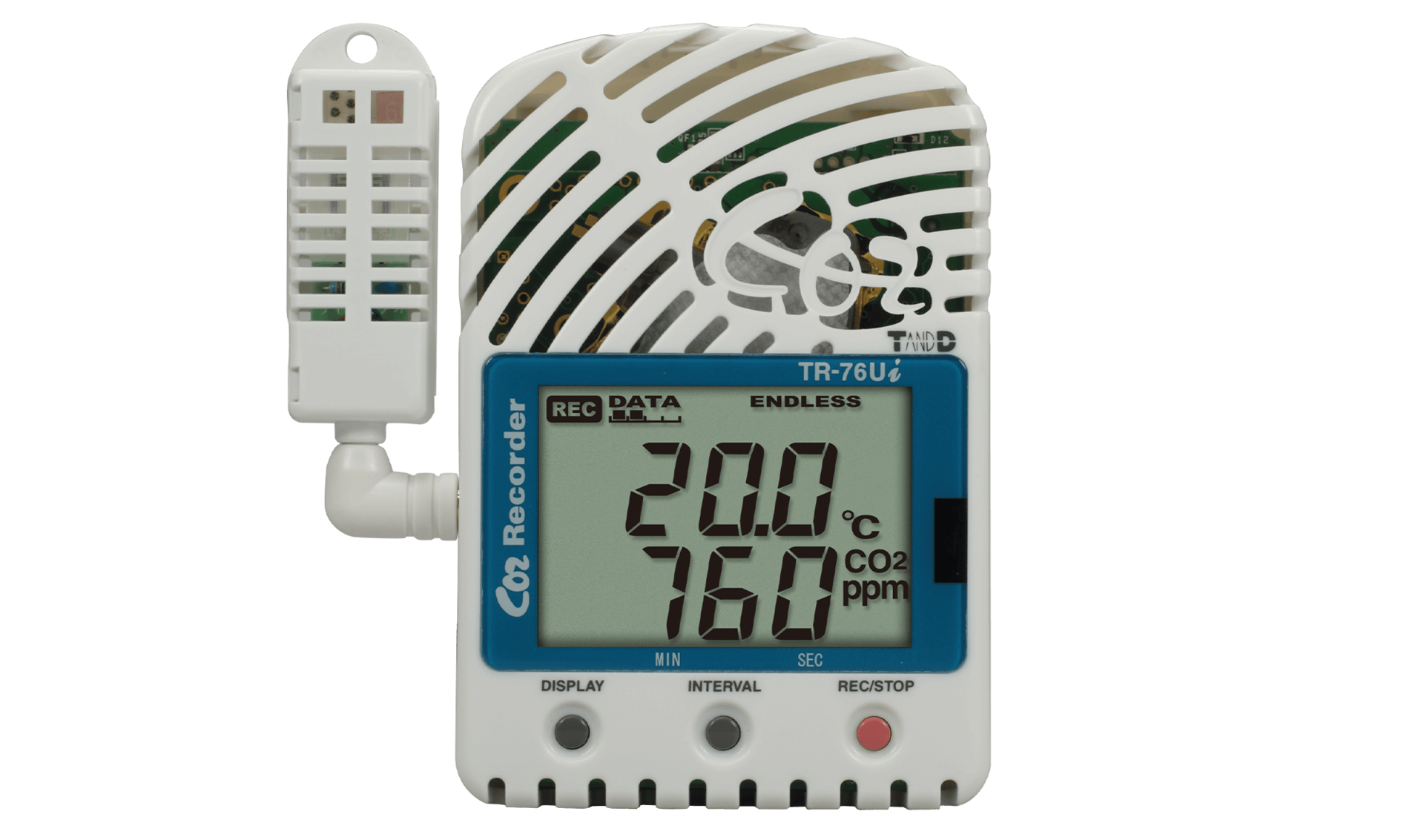

TR-76Ui T and D CO2 Data Logger

CO2 Data Logger
Product Type:TR-76Ui
Measurement Items

The ""CO2 Recorder TR-76Ui"" is a three-channel data logger designed to simultaneously measure and record CO2 concentration, temperature and humidity. Making atmospheric pressure settings for the measurement location ensures more stable and accurate CO2 measurements. The supplied software enables the user to download data recorded by TR-76Ui to PC via USB connection, whereby data from all three channels can be simultaneously viewed in graph or table form.

The product is an all-in-one package that includes the data logger unit, sensors and software. We offer two types of packages with different temperature/humidity sensors depending on your required measurement range and accuracy needs.

By using a Data Collector TR-57DCi (sold separately), it will be possible to collect recorded data from the TR-76Ui via infrared communication and immediately check the collected data on the spot. TR-76Ui support on the TR-57DCi is planned for release at the end of February 2012.

This versatile data logger can be used in a wide range of applications from personal to business use; for measurements of home environment, CO2 measurements in offices and other buildings, and/or energy-saving measures such as ventilation and air conditioning controls.

Communication Interfaces
* TR-76Ui support on the TR-57DCi is planned for release at the end of February 2012.

TR-57DCi
Application Examples
*Managing CO2, temperature and humidity in schools: from kindergartens to universities
*For home and office use in the management of CO2 concentration, temperature and humidity
*For energy-saving measures such as ventilation and air conditioning controls
*For research studies on photosynthesis and plant growth
*To use in estimations of ventilation
*This unit is not designed for use in preventing health problems.

Measure and Record CO2, Temperature and Humidity with one TR-76Ui Unit
TR-76Ui is a three-channel data logger designed to simultaneously measure and record CO2 concentration, temperature and humidity. It is capable of measuring CO2 concentrations up to 5,000 ppm.

Reference Data: About CO2 Levels and their Possible Effects
*This unit is not designed for use in preventing health problems.
Temperature/Humidity Sensor Selection
The TR-76Ui standard package includes our THA-3001 Temperature /humidity senosr and the TR-76Ui-H high precision package includes our HHA-3151 Temperature /humidity sensor

Simultaneously View Three Measurement Items in one Easy-to-Read Graph
The recorded data downloaded from TR-76Ui units is read in the Multi-Scale Graph where the data of three items, CO2 concentration, temperature and humidity, can be simultaneously viewed in graph or list form, as well as, printed out.

It is also possible from the graph window to calculate and view the highest, lowest and average readings for a desired range (time period).

Large Logging Capacity: 8,000 Data Sets
One data set consists of readings for all three channels: CO2 concentration, temperature, and humidity. There are 15 recording intervals (1 seconds to 60 minutes) to select from. At the longest recording interval of 60 minutes, recording can continue consecutively for one year.

Atmospheric Pressure Correction Function
This function enables the TR-76Ui software to calculate the atmospheric pressure from the altitude at the measurement location. By using a correction factor for the atmospheric pressure at the measurement location, more reliable CO2 concentration measurements can be achieved.

View Current Readings for all Three Channels on LCD
CO2 concentration, temperature, and humidity measurements are shown on the large easy-to-read LCD screen.

While CO2 measurement is always displayed, the display pattern for temperature and humidity can be selected from an alternating display of two or fixed display of either one.

Manage Recorded Data with Common Spreadsheet Software
By using the Multi-Scale Graph, data downloaded from the TR-76Ui can be saved into text format for use with common spreadsheet softwa
Transmit Recorded Data to PC via USB Connection
It is possible to connect a TR-76Ui unit directly to your computer with a USB cable.
Moreover, it is possible to gather current readings from the TR-76Ui connected to your computer and view those readings in the computer display.

Easy Data Collection on the Spot: No Computer Necessary (TR-57DCi)
By using our Data Collector TR-57DCi (sold separately), it is possible to gather and check recorded data on the spot.

* TR-76Ui support on the TR-57DCi is planned for release at the end of February 2012.

TR-77Ui T and D Temperature and Humidity data logger

The TR-77Ui is our innovative temperature and humidity data logger designed to measure and record in a wider range with more precision than ever before. It reaches the high measurement accuracy of ±2.5%RH and can measure and record in the range of 0 to 99%RH (at temperatures from -30 to 80°C).

The product is an all-in-one package that includes the data logger unit, sensor and software. Simply by connecting to a PC via a USB connection and carrying out a few easy steps, the measurement and recording of data can be started.

This model is replaced by Network temperautre humidity data logger
TR-72nw-H or Wifi Temperature Humidity data logger  TR-72wf-H
