8-inch 2ch Temperature Chart Recorder, Dual Display, Audible Alarm
Brand
DICKSON
|
Model
KT8-21
|
🇺🇸 USA

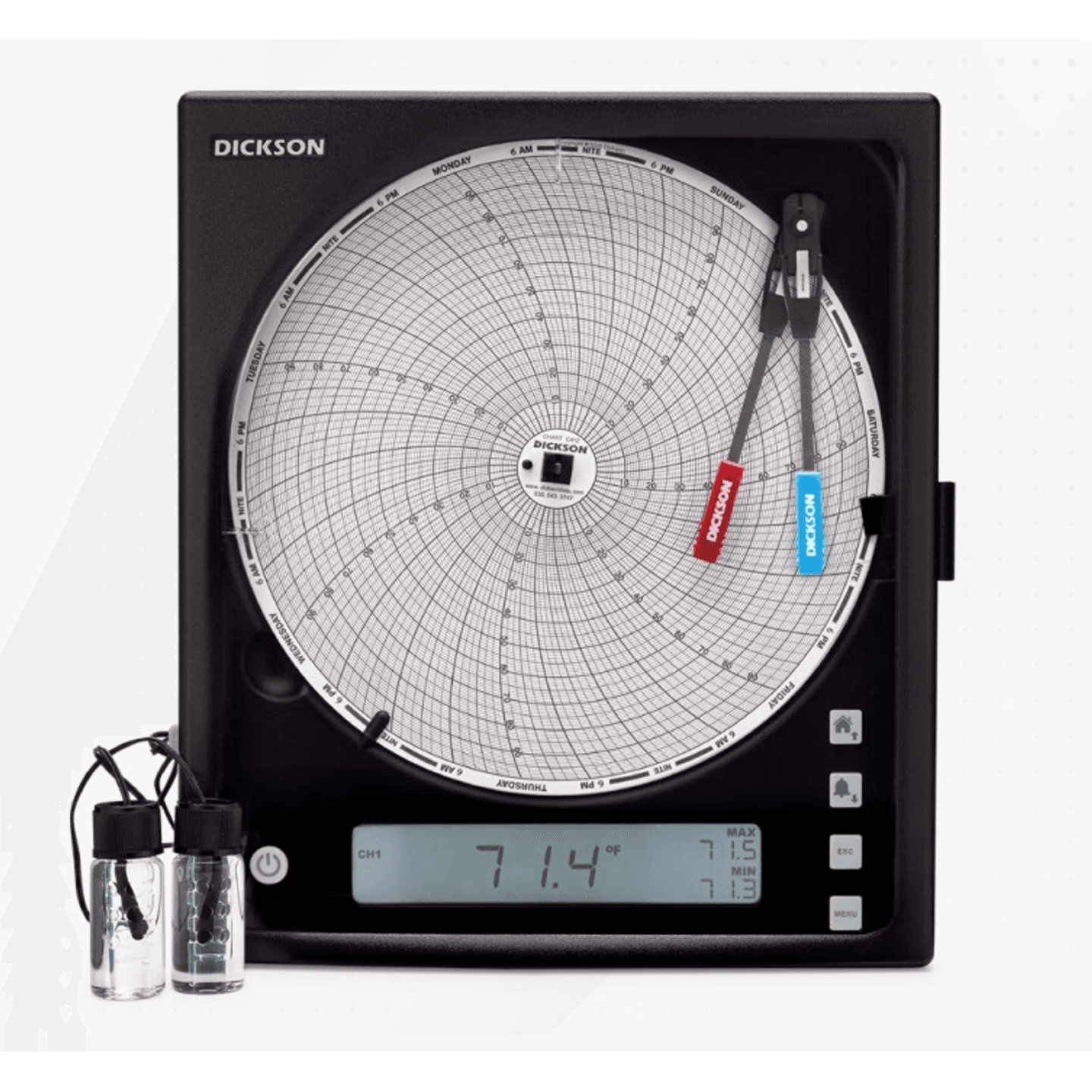

The Dickson KT8-21 is an 8-inch dual-temperature chart recorder with LCD display and replaceable sensor technology.
- Dual temperature channels with clear LCD display
- Audible and visual alarm functions
- Selectable 24-hour or 7-day chart rotation
- Replaceable dual thermistor sensor (RS021)
- Recording charts are sold separately
Downloads
Price
NT$ 30,450
Out of Stock
Views: 591
Description
The Dickson KT8-21 8-inch dual-channel temperature chart recorder combines high resolution, an LCD display, and interchangeable sensor technology for detailed temperature recording. It provides clear dual temperature display, audible and visual alarms, selectable 24-hour or 7-day chart rotation, and easy calibration support. Recording charts are sold separately.
Specifications
- Replaceable SensorDual thermistor (RS021)
- Temperature Accuracy+/-0.9 °F from -58 °F to 68 °F (+/-0.5 °C from -50 °C to 20 °C); +/-1.2 °F from 69 °F to 122 °F (+/-2 °F for remaining range)
- Temperature Range-58 °F to 158 °F (-50 °C to 70 °C)
- Alarm TypeAudible / visual
- Operating Environment Relative Humidity0-95% RH, non-condensing
- Normal Operating Temperature Conditions32 °F to 120 °F (0 °C to 50 °C)
- Battery Backup4 AA batteries
- Battery LifeAverage 1 month
- Calibration OptionsN100, N300, N400
- ChannelsCH1: Temperature, CH2: Temperature
- Chart Rotation Speed24 hours / 7 days
- Dimensions9 3/8" x 2 3/4" x 10 1/8"
- Display Size5 1/8" x 1"
- Display TypeLCD
- CaseDurable black ABS plastic, polycarbonate door, aluminum dial
- Protection RatingIP20
- Included AccessoriesAC adapter, red pen, 4 C batteries, quick start guide, and Replaceable Sensor(TM); charts sold separately
- Mounting OptionsFree-standing or wall-mounted with keyhole
- Power Cord6 ft
- Power Supply120 to 240 VAC, 12 VDC (INTL connectors available); AC adapter
- Power Status IndicatorLED indicator
- Unit Weight2.45 lbs without batteries
- Warranty12 months
Features
- Audible AlarmYes
- Visual AlarmYes
- Replaceable SensorYes
- LCD DisplayYes
Attributes
- Operating EnvironmentTemperature 0 ~ 50 °C, humidity 0-95% RH, non-condensing
- Storage EnvironmentTemperature -20 ~ 60 °C, humidity 0-80% RH
- Dimensions9 3/8" x 2 3/4" x 10 1/8"
- Weight2.45 lbs without batteries
- MaterialsDurable black ABS plastic, polycarbonate door, aluminum dial
