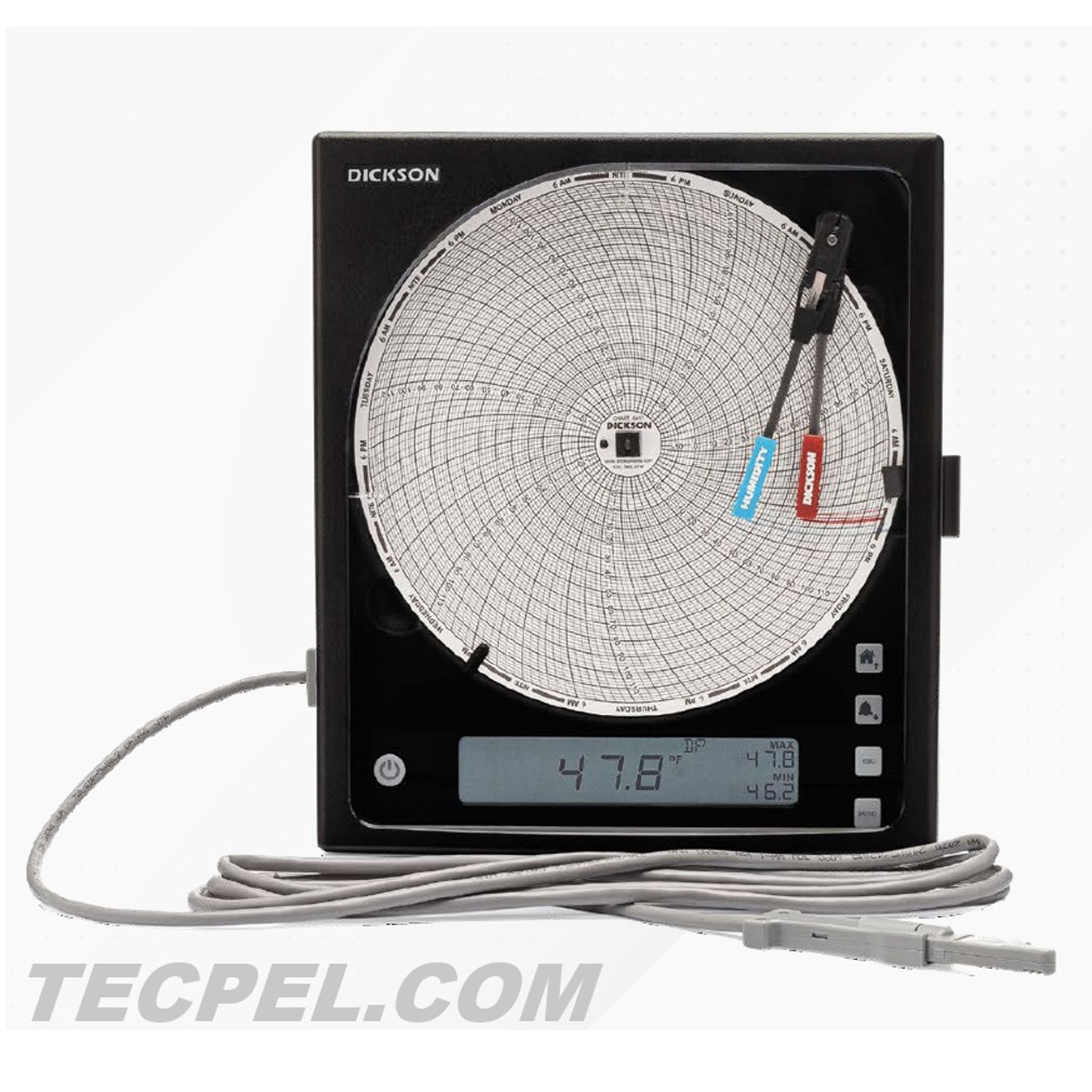

8inch Temperature and Humidity Chart recorder

Brand DICKSON | Model TH8-11R | 🇺🇸 USA

• 8-inch large chart for clear data visualization • LCD display with digital readout • Sound alarm for prompt notification of abnormal conditions • Interchangeable sensor technology for flexible applications • External extension sensing wire for easy installation • Relay connectivity for expanded functionality • Supports desktop or wall-mount installation • Power status indicator light for user convenience • Dual-color recording with red and blue pens for clear data differentiation

Out of Stock

The Dickson Data TH8-11R is a high-resolution 8-inch temperature and humidity chart recorder featuring an LCD display and interchangeable sensor technology, suitable for precise monitoring of environmental conditions. It includes digital display, sound alarms, external extension sensing wire, and relay connectivity to ensure users are always informed about the environment and can take timely action.

Sensor Type™ (RS010)
Temperature Range-40°F to 185°F (-40°C to 85°C)
Humidity0-95% RH non-condensing
Resolution±0.8°F (±0.4°C) / ±1.8°F (±1°C)
Power Supply120to240 VAC, 12 VDC
Battery Lifeapprox.1
Calibration OptionsN100, N300, N400
DisplayLCD
Waterproof RatingIP20
Operating Temperature32°F to 120°F (0°C to 50°C)
Dimensions9 3/8”x2 3/4”x10 1/8”
Weight2.45 (No )

DisplayYes
Alarm FunctionYes
extension cableYes
RelayYes
RPM Range24hours, 7days(optional)
recordsrecords, records
Standor
Power Status IndicatorLED
ChannelsCH1:, CH2:

Operating TemperatureTemperature 0 to 50°C, Humidity below 95%RH non-condensing
Storage TemperatureTemperature -20 to 60°C, Humidity below 80%RH non-condensing
Waterproof RatingIP20
Body MaterialRugged Black ABS Case, Polycarbonate Door, Aluminum Dial
AccessoriesAC Adapter, Red Pen, Blue Pen, (4) C Batteries, Quick Start Guide, Replaceable Sensor
