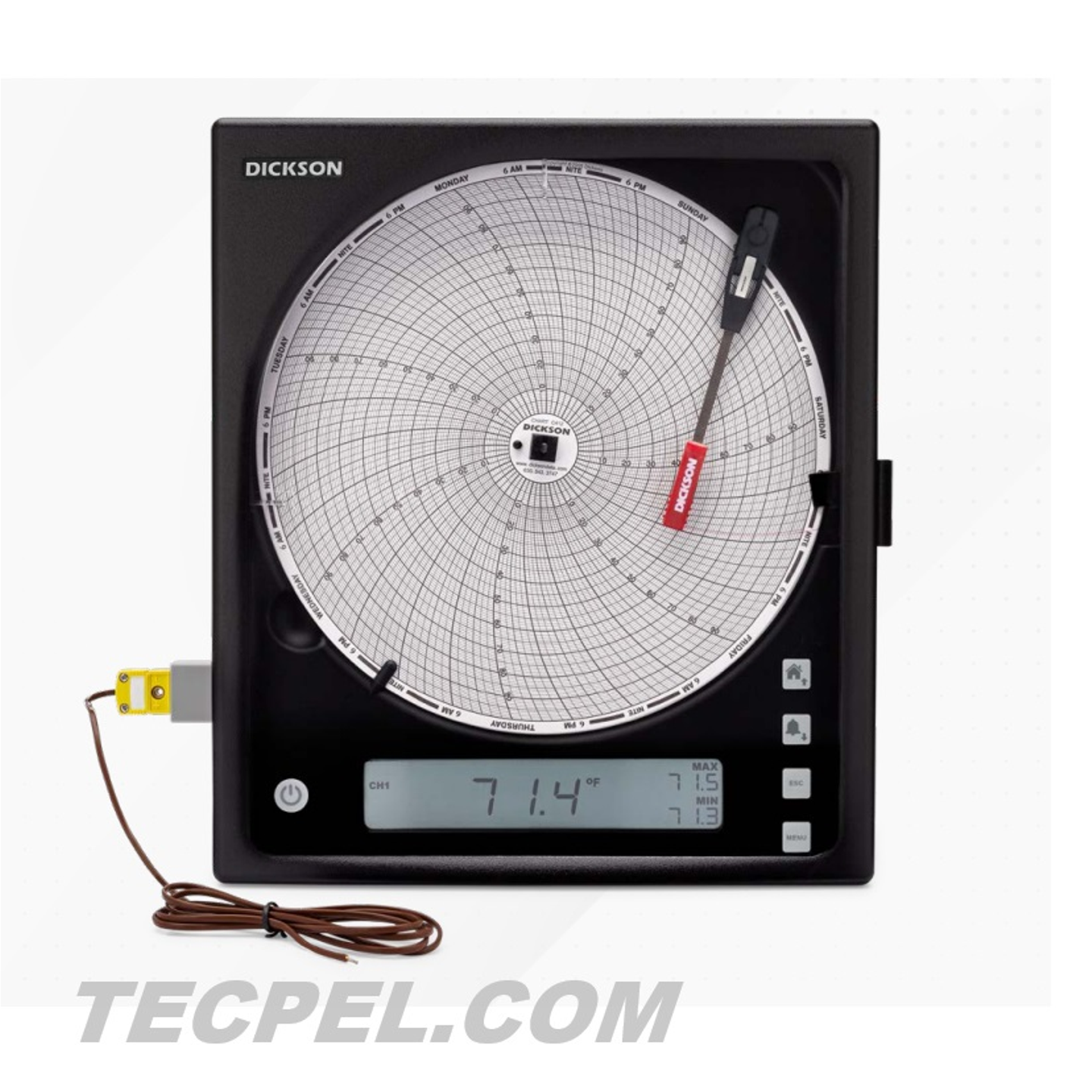

KT8-30R 8-inch Temperature Chart Recorder
Brand
DICKSON
|
Model
KT8-30R
|
🇺🇸 USA
• High-resolution LCD display
• Replaceable K-type sensor for easy calibration
• Supports 24-hour and 7-day recording time ranges
• Alarm and relay functionality
• Battery backup design for continuous data recording
• Mounting options for stand or wall installation
• IP20 waterproof rating for versatile environments
• 12-month limited warranty
Price
NT$ 34,650
Out of Stock
Views: 535
Description
The Dickson KT8-30R 8-inch chart recorder offers high resolution and flexible recording options, utilizing replaceable sensor technology for convenient calibration. It features an LCD display and a single-channel K-type sensor, making it ideal for compliance and environmental monitoring applications, accurately recording temperature variations across various industrial and environmental settings.
Specifications
- Dimensions9 3/8” x 2 3/4” x 10 1/8”
- Specification24 hours, 7 days
- Operating Environment Humidity0-95% RH
- Operating Temperature32°F to 120°F (0°C to 50°C)
- Battery Type4 Ctype
- Battery Lifeapprox.1
- Calibration OptionsN100, N300, N400
- Temperature Range-300°F to 2000°F (-185°C to 1093°C)
- Accuracy±1.8°F (-300°F to 122°F), ±3.8°F
- Display5 1/8” x 1”
- Waterproof RatingIP20
- Accessories6
- Installation Optionsor (Yes )
- Power Supply120to240 VAC, 12 VDC
- Power Status IndicatorLED
- Weight2.45 (No )
- Specification 12 Yes
- Sensor TypeKtypethermocouple (RS030)
Features
- DisplayLCD
- Alarm FunctionYes
- RelayYes
- Calibration OptionsN100, N300, N400
- ChannelsCH1:
- Battery TypeYes
- Power Status IndicatorYes
- Auto CalibrationYes
Attributes
- Operating TemperatureTemperature 0 ~ 50°C, Humidity 0-95%RH non-condensing
- Storage TemperatureTemperature -20 ~ 60°C, Humidity <80%RH non-condensing
- DimensionsRugged Black ABS Case, Polycarbonate Door, Aluminum Dial
- Weight2.45 lbs (without batteries)
- Battery Type4 x C Batteries
