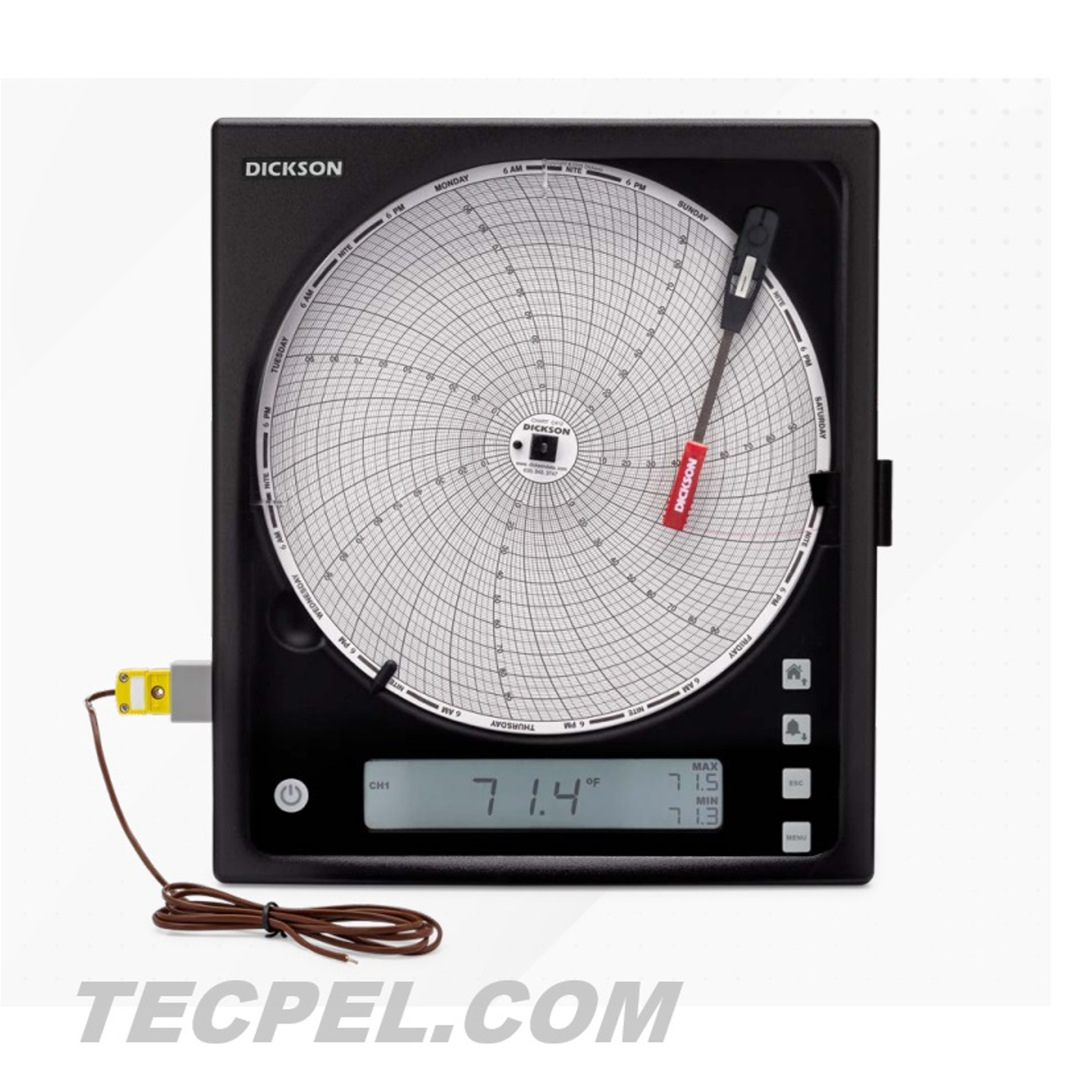

8-inch Chart Recorder, One Channel, LCD Display, Audible Alarm
Brand
DICKSON
|
Model
KT8-30
|
🇺🇸 USA
Offers a wide temperature range from -300°F to 2000°F and features user-selectable recording time frames. The replaceable sensor™ design simplifies the calibration process, making it an ideal choice for professional temperature monitoring.
Price
NT$ 29,400
Out of Stock
Views: 553
Description
The Dickson 8-inch Chart Recorder KT8-30 is a high-performance single-channel temperature recorder equipped with an LCD display, designed for various temperature monitoring needs. Its replaceable sensor™ technology simplifies calibration and features an audible alarm for immediate user notification. This recorder is suitable for laboratories, warehouses, or any environment requiring precise temperature monitoring.
Specifications
- Dimensions9 3/8" x 2 3/4" x 10 1/8"
- Temperature Range-300°F to 2000°F (-185°C to 1093°C)
- Accuracy±1.8°F -300°F to 122°F (±1°C -185°C to 50°C), ±3.6°F (±2°C)
- Sensor TypeKtypethermocouple(RS030)
- Relative Mode0-95% RH, non-condensing
- Operating Temperature32°F to 120°F (0°C to 50°C)
- Specification4 C
- Battery Life1
- ChannelsCH1:
- Waterproof RatingIP20
- Power Supply120to240 VAC, 12 VDC(INTL ).
- DisplayLCD
- Weight2.45
- Specification 12 Yes
Features
- DisplayLCD
- Alarm Function/
- Sensor TypeKtypethermocouple(RS030)
- Specification24hours/7days
- Calibration OptionsN100, N300, N400
Attributes
- Body MaterialDurable black ABS plastic, polycarbonate door, aluminum dial
- Waterproof RatingIP20
- AccessoriesAC adapter, red pen, 4 C batteries, quick start guide, and Replaceable Sensor™ (charts sold separately)
- Installation OptionsFree-standing or wall-mount (with mounting holes)
- Power Supply120 to 240 VAC, 12 VDC (INTL plug available); AC Adapter
