UDP3305S-E 328W 4-Channel Programmable Linear DC Power Supply (Education)

Brand UNI-T | Model UDP3305S-E | 🇨🇳 China

328W 4-Channel Programmable Linear DC Power Supply Education USB LAN RS-232 SCPI

A 328W four-channel programmable linear supply with dual 0–30V/5A outputs, 10mV/1mA resolution, one-key series/parallel, List/delayer, and extensive remote control.

Downloads

UDP3000S Series Datasheet V1.0 V1.0 (2024-10-10)UDP3000S Series User Manual V1.1 V1.1 (2024-10-25)UDP3000S Series User Manual (German) V1.0 V1.0 (2024-10-28)UDP3000S Series Programming Manual V1.1 V1.1 (2024-10-25)

UDP3000S Firmware V1.17 V1.17 (2025-07-03)

Out of Stock

The UDP3305S-E is the education variant of the UDP3000S Performance Series 328W four-channel programmable linear DC supply. CH1/CH2 each provide 0–30V/5A, CH3 provides 0–6V/3A, and CH4 is a 5V/2A USB output. Its 10mV/1mA setting resolution suits electronics teaching labs, general R&D benches, and automated testing. The 4.3-inch TFT plots voltage, current, and power in real time, while one-key CH1/CH2 series operation reaches 60V and parallel operation reaches 10A. USB, LAN, RS-232, Digital I/O, SCPI, and the built-in web server simplify multi-station and scripted workflows.

Supply typeLinear
Output channels4 (CH1, CH2, CH3, and USB CH4)
Total output power328W
CH1/CH2 output0–30V, 0–5A
CH3 output0–6V, 0–3A
CH4 USB output5V ±0.25V, 2A
Setting resolutionVoltage 10mV; current 1mA
Line regulationCV ≤0.01% + 2mV; CC ≤0.01% + 250μA
Load Regulation≤0.01% + 2mV
Voltage ripple and noise<350μVrms / 2mVpp (5Hz–1MHz)
Current Ripple≤2mArms
Transient response≤50μs (50% load change, minimum load 0.5A)
Programming accuracyVoltage ±(0.3% + 20mV); current ±(0.2% + 5mA)
Readback accuracyVoltage ±(0.1% + 20mV); current ±(0.15% + 5mA)
Readback resolutionVoltage 10mV; current 1mA
CH1/CH2 series/parallelOne-key series up to 60V; one-key parallel up to 10A
Display4.3-inch TFT LCD with real-time voltage/current/power waveforms
List/delayer/preset10 List profiles, 10 delayer files, and 5 presets; series manual also lists up to 2048 points and 99,999 cycles
CommunicationUSB Host, USB Device, LAN, RS-232, and Digital I/O; SCPI and web-server control
Command processing time<10ms

Education-grade value10mV/1mA setting resolution with the display, protection, and automation features of the UDP3000S platform
Four isolated outputsCH1/CH2, CH3, and USB CH4 power analog, digital, and device rails at the same time
One-key series/parallelCombine CH1/CH2 up to 60V in series or 10A in parallel without external jumpers
Low-ripple linear output<350μVrms/2mVpp for sensitive analog circuits and sensor work
Real-time waveform displayThe 4.3-inch TFT plots voltage, current, and power
List/delayer automationWaveform templates, output sequences, delays, and stored setups support repetitive tests
Full remote controlUSB, LAN, RS-232, Digital I/O, SCPI, and browser-based web-server control
Comprehensive protectionOVP, OCP, OTP, configurable monitor conditions, and keyboard lock

Dimensions (W×H×D)355 × 168 × 240 mm
Weight10.2 kg
AC input110/120/220/230V AC, 50/60Hz, 600W Max
PositioningUDP3000S Performance Series education variant; 10mV voltage-setting resolution versus 1mV on UDP3305S

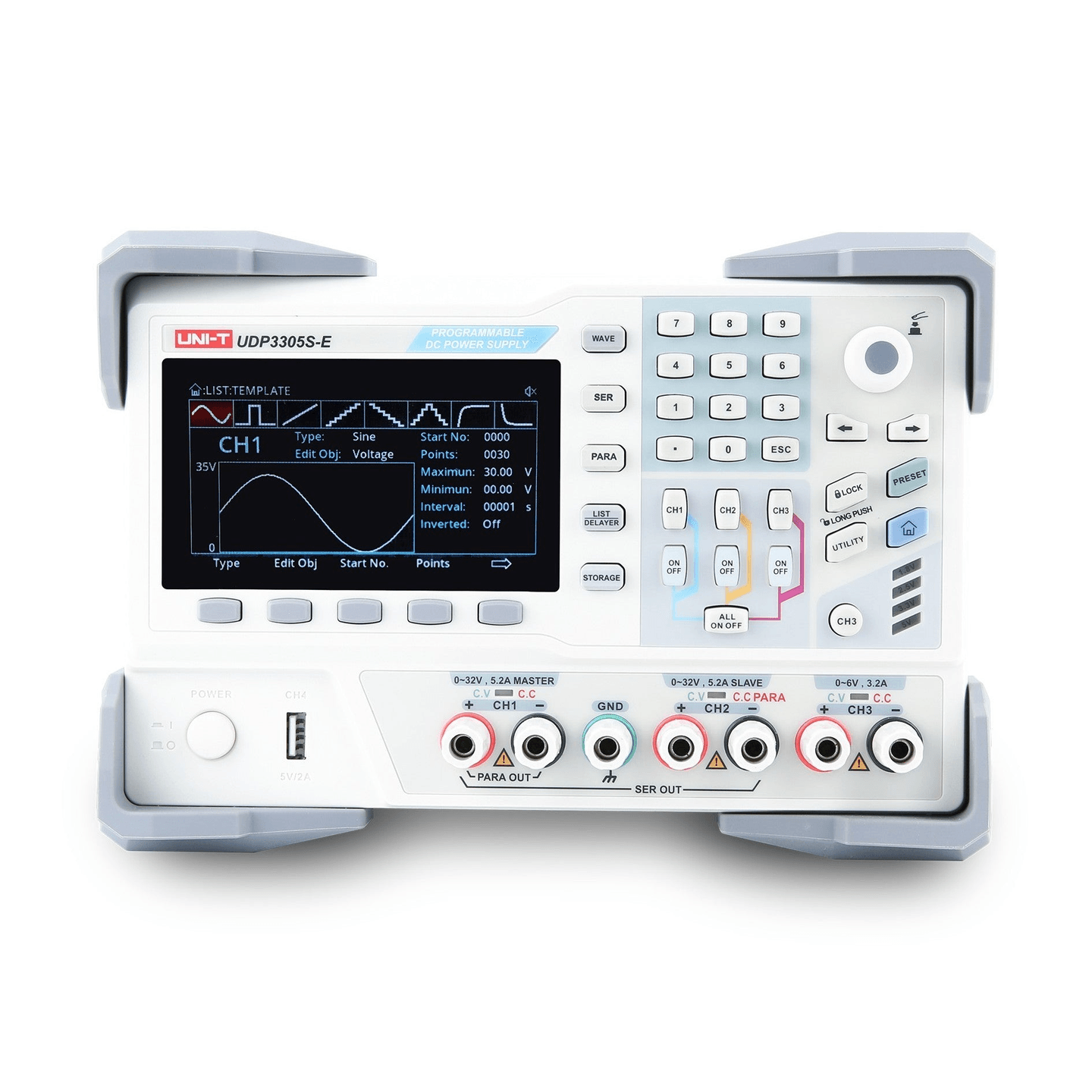

Front-panel marking versus rated outputOfficial images show CH1/CH2 0–32V/5.2A and CH3 0–6V/3.2A on the panel; official product ratings are 0–30V/5A and 0–6V/3A
AccessoriesRegional power cord, USB data cable, and quick-start guide; test leads depend on region/package
CertificationCE and cTUVus (US product page)
Warranty (regional difference)US product page: 3+2 years; actual coverage follows TECPEL quotation/sales terms
Official documentationUDP3000S Series data sheet, English/German user manuals, and programming manual
FirmwareV1.17 (2025-07-03); confirm the hardware revision before updating
