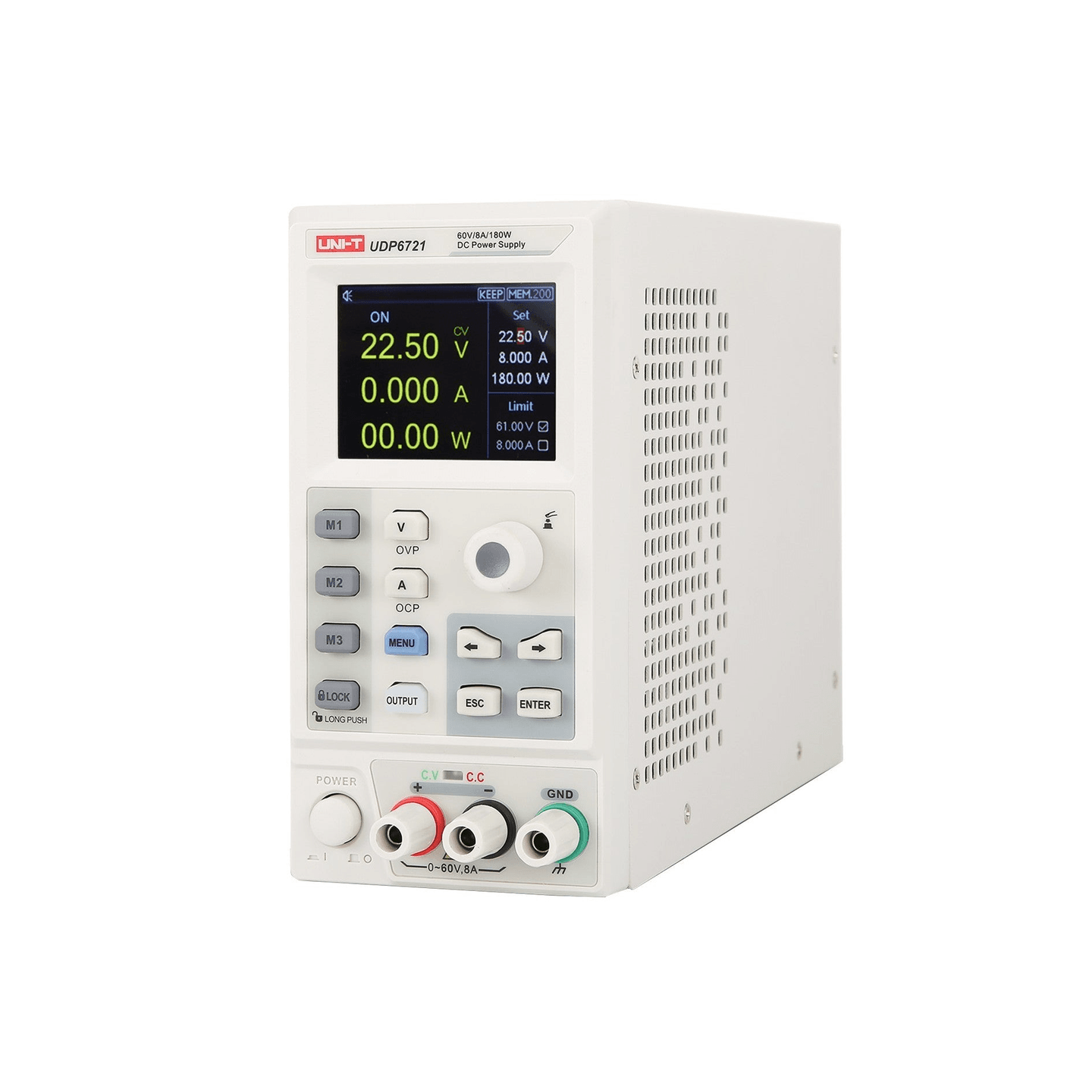

UDP6721 180W 60V/8A Programmable DC Switching Power Supply

Brand UNI-T | Model UDP6721 | 🇨🇳 China

180W 60V 8A 1-Channel Programmable Switching DC Power Supply RS-232 SCPI

A single-channel 180W programmable DC switching supply with 0–60V, 0–8A wide-range output, RS-232/SCPI, remote sense, List/delayer modes, and OVP/OCP/OTP protection.

Downloads

UDP6700 Series Datasheet V1.0 V1.0 (2024-08-29)UDP6720/UDP6721 User Manual V1.0 V1.0 (2024-10-25)UDP6720/UDP6721 User Manual (German) V1.0 V1.0 (2024-10-28)UDP6700 Series Programming Manual V1.0 V1.0 (2024-10-25)

Out of Stock

The UDP6721 is a single-channel 180W programmable DC switching power supply with a 3.0 power-ratio architecture that operates within a 0–60V, 0–8A, 180W output envelope. It is designed for product development, board debug, battery simulation, and production testing. A 2.8-inch full-color LCD shows voltage and current simultaneously, while 10mV/1mA resolution, remote sense, RS-232, and full SCPI control support automated benches. List/delayer functions, a smart fan, 600 stored settings, and OVP/OCP/OTP protection support both interactive and scripted workflows.

Supply typeSwitching
Output channels1
Rated power180W
Output Voltage0–60V
Output Current0–8A
Wide-range envelopeUp to 3A at 60V or 8A at 22.5V; power ratio 3.0
Setting resolutionVoltage 10mV; current 1mA
Load RegulationVoltage <0.01% + 5mV; current <0.01% + 5mA
Line regulationVoltage <0.01% + 5mV; current <0.1% + 5mA
Programming accuracyVoltage <0.05% + 10mV; current <0.3% + 5mA
Readback accuracyVoltage <0.05% + 10mV; current <0.3% + 5mA
Readback resolutionVoltage 10mV; current 1mA
Ripple and noiseVoltage <5.0mVrms; current <8.0mArms
Temperature CoefficientVoltage ≤100ppm/°C; current ≤200ppm/°C
Display2.8-inch full-color LCD, 4-digit display
List/delayer capacity (source difference)Global V1.0 manual: 48 points each; US product page: 9 list steps / 9 trigger groups
List/delayer cycles (source difference)Global V1.0 manual: 1–999 or infinite; US product page: 1–9,999
Setting memory600 total; global manual says 200 each in M1/M2/M3, while the US page lists 100/100/400
Control and compensationRS-232 (SCPI), remote sense

3.0 power-ratio wide-range outputTrades voltage and current within the 180W power envelope to cover more load conditions
List/delayer automationPrograms voltage, current, dwell time, and output state sequences for cycling and power-up tests
600 stored settingsThree memory keys provide quick storage and recall of common voltage/current setups
Remote senseMeasures at the load terminals to compensate for voltage drop in long leads
RS-232/SCPI remote controlHost software or scripts can control output, protection, List, memory, and readback functions
OVP/OCP/OTP protectionTurns the output off on over-voltage, over-current, or over-temperature events
Smart fanFan speed follows load and internal temperature
Software calibrationSoftware-based calibration supports traceability and maintenance

Dimensions (W×H×D)87 × 174 × 255 mm
Weight (source difference)Global data sheet: <2.5 kg; US product page: 2.5 kg
AC input110V (±10%) / 220V (±10%), 50Hz/60Hz
Operating temperature (source difference)Global V1.0 manual: 0–45°C; US product page: 0–40°C
Operating Environment Humidity20%–80% RH, non-condensing
Storage Temperature-20–70°C
Altitude≤2000m
Pollution degree2
CertificationCE and UKCA (global series data sheet)
Included items (US version)Regional power cord, RS-232 cable, quick-start guide, and factory calibration certificate; PC software is downloaded
Optional test leadsUT-L0615-OO, UT-L0110-BU, UT-L0312-UU, UT-L0320-UU, UT-L0110-BB, UTE-L16C
Supported softwareInstrument Application and UNI-T SDK; latest listed firmware V1.11.0630 (2026-08-12)
