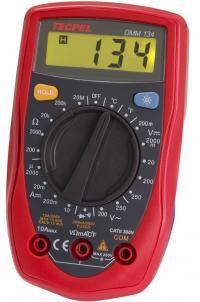

Digital multimeter with temperature(DMM-134)











Palm Size Digital Multimeter










1. 3 1/2 digits, Max 1,999 counts display
2. 7 Functions, 19 ranges
3. Temperature measurement -40oC ~ 1832oC.
4. Resistance Measurement up to 200M Ohm
5. Continuity Beeper
6. Data Hold Function.



Spécifications:


  • DMM 134 SPECIFICATIONS

    • Palm Size Digital Multimeters

    • SPECIFICATIONS Basic Functions Range Best Accuracy

    • DC Voltage  2000mV/20V/200V/250V (0.5%+2)

    • AC Voltage 200V/250V (1.2%+10)

    • DC Current 2000mA/20mA/200mA/10A (1%+2)

    • Resistance 200Ohm/2000Ohm /20kOhm /200k Ohm/20MOhm (0.8%+2)

    • Temperature (oC) -40oC ~ 1000oC (1%+3)

    • Temperature (oF) -40oC ~ 1832oC (1%+4)

    • Special Functions

    • Diode

    • Continuity Buzzer

    • Data Hold

    • Display Backlight

    • Low Battery Display

    • Input Impedance for DC

    • Voltage Measurement Around 10M ohm

    • Max. Display 1999



  • GENERAL CHARACTERISTICS

    • Power 9V Battery (6F22)

    • LCD Size 48 x 16mm

    • Product Colour Yellow and Grey

    • Product Net Weight Around 156g

    • Product Size 130 x 73.5 x 35mm

    • Standard Accessories Test Lead, Battery, English Manual,

    • Point Contact Temperature Probe, Holster

    • Standard Individual Packing Gift Box

    • Standard Quantity Per Carton 60 pcs

    • Standard Carton Measurement Around 486 x 345 x 310 mm

    • (Around 0.052 CBM Per Standard Carton)

    • Standard Carton Gross Weight Around 18kg

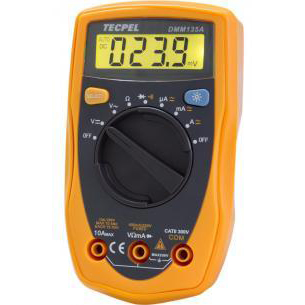

Palm autoranging Digital Multimeter(DMM 135A)


Palm Size Digital Multimeter DMM-135A RoHS New CE

Digital Multimeter 3 3/4 Digits, 3,999 Counts
8 functions, 21 ranges
Continuity Beeper
Diode Test
Auto Ranging

Digital Multimeter

DMM 135 Features:
1. 3 3/4 Digits, 3,999 Counts
2. 8 functions, 21 ranges
3. Continuity Beeper
4. Diode Test
5. Auto Ranging

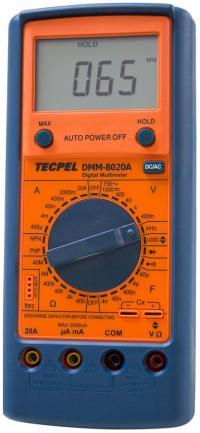

DMM-8020A-Digital Multimeter(DMM-8020A)

Heavy Duty Digital Multimeter

3 3/4 DMM+Capacitance

Model:DMM 8020A

Features :

☆ 0.5% DC V accuracy

☆ 3.999 count LCD display
☆ Resistance to 40 MΩ
☆ Frequency to 4 MHz
☆ Capacitance measurement
☆ Logic Test
☆ Transistor hFE test
☆ Audible continuity test
☆ Drop-proof to 10 ft.
☆ Overload protection
☆ Meet IEC-348 and UL-1244 standard


*  Input impedance 10M Ohm


*  2-year warranty Model : DMM 8020

Specifications :




DC Voltage Ranges:
400mV,4V,40V,400V,1000V ±(0.5%+1dgt)

AC Voltage Ranges:
400mV,4V,40V,400V,750V ±(1.2~2%+3dgts)

DC Current Ranges:
40mA,400mA, 20A ±(1~3%+3dgts),

AC Current Ranges:
40mA,400mA, 20A ±(1.5~3.5%+4dgts)

Resistance Ranges:
400Ω,4kΩ,40 kΩ,400 kΩ,4MΩ, 40MΩ,±(0.75~2%+5dgts)

Capacitance Range:
4nF,40nF,400nF,4uF,40uF, ±(3%+10dgts)

Frequency Range:
4KHz,40KHz,400KHz,4000KHz, ±(0.1%+4dgts)

*Diode Test * Transistor test (hFE) * Logic Test

General

Power Requirement:
One 9V battery

Dimensions:
7.5""x3.4""x1.5"" (190x86x38mm)

Weight:
17 oz(482g)

Accessories:
Test leads, holster, battery, and owners manual




3 3/4 Pocket Digital Multimeter(DMM-113C)

DMM-113C is a portable, compact, lightweight 3 3/4 Digit Auto range pocket digital multimeter, fully functional, stable performance, high accuracy, low power consumption, the new structure, safe, reliable, easy to operate, Easy to use,  durable for the majority of users. This is the ideal measurement instrument and can be used in homes, schools,  telecommunications, manufacturing, petroleum, power, chemical and other fields, circuit / electrical equipment maintenance and repair.

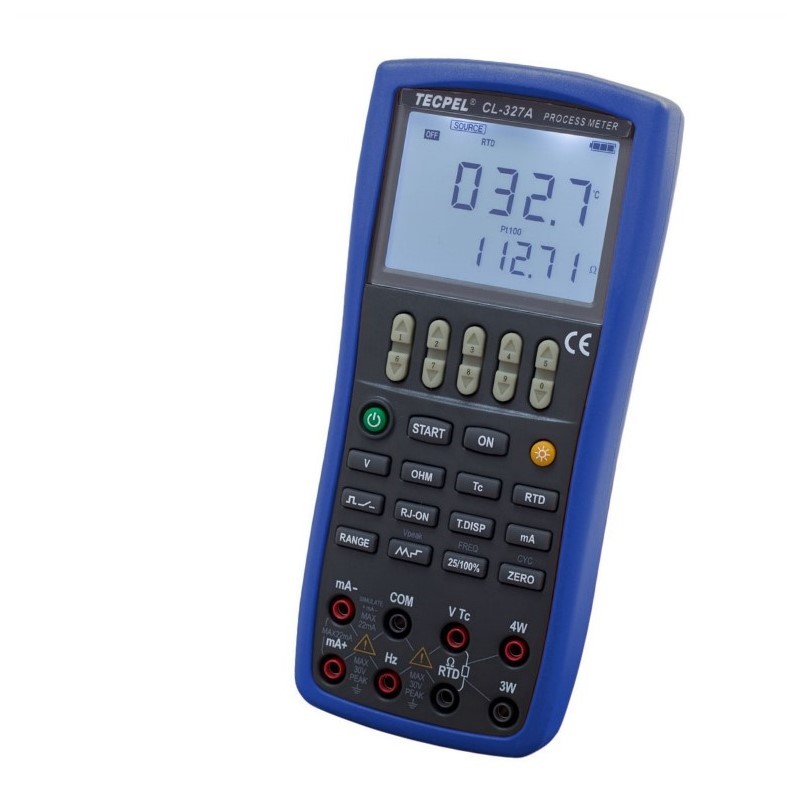

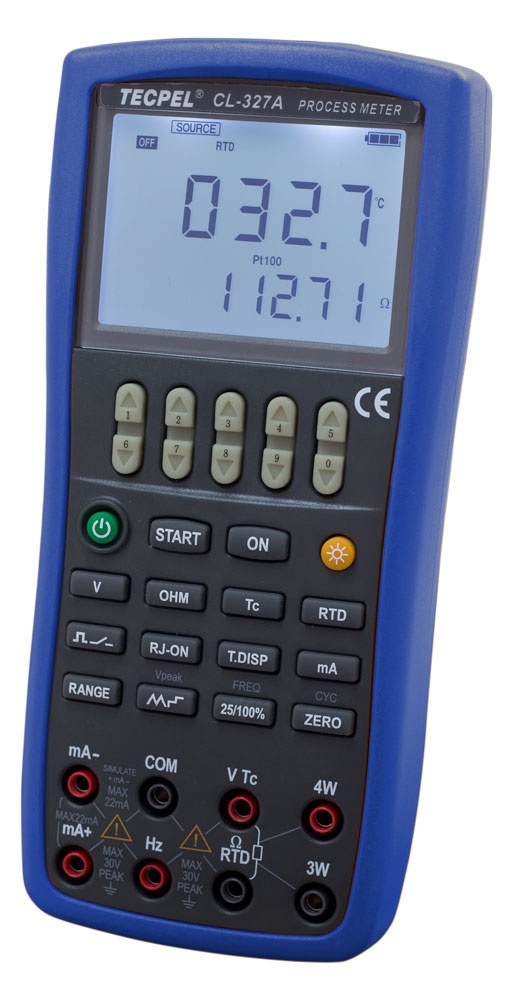

Process Calibrator(CL-327A)

The  NEW  Tecpel® CL-327A  is a battery-powered, hand-held process calibrator that allows process technicians to simulate and source  variables signals. Output signals including DC voltage, DC current, ohms, analog transmitters, thermocouple, RTD, frequency, pulse, Switch On-OFF,  are widely used in measurement and calibration for industrial field and laboratory application, it is one of necessary tools used to test and calibrate industrial automation systems and instruments. Get your job done fast and get it done precisely at affordable price. Your right choice!



Process Calibrator CL-327A


general characteristics:
1, The basic accuracy of the output of up to 0.02%, the output is displayed as 6 digit
2, The output functions: DC voltage, DC current, ohms, analog transmitters, thermocouple, RTD, frequency, pulse, Switch On-OFF
3, The DC current output, can provide 25 percent and 100 percent of manual stepping, automatic step and auto ramp output function
4, The thermocouple output, can provide high-precision automatic cold junction compensation, ℃ or ℉ temperature display
5, Outside with high-precision temperature probe, accuracy: ± 0.2 ℃
6, Large-screen LCD display multiple data can be displayed simultaneously: DC current and % values, thermocouples, temperature values of thermal resistance and the corresponding indexing values, etc.
7, The operating performance is superior keyboard configuration, set the value corresponding to the output bit  setting change keys and LCD display.


Working temperature and humidity
              0 to 50ºC, ≤80% RH non-condensing
              40 to 50ºC, ≤70% RH
Storage temperature and humidity
             -25 To 60ºC, ≤90% RH non-condensing
Display and backlight
              * Segment LCD dual display
              * White LED backlight
power supply
               * 4 x 1.5V AAA alkaline batteries
               * Automatic shutdown: can set auto-off time from 0 to 60 minutes
Size and Weight
              205 × 95 × 42 (mm), approximately 500g

Multimeter - Digital Multimeter(DMM-139)



The new DMM-139 offers high reliability , modern design , ease of use and overall functionality. The complete series is equipped with a true-rms measurement function ( TRMS) , as well as an NCV function (non- contact voltage detection) equipped for non-contact voltage detection .

Functions and Features:
• True RMS measurement
• Varied Frequency ( VFD)
• Capacitance measurement up to 100MF
• Clamp connection for up to 60A AC / DC ( pliers not included)
• Temperature measurement up to 1000 ° C
• Non-contact voltage test with Singal and LED display
• Rubber Holster for rough working conditions and falls of up to 2m
• Overvoltage protection
• Measurement category : CAT III 600V
• Automatic range selection
• Auto power off




Analog High Voltage Meter HVP-40M(Tecpel HVP-40M)

Analog High Voltage Test Probe test meter



Model: HVP-40M Features:

DC 40KV CAT II Pollution 2

600M Ohm Impedance

25KV ± 2%, 40KV ± 3%

T.C. 200 ppm/°C.

Positive Polarity only.

Resolution 1KV

No Need power.

CE,   IEC1010

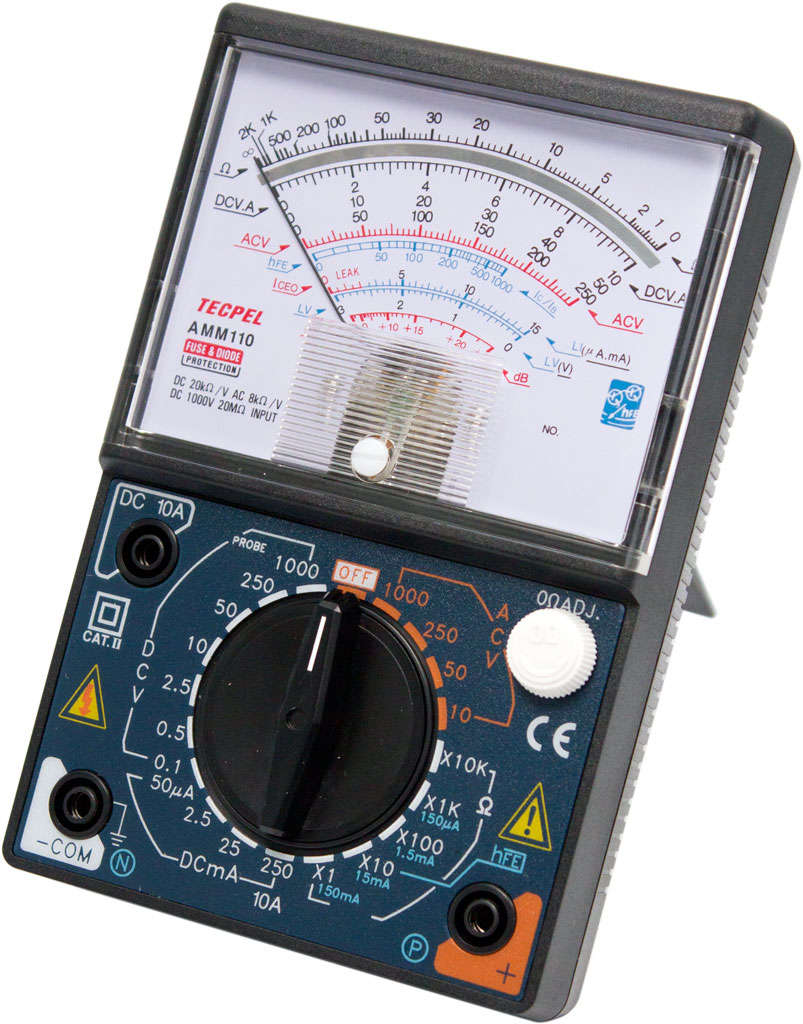

Analog Multimeter,(AMM 110,)

Analog Multimeter

Model:AMM 110 ;










TECPEL CO., LTD
NO, 13, ALLEY 5, LANE 31 CHUNG-TEH STREET,
TAIPEI 110, TAIWAN, R.O.C.
E-MAIL: sales@tecpel.com Web-site: http://www.tecpel.com
TEL:2-27375866
FAX:886-2-27373343

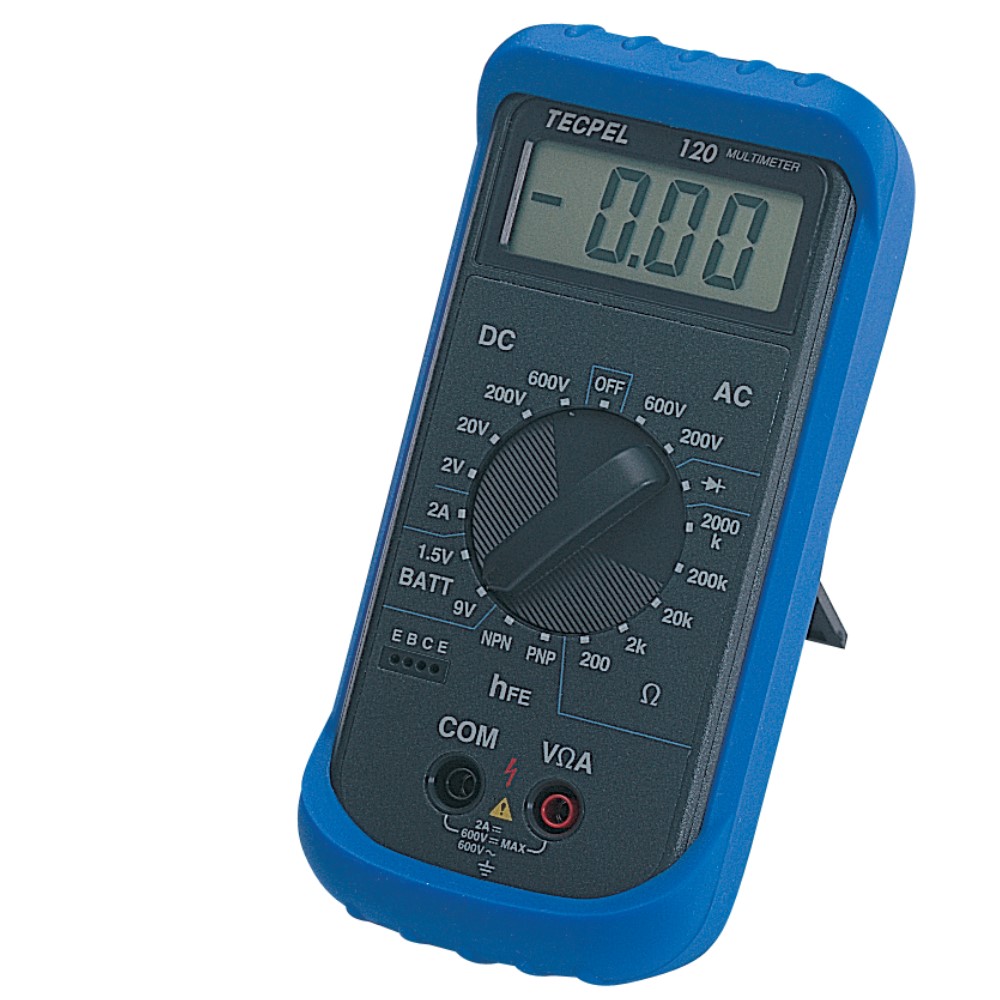

Low Cost Multimeter(DMM 120 / DMM 123)

Low Cost Multimeter

Low Price Digital Multimeter

Model:DMM 120

Features :

1. 3-1/2 Digit, 1.2% basic accuracy

2. 7 Functions, 17 Ranges
3. DCV, ACV, DCA and OHMS
4. hFE and diode check
5. Battery test with load
6. Compact, rugged and safety design


Low Cost Multimeter

DMM + Capacitance

Model:DMM 123

Features :

1. 3-1/2 Digit, 0.8% basic accuracy
2. 9 Functions, 36 Ranges
3. Capacitance 2nF~20μF
4 Instant continuity beeper
5. Compact, rugged and safety design
6. 10 Amps DC/AC fuse protected



----------------------------------------
