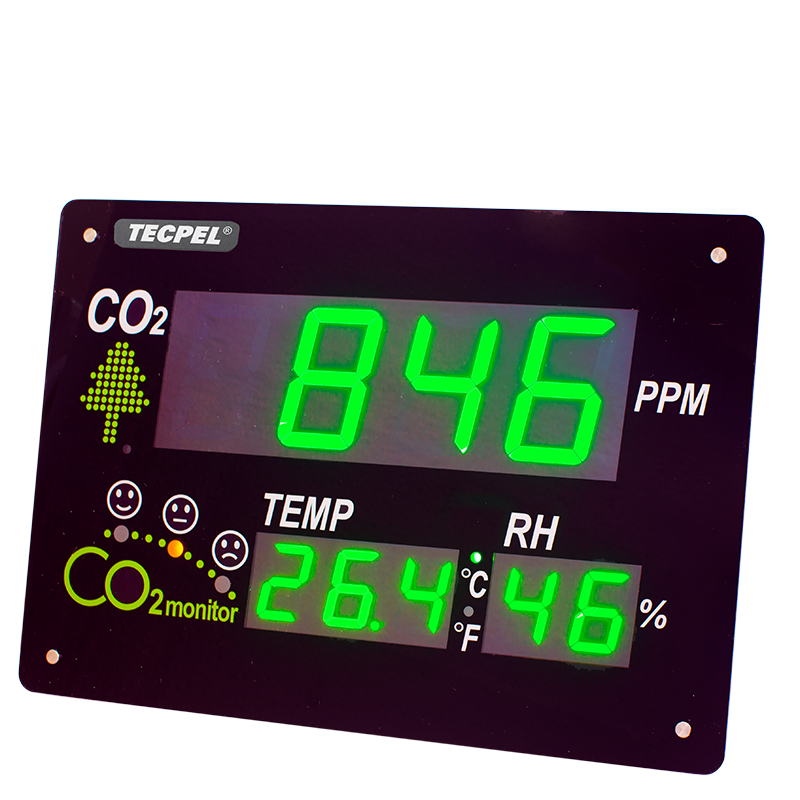

Temperature Humidity CO2 meter LED Monitor with Data logger(TRH-3308A/ TRH-3358A)

-Complete environmental monitoring and alarm solution
-Wall-Mounted LED type for easy reading
-Alarm set for CO2 (TRH-3358A) and Temperature and Humidity
-USB Datalogging Capacity 65,000 records
-Real-time data display

Wireless/Wired temperature humidity data logger(TR-72nw, TR-72wf, TR-72nw-S, TR-72wf-S)

T&D TR-72nw-S High accuracy Wired LAN High Accuracy Temperature and Humidity Data Logger



T&D TR-72wf-S  High accuracy Wireless Temperature and Humidity Data Logger


If you have a wired LAN environment that can use the Internet, you can automatically send the recorded data to the free cloud service ""Ontario Web Storage"" and check it with your computer, smartphone, tablet.
Recorded data can also be acquired via USB communication with a personal computer.


set content


Main body TR - 72 nw, temperature and humidity sensor (THA - 3001), 2 alkaline AA batteries, instruction manual


* USB communication cable and software CD-ROM are not included.





  • 1 Temperature channel: 0 to 55°C

  • 1 Humidity channel: 10 to 95% RH

  • External thermistor temperature sensor

  • Accuracy: ±0.5°C and ±5% RH

  • Logging capacity: 8,000 data sets

  • Measurement resolution: 0.1°C and 1% RH

  • Built-in 802.11b wireless interface

  • View data on mobile devices via Thermo App

  • WebStorage Service available


Please refer to the data sheet attached  herewith below.


Highly Accurate Hygrometer / humidity thermometer(DTM-550)

Highly Accurate Hygrometer

Model:DTM 550




TECPEL CO., LTD

E-MAIL: sales@tecpel.com Web-site: http://www.tecpel.com
TEL:2-27375866
FAX:886-2-27373343

Wired LAN Temperature and Humidity Data Logger(TR-71nw TR-72nw TR-72nw-H)

The New Thermo Recorder: TR-7nw Series



T&D Corporation is proud to release the temperature and humidity data logger TR-71nw/72nw: a new LAN-based data logger for cloud storage. In addition to the existing wireless LAN model TR-71wf/72wf, we added the wired-LAN model with the same basic features to offer a choice of network connection methods.

By using T&D WebStorage Service*1, a cloud service provided by T&D free of charge, it is possible to access stored data from your PC and mobile devices anytime from anywhere. Simply connect the data logger to the Internet with a LAN cable, and it automatically*2 starts uploading recorded data to T&D WebStorage Service, thus providing a remote access solution without the need for manual intervention.



*1: Internet access via LAN is required to access T&D WebStorage Service.

*2: In the LAN environment where DHCP can be used.



Features




  • Automatic Upload of Recorded Data to T&D WebStorage Service via Wired LAN

  • Temp/Humidity Alarm Mail Transmission from T&D WebStorage Service

  • Direct Data Download via USB

  • Temperature and Humidity Measurement in a Wider Range with Greater Accuracy (TR-72nw-H)

  • Battery Operation for up to 1.5 years with one AA Alkaline Battery

  • Automatic Upload of Recorded Data to PC

TandD TR-71nw-72nw-72nw-H wired Lan Humidity and Temperature Data Logger(TR-71nw TR-72nw TR-72nw-H)

The New Thermo Recorder: TR-7nw Series


T&D Corporation is proud to release the temperature and humidity data logger TR-71nw/72nw: a new LAN-based data logger for cloud storage. In addition to the existing wireless LAN model TR-71wf/72wf, we added the wired-LAN model with the same basic features to offer a choice of network connection methods.
By using T&D WebStorage Service*1, a cloud service provided by T&D free of charge, it is possible to access stored data from your PC and mobile devices anytime from anywhere. Simply connect the data logger to the Internet with a LAN cable, and it automatically*2 starts uploading recorded data to T&D WebStorage Service, thus providing a remote access solution without the need for manual intervention.


*1: Internet access via LAN is required to access T&D WebStorage Service.

*2: In the LAN environment where DHCP can be used.


Features



  • Automatic Upload of Recorded Data to T&D WebStorage Service via Wired LAN

  • Temp/Humidity Alarm Mail Transmission from T&D WebStorage Service

  • Direct Data Download via USB

  • Temperature and Humidity Measurement in a Wider Range with Greater Accuracy (TR-72nw-H)

  • Battery Operation for up to 1.5 years with one AA Alkaline Battery

  • Automatic Upload of Recorded Data to PC

Digital Indoor Outdoor Thermometer with Beeper Alarm(DTM-311A)

Deluxe Indoor Outdoor Thermometer  DTM-311A


Model No : DTM-311A


Description: Indoor outdoor thermometer


Measurement Range : 50 °C~70 °C (–58 °F~158 °F)


Accuracy : ±1°C( ±1.8 °F)


Dimension : 120 (H) x 100 (W) x 24 (D) mm


 Features:


1. Dual row display for easy reading
2. Large LCD display with digit height 35 mm
3. Flip out stand and hanging hole at the back of the unit
4.   Meters sensor wire with fixed probe for outdoor temperature          measurement




​This unit  is designed to monitor temperature for both indoor and outdoor use.


With its external sensor for measuring temperature of refrigerators, coolers, freezers


Indoor outdoor temperature display


§  Adjustable Hi/Low alarm for indoor and outdoor temperature


§  Instance reading of Max./Min. temperature record or High/Low alarm setting


§  Alerting alarm beeps and flashing symbol display when temperature reaches/beyond the pre-set limit


§  Temperature unit °C/°F selectable


§  Dual row display for easy reading


§  Large LCD display with digit height 35 mm


§  Flip out stand and hanging hole at the back of the unit


§  3 Meters sensor wire with fixed probe for outdoor temperature measurement







Temperature and relative Humidity Meter(Tecpel DTM-320)



Temperature Humidity   meter

Prdoduct ID: DTM-320

Humidity/Temperature  Meter
Model: DTM-320


Features:



  • Temp:-20°C ~ 60°C (-4°F ~ 140°F );


     Humidity: 0 ~ 100% RH



  • 4 Digit, Triple display.

  • K-type Termocouple.

  • Reading hold °C or °F annunciators.

  • MAX, MIN. function.

  • Auto power off.

  • RS-232 Interface

  • Automatic low battery indication.




Ordering Information:
Model : DTM-320
 with RS-232 interface
Humidity/Temperature Meter


(1)  Temperature /Humidity LCD Display




2)  Holes for RS-232 (or USB ) cable, DC 9V AC adapter







(3) Function Key Buttons


4) Trippot  Stand hole







(5) Battery Cover


6) Panel operation indication


7) Gift box and Deluxe plastic carrying case



Temperature and Relative Humidity meter
Q and A:



1) Our customer ask for Accuracy of 2% and your have quoted for 2.5%. Please confirm
whether you  can provide suitable model.
No.    Accuracy    is Humidity +-2.5% RH (@ 25 °C  / (77°F)    , 30 ~ 95% RH)

2) Display of Air temperature relative humidity time and date simultaneously required
No,  LCD display cannot have this function but you can see them from software.

3) Please confirm details of display provide by you.
LCD Display.

4) Temperature required .ºC & .ºF, simultaneously or alternatively LCD DISPLAY size
It cannot  be displayed  simultaneously but you can choose one of it.



5) should operate on Supply Voltage: 230 VAC, ±5V,.50Hz, 1 Phase, AC supply.
You can purchase AC 230 V to DC 9V adopter at your country or from us.
(Optional adapter ADP-01 110V, ADP-02 220V)



6) Customer asks in DTM-320 manual, measurement range is 0%~100% but operating
environment is only 0 to 90% non-condensing –> so whether these two information
conflicts?



The sensor measurement range can work for 0~ 100% RH
but the operating environment  0 ~ 90% RH(Non Condensing) is for the meter itself.
There is no conflicts with each other.

Besides, 100% RH is close to water and this will cause meter damaged for
all electronics devices. Therefore, it is recommended to keep the sensor and meter  dry
to extend its reliability and usage life.





Order Information:
DTM-320 Digital Temperature Humidity meter
Minimum order: Negotiable.


Optional accessory:


RS-232 Cable, USB cable , SE-310 (Software)

CO2 monitor(ZG-106)



The ZG106 is a new and low-cost carbon dioxide monitor implementing IR-SoC technology. Its many features include a data logger that can record up to 24 hours of data, a CO2 level alarm, and an extreme level indicator.


The ZG106 accurately detects carbon dioxide levels between 0 to 3000 ppm. By using an in-house ASIC design, Tecpel  has created a CO2 monitor that has an extremely low parts count, attributing to the low cost of the ZG106.

This gas monitor is suitably fit for applications in Indoor Air Quality(IAQ), HVAC, safety, other industries.





Features:
 •Ultra low cost CO2 Monitor achieved by New IR-SoC Technology .
•It uses NDIR technology to improve the long term stability.
•Portable, accurate handheld CO2 Monitor.
•The Alarm mode will sound at 1000 PPM or adjust the alarm level
•Max/Min mode

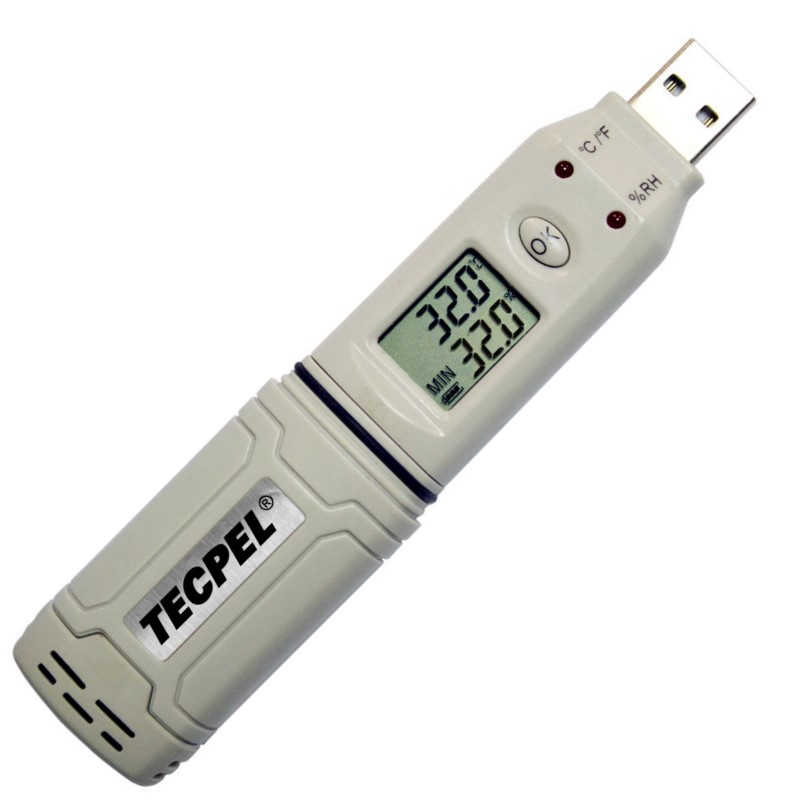

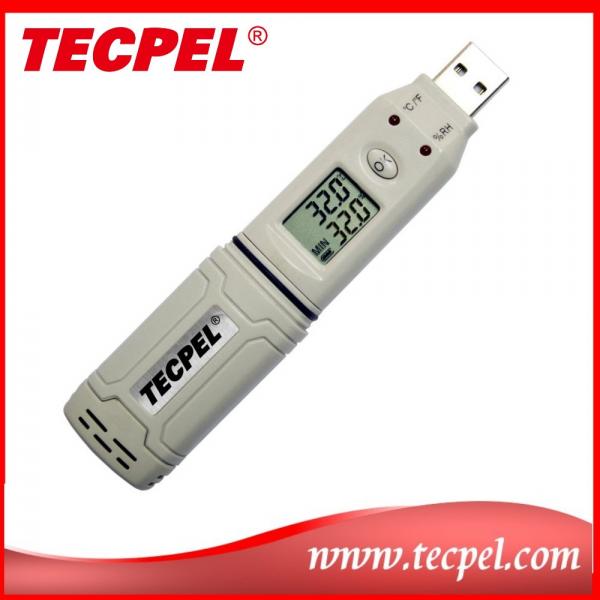

TECPEL Temperature Logger TR-31/ Temperatue Humidity Logger TR-32(TR-31/ TR-32)

TR-31/32 series has USB interface, featuring elegant appearance and compact construction design
for refrigerator , cold-chain transportation, and container transportation monitoring applications.
TR-31/32 adopts user-friendly USB interface, easy-to-mount brackets with screws.
The OK key can help the user check the Max/Min/Current values and the upper and lower limits.


Compact / Warning Signal / Lightweight / Water Resistant!
Wide Temperature Range: -30 deg C to 70 deg C
Large Data Capacity: up to 43,000 Records
Wide Selection of Recording Intervals 2 s to 24 H
Impressive one year battery life
Waning Monitoring function





1. Simply connect to a PC via supplied USB cable to set up data logger.


2. IP Rating : IP 67 Waterproof and dust proof to resist moisture, dew-point temperature and dust.


3. The low energy consumption circuit design.


4. Hi/Low LED blinking Alarm setting.


5. Able to display Max/Min reading.


6. Switchable *C and *F.


7. Dew point calculation via software. (TR-32)


8. Easy operation English software.


9. Low battery indication.


10. Data storage capability: 43,000 points


11. Acrylic holder for easy installation on walls.
