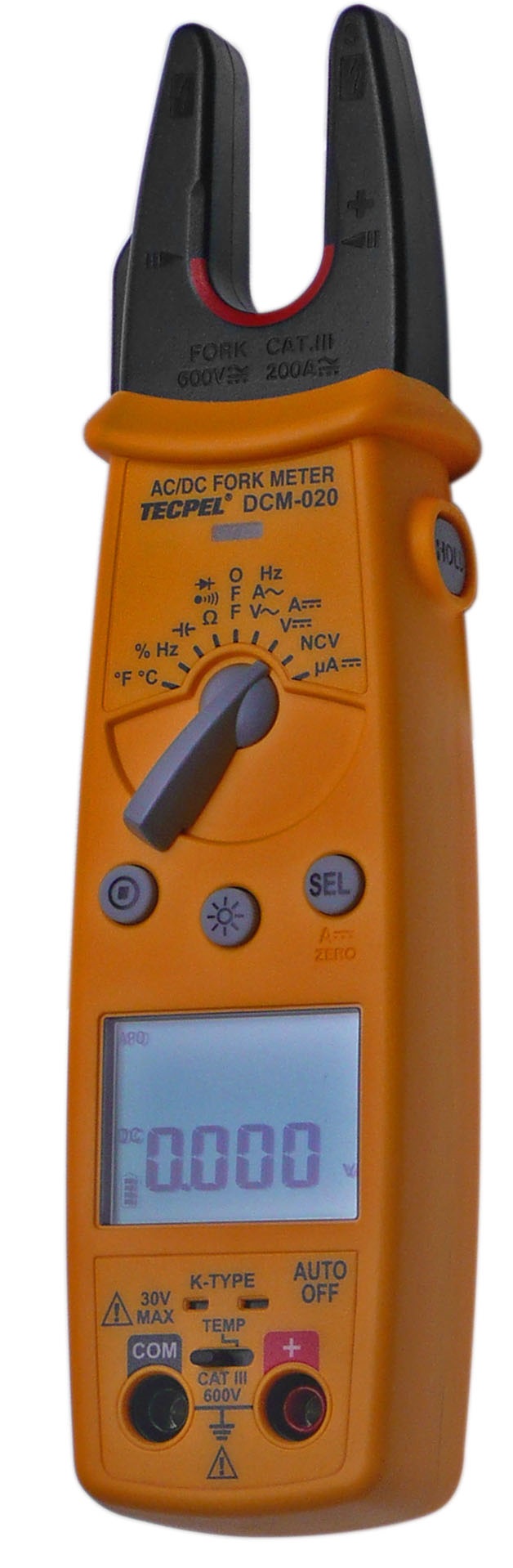

Fork clamp meter dcm020(DCM-020) Product ID: DCM-020

Digital AC-DC Clamp Meter fork
The new fork-shaped opening for easy measurement
Non-contact voltage measurement NCV

Certificate:CE
  • 5000 Carry LCD with maximum reading of 4999
  •  Dual display current, voltage, while simultaneously measure and display
  •  With LCD backlighting and flashlight function
  •  NCV non-contact voltage detection function
  •  automatic transmission, automatic shutdown function
  •  Maximum aperture: 15mm
  •  measurement error prevention switch design
  •  Low battery warning
  •  Size: 202.5H × 51W × 44D / mm
  •  a variety of functions: AC / DC voltage, AC / DC current, resistance, capacitance, Temperature, frequency, period, continuity buzzer, diode, NCV measurements

General Specifications
DC voltage DCV: 500mV/5V/50V/500V/600V
Resolution: 0.1mV
Accuracy: ± (0.5% +2 dgts)
AC voltage ACV: 5V/50V/500V/600V
Resolution: 1mV
Accuracy: ± (1.2% +6 dgts)
DC current DCA: 200A
Resolution: 0.1A
Accuracy: ± (2.0% +5 dgts)
DC current DCuA: 500uA
Resolution: 0.1uA
Accuracy: ± (1.0% +2 dgts)
AC current ACA: 200A
Resolution: 0.1A
Accuracy: ± (2.0% +10 dgts)
Resistance Ω: 500Ω/5KΩ/50KΩ/500KΩ/5MΩ/50MΩ
Resolution: 0.1Ω
Accuracy: ± (1.0% +5 dgts)
Capacitance F: 5uF/50uF/500uF/5mF
Resoution: 1nF
Accuray: ± (3.0% +5 dgts)
Temperature ℃ / ℉: -35 ℃ ~ 500 ℃ / -30 ℉ ~ 932 ℉
Resolution: 0.1 ℃ / 0.1 ℉
Accuracy: ± (1.0% +1 ℃ / 2 ℉)
Frequency Hz: 500Hz/5kHz/50kHz/500kHz/1MHz
Resolution: 0.1Hz
Accuracy: ± (0.1% +5 dgts)
Duty Cycle: 5.0% ~ 95.0% (40Hz ~ 20kHz)
Resolution : 0.1%
Accuracy: ± (2.0% +10 dgts)
Contunity  buzzer: 500Ω
Resolution:  0.1Ω
Non-contact voltage measurement NCV: AC 70V ~ AC 600V (50Hz/60Hz)
