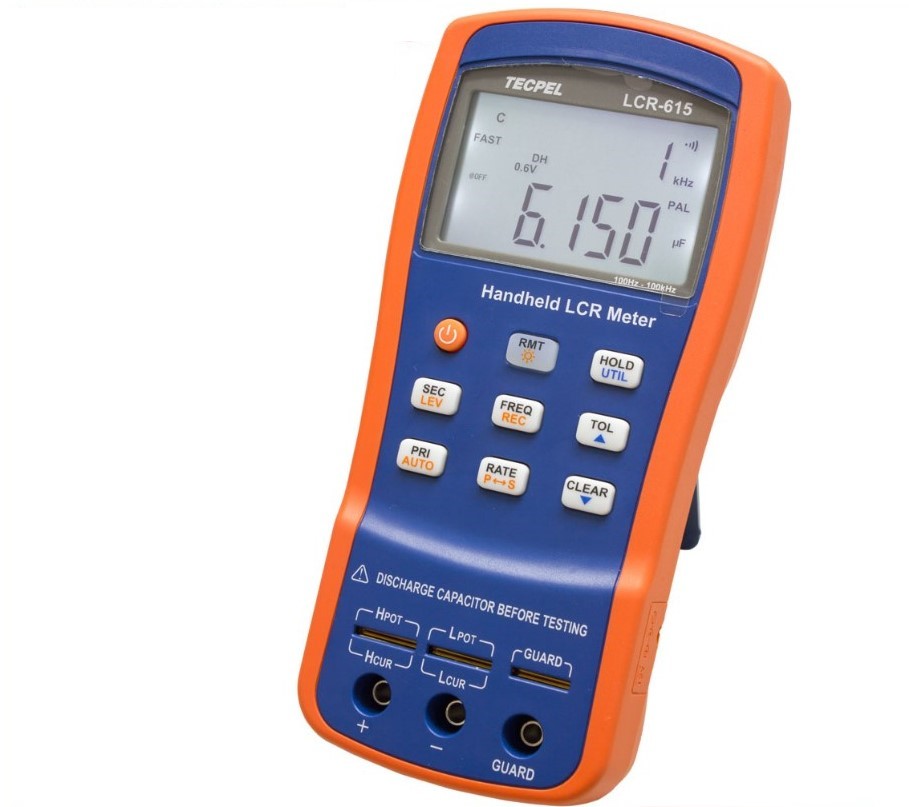

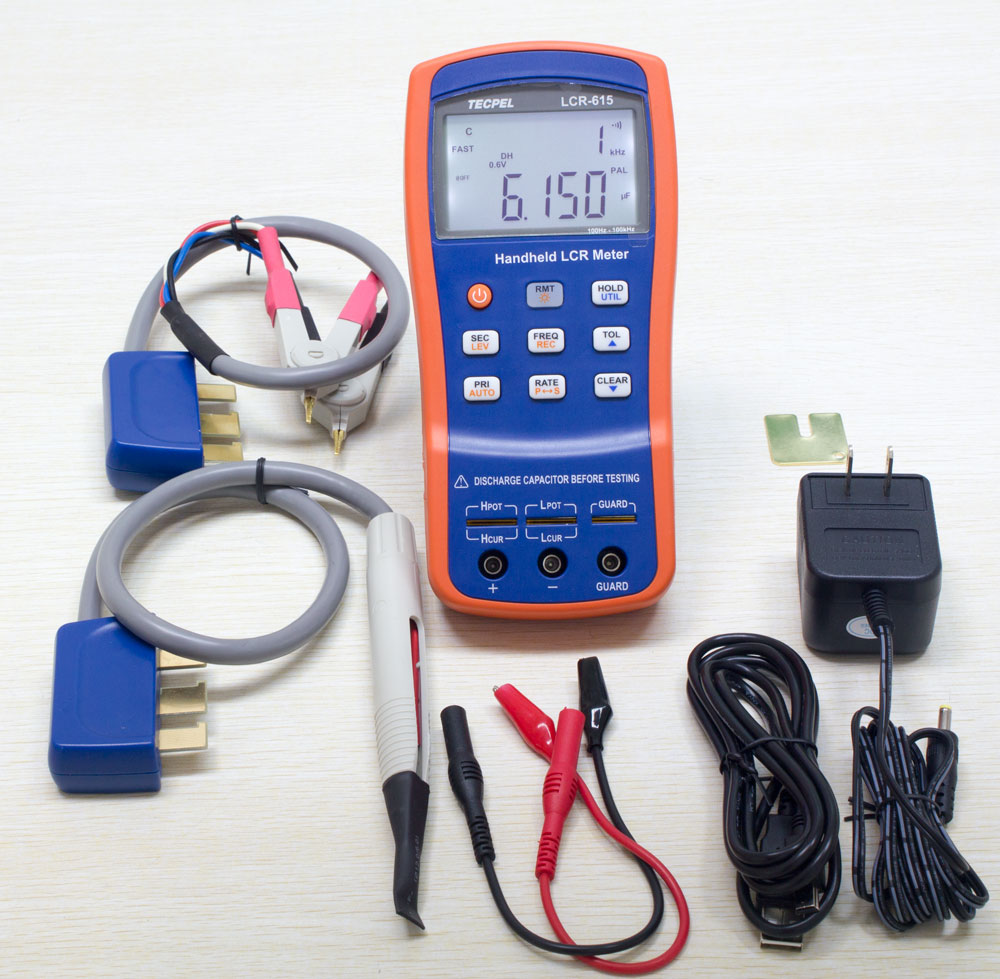

LCR-615-100KHZ-precision-handheld-RLCmeter(LCR-615) Product ID: LCR-615

LCR-615-100KHZ-handheld-RLC meter

Certificate:CE

■ Max. Basic accuracy: 0.1%

■ Maximum test signal frequency : 100kHz

Handheld LCR Meter

Test Frequency:  100Hz, 120Hz, 1KHz, 10K Hz , 100KHz

0.1 %  Accuracy

Features

 Max. Basic accuracy: 0.1%

■ Maximum test signal frequency : 100kHz

■ Selectable test signal level

 With DCR function

 Enhanced protection capability of input terminal impact

 40000 counts for primary parameter, D/Q resolution 0.0001

 Typical ultra-low consumption: 25mA

 Innovatively compatible terminal configuration: 5-terminal test slot and 3-terminal banana jack

 Intellectualized auto LCR function

 AC test speed up to 4 meas/sec (DCR: 3 meas/sec), fast automatic range switch design

 Constant 100Ω output impedance

 Percentage display and 4-tolerance comparator: 1/5/10/20%

 Battery charge in startup & shutdown

 Test terminal protection function

 Data-hold, Max./Min./Average value recording

 Real-time function configuration selection and working condition hold capacity

■ Standard configuration Mini – USB communication interface and SCPI command set

■ Free FastAccess PC communication software on our website

 Gorgeous dual-color cast shell

Brief Introduction

 With its advanced impedance test technology, TECPEL has launched  this new LCR-615 handheld LCR meters. This  LCR-615 currently possess the most powerful functions and outstanding performance in this industry comparable with bench LCR meters. Meanwhile it is the achievement of TECPEL after years of efforts and research in the passive-component testing field. The LCR-615 apply the ultra-low power consumption design and high density SMD assembly techniques and can simultaneously display primary and secondary parameters on a LCD display with backlight. The dual-color shell is gorgeously once shaped; and functions are easy to operate. The test frequency is up to 100 kHz, the readings of primary parameter 40,000 counts and the resolution of dissipation factor 0.0,001. Accurate and convenient measurements of passive-components can be achieved in different occasions for a long time. In order to meet different market demand, multiple signal level and DCR test function are increased on  this LCR-615. The test accuracy can reach 0.1%. With USB interface, This LCR-615  series can conveniently communicate with a PC and be remotely controlled by a PC. In order to satisfy the increasing test requirements for SMD and balance the different needs for performance and price, two types of 4-terminal Kelvin test tweezers are equipped with accessoires  for users’ choice.



Specifications
Model  LCR-615
Function
Test Parameter
Primary parameters: L / C / R / Z/ DCR
Secondary parameters: D / Q / R /θ/ ESR
Equivalent Circuit Series and Parallel
Parameter and
Equivalent Mode Hold, Auto
Ranging Mode Auto
Measurement
Terminals 3-terminal, 5-terminal
Measuring Speed 4meas/sec, 1.5meas/sec
DCR Measuring
Speed ------ 3meas/sec
Calibration Function Open, short
Comparator Function   1%, 5%, 10%, 20%
Input fuse 0.1A / 250V
Interface Mini-USB (virtual serial port)
Test signal
Test Frequency
100Hz, 120Hz, 1kHz, 10kHz, 100kHz
Test Level  0.3 Vrms, 0.6 Vrms, 1 Vrms
Output Resistance 100Ω
Display
Display LCD Primary-Secondary dual display, with backlight (LCR-615)
Reading Max. Primary parameters: 40,000 digits, secondary parameters D/Q Minimum resolution: 0.0001
Basic accuracy   0.1%
Measuring Range
L  0.000μH - 1000.0H
C   0.000pF - 20.000mF
Z/R 0.0000Ω- 10.000MΩ
DCR - 0.0000Ω- 20.000MΩ
ESR 0.0000Ω- 999.9Ω
D 0.0000 - 9.999
Q 0.0000 - 9999
θ 0.00°- ±180.0°
Power Requirements
8.4V Ni-MH 200mAH rechargeable battery (LCR-615)
AC power adapter Input: 110V/50Hz, Output: 12V-15V(100Ω Load)
Standby Currant Max. 11μA
Battery life 16 hours (typical) , new alkaline battery, with backlight off
Auto power off 5min, 15min, 30min, 60min, OFF available; Factory Default : 5min
Low voltage indicator : When battery voltage drops below 6.8V, low voltage indicator turns on.
