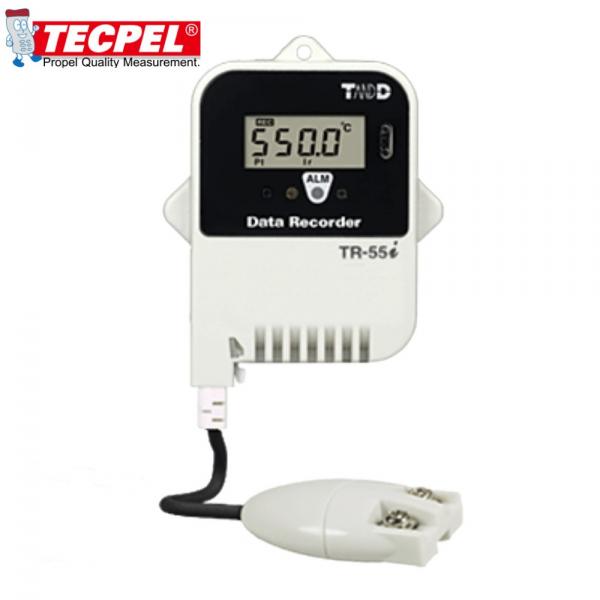

T&D TR-55i-Pt Infrared Temperature Data Logger(TR-55i-PT)

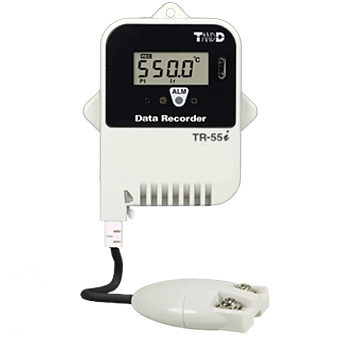

T&D TR-55i-Pt Infrared Temperature Data Logger

Compact temperature data logger TR - 55i - Pt for Pt100 / Pt1000


Product Summary


TR - 55i - Pt is a temperature data logger compatible with Pt100 / Pt1000 sensor, no matter where you put it in a compact size.
By connecting an optional 3-wire Pt sensor, it is possible to record a wide range of temperatures from -199 to 600 ° C.
The recorded data can be transferred to the personal computer via either the optional communication port TR - 50U2 or the data collector TR - 57DCi, and graph display / data analysis is possible.
If you use the data collector, you can also collect and view data on site without retrieving the data logger.


set content


One input module PTM - 3010
One lithium battery LS 14250
strap
A complete set of instructions






  • Measurement Range: -199 to 600°C

  • Pt100, Pt1000 (3 wire) sensor

  • Logging Capacity: Up to 16,000 Readings

  • Low energy consumption for long battery life

  • Downloading Data: Infrared Communication / Optical Communication

  • Warning Monitoring Function

  • Compact Waterproof Type

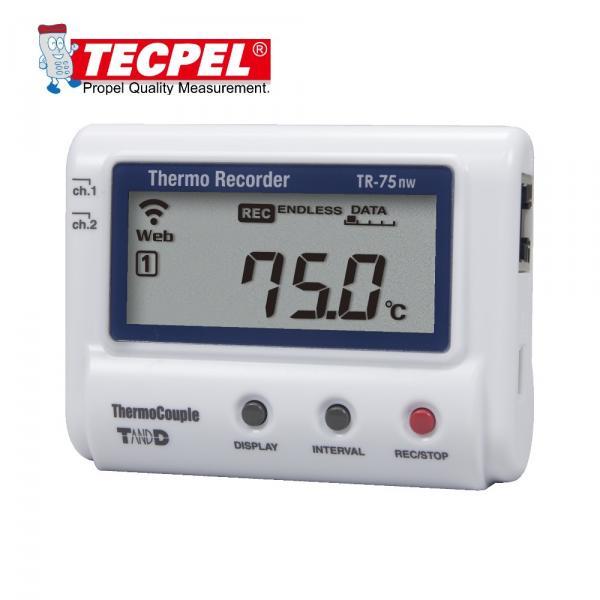

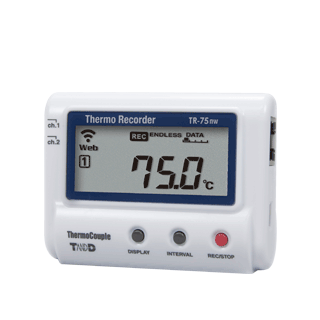

TandD TR-75nw Thermoocuple Temperature Data Logger( TR-75nw)




TandD TR-75NW Ethernet LAN Thermoocuple Temperature Data Logger



  • 2 External Thermocouple Sensor Input for Temperature Measurement in an Indoor Environment

  • Transmission of Recorded Readings to TandD Cloud Storage Using Existing Ethernet LAN for Viewing and Analysis of Data from Any Device

  • User-Replaceable Alkaline Batteries with 10 Day to 1.5 Year Typical Life (Depend on Auto-Upload Interval)

  • Able to Store up to 8,000 Measured Readings with Date/Time Stamp if Your existing Ethernet Communications is not Available.

  • Includes Alkaline Batteries.

Wireless/Wired temperature humidity data logger(TR-72nw, TR-72wf, TR-72nw-S, TR-72wf-S)

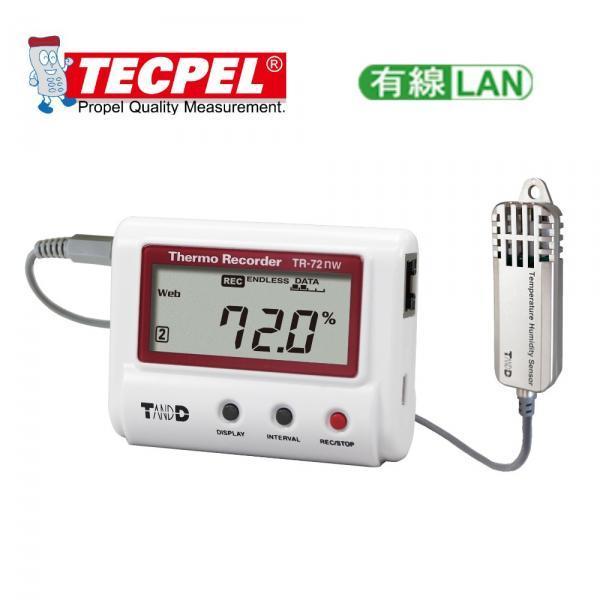

T&D TR-72nw-S High accuracy Wired LAN High Accuracy Temperature and Humidity Data Logger

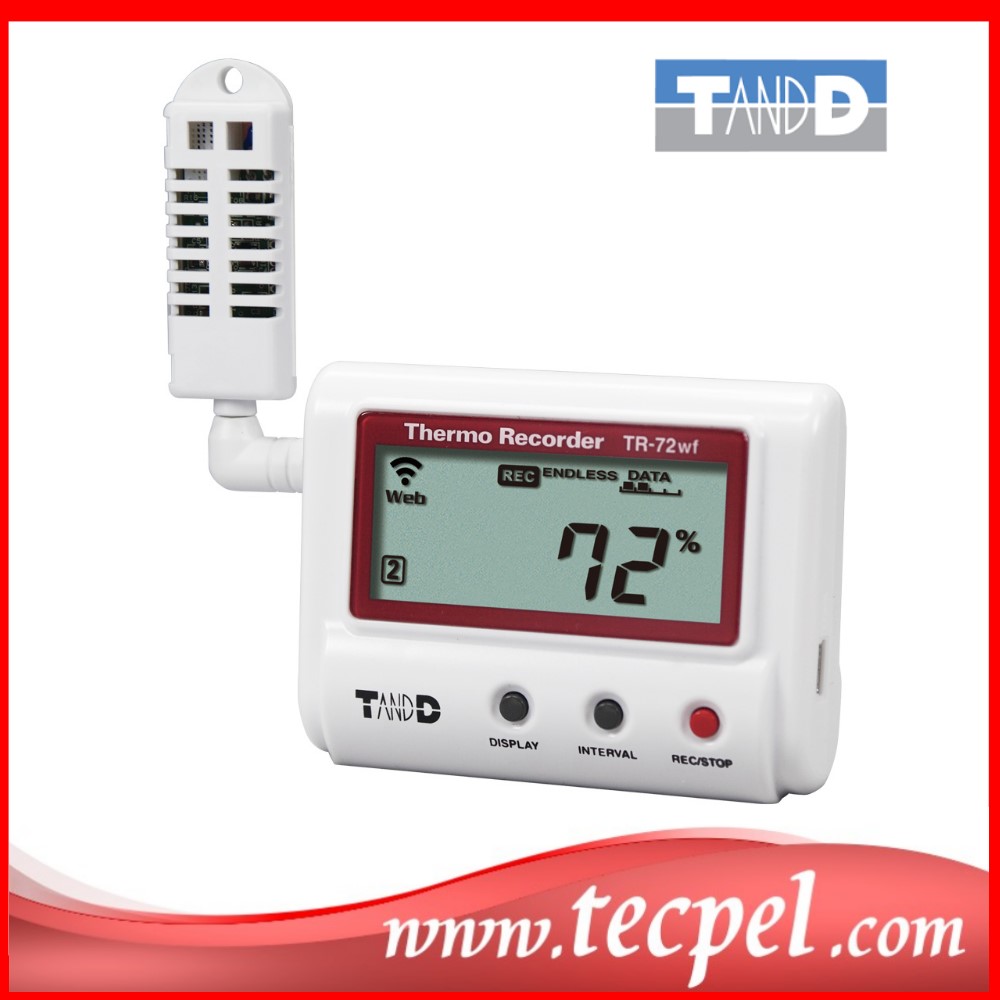

T&D TR-72wf-S  High accuracy Wireless Temperature and Humidity Data Logger


If you have a wired LAN environment that can use the Internet, you can automatically send the recorded data to the free cloud service ""Ontario Web Storage"" and check it with your computer, smartphone, tablet.
Recorded data can also be acquired via USB communication with a personal computer.


set content


Main body TR - 72 nw, temperature and humidity sensor (THA - 3001), 2 alkaline AA batteries, instruction manual


* USB communication cable and software CD-ROM are not included.





  • 1 Temperature channel: 0 to 55°C

  • 1 Humidity channel: 10 to 95% RH

  • External thermistor temperature sensor

  • Accuracy: ±0.5°C and ±5% RH

  • Logging capacity: 8,000 data sets

  • Measurement resolution: 0.1°C and 1% RH

  • Built-in 802.11b wireless interface

  • View data on mobile devices via Thermo App

  • WebStorage Service available


Please refer to the data sheet attached  herewith below.


Voltage Data Recorder and Logger(VR-71)





The VR-71 data logger measures and records voltage signals within a measurement

range of DC(+/-)15V.

It can record common signals, such as 1-5V/4-20mA as well as output signals from a variety of sensors.

The most impressive feature is the software function that allows the create of your own dot matrix patterns for unit display and then change the recorded voltage signal into the desired unit and display accordingly to match your measurings.



*Record Signals of 1-5V / 4-20mA.

*Record Output Signals from a Variety of Sensors.

*Pressure, Water Level, pH, Density, Opaqueness, etc...

*Voltage Management of Electrical Circuits.

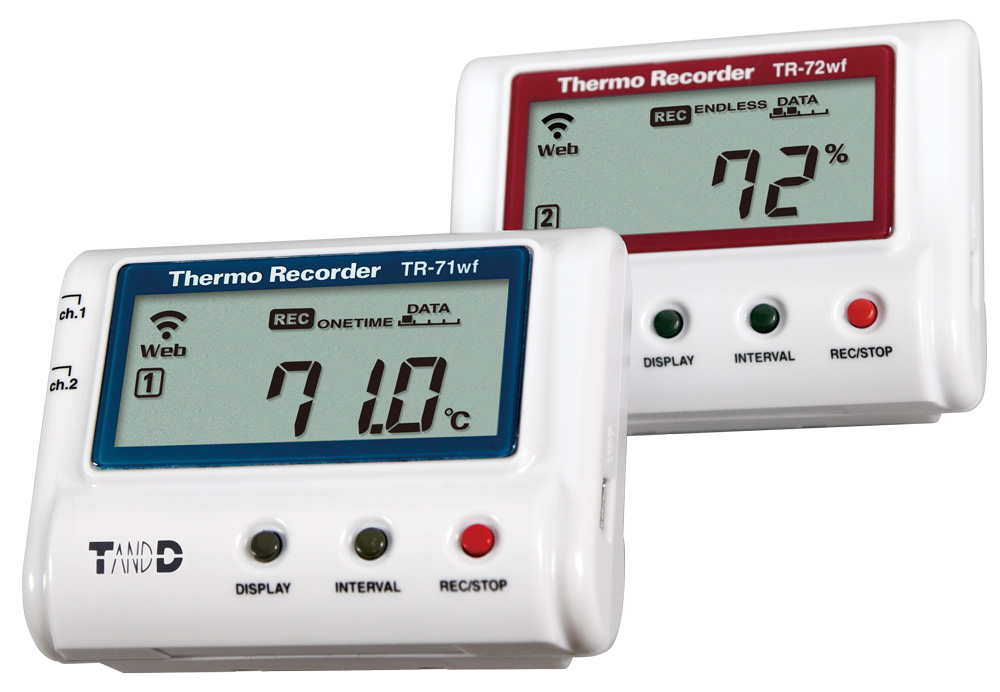

Wireless WiFi Temp Humidity Data Logger(TR-71wf TR-72wf TR-72wf-H)

 T and D TR-71wf tr-72wf tr-72wf-h Wifi Temperature Humidity Datalogger



Announcing the New Thermo Recorder: TR-7wf Series



T&D Corporation is proud to release the new temperature and humidity data logger TR-71wf/72wf.

The most distinguishing feature of TR-71wf/72wf is its auto upload function which automatically uploads recorded data from the logger to our free cloud service. It enables the viewing of uploaded data on your mobile device or PC anytime, anywhere.

Try our new data loggers and take a step into the new world of cloud storage...you won't want to go back.



Features




  • Wireless LAN Communication with Mobile Devices for Setup and Data Download

  • USB Communication with PC for Setup and Data Download

  • Battery-Powered Operation; No Cables Necessary

  • Logging Capacity of 8,000 Data Sets







Application Examples




  • Performance Testing of Humidity and Heat Control in Housing

  • For Managing Temperature and Humidity in Server Rooms

  • For Temperature and Humidity Management in Hospitals, Museums, and Temperature Controlled Warehouses

  • Management of Temperature and Humidity in Subway and Train Cars

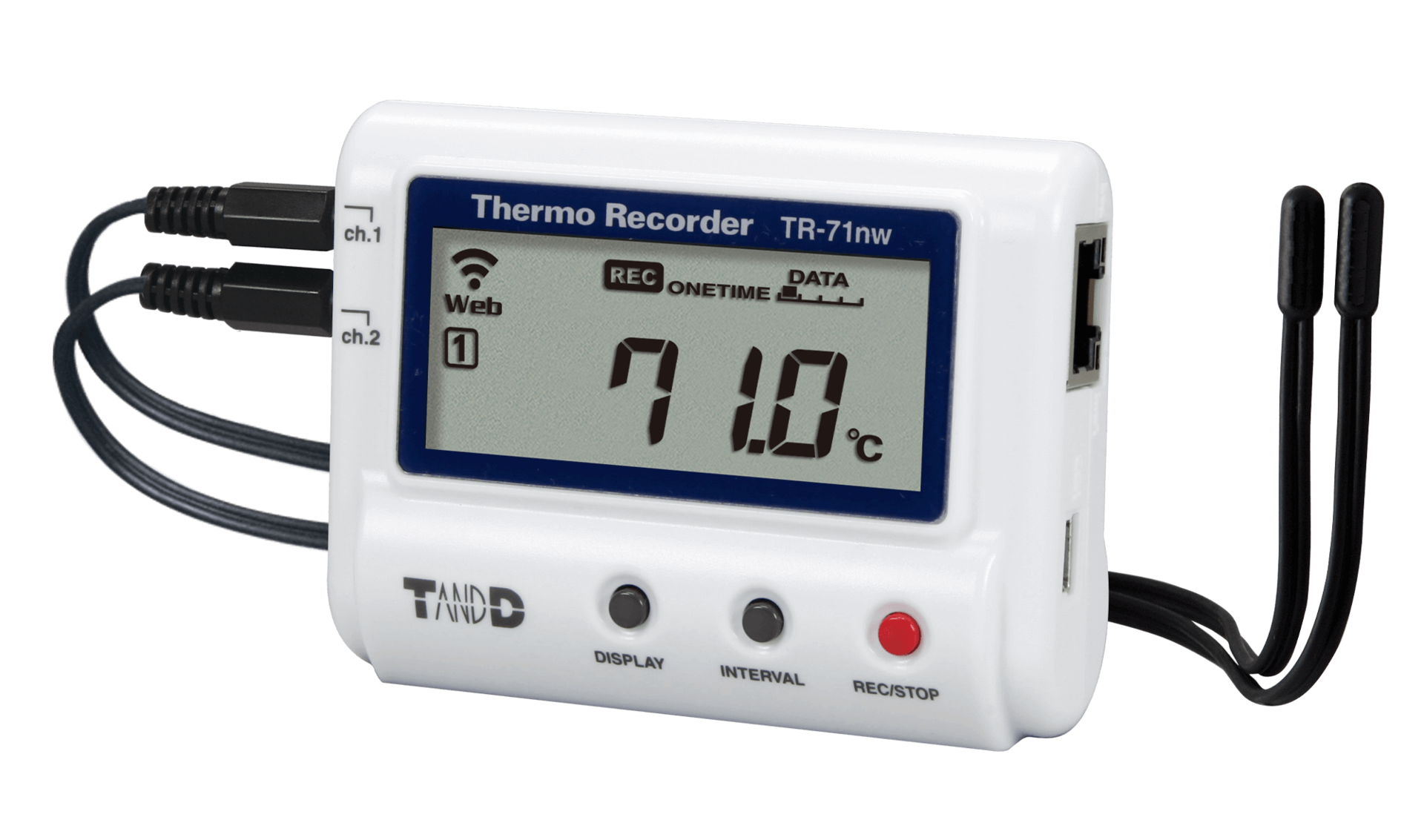

Wired LAN Temperature and Humidity Data Logger(TR-71nw TR-72nw TR-72nw-H)

The New Thermo Recorder: TR-7nw Series



T&D Corporation is proud to release the temperature and humidity data logger TR-71nw/72nw: a new LAN-based data logger for cloud storage. In addition to the existing wireless LAN model TR-71wf/72wf, we added the wired-LAN model with the same basic features to offer a choice of network connection methods.

By using T&D WebStorage Service*1, a cloud service provided by T&D free of charge, it is possible to access stored data from your PC and mobile devices anytime from anywhere. Simply connect the data logger to the Internet with a LAN cable, and it automatically*2 starts uploading recorded data to T&D WebStorage Service, thus providing a remote access solution without the need for manual intervention.



*1: Internet access via LAN is required to access T&D WebStorage Service.

*2: In the LAN environment where DHCP can be used.



Features



  • Automatic Upload of Recorded Data to T&D WebStorage Service via Wired LAN

  • Temp/Humidity Alarm Mail Transmission from T&D WebStorage Service

  • Direct Data Download via USB

  • Temperature and Humidity Measurement in a Wider Range with Greater Accuracy (TR-72nw-H)

  • Battery Operation for up to 1.5 years with one AA Alkaline Battery

  • Automatic Upload of Recorded Data to PC

Wireless WiFi Humidity and Temperature thermo recorder(TR-71wf TR-72wf TR-72wf-H)

 T and D TR-71wf tr-72wf tr-72wf-h Wifi Temperature Humidity Datalogger



Announcing the New Thermo Recorder: TR-7wf Series



T&D Corporation is proud to release the new temperature and humidity data logger TR-71wf/72wf.

The most distinguishing feature of TR-71wf/72wf is its auto upload function which automatically uploads recorded data from the logger to our free cloud service. It enables the viewing of uploaded data on your mobile device or PC anytime, anywhere.

Try our new data loggers and take a step into the new world of cloud storage...you won't want to go back.



Features




  • Wireless LAN Communication with Mobile Devices for Setup and Data Download

  • USB Communication with PC for Setup and Data Download

  • Battery-Powered Operation; No Cables Necessary

  • Logging Capacity of 8,000 Data Sets







Application Examples




  • Performance Testing of Humidity and Heat Control in Housing

  • For Managing Temperature and Humidity in Server Rooms

  • For Temperature and Humidity Management in Hospitals, Museums, and Temperature Controlled Warehouses

  • Management of Temperature and Humidity in Subway and Train Cars

T and D Web Thermo Recorder(TR-701NW_TR-702NW)






Product Type


Measurement Items







The network connected Temp/Humidity Data Logger TR-700W Series is a new type of temperature and humidity data logger equipped with a built-in function that enables connection to and use over the Internet or other network such as a LAN network.
The downloading of recorded data, the monitoring of current readings and the sending of warning mails can all be done easily over the Internet or LAN network. The use of an Internet connection provides a low cost way to manage temperature and humidity data from long distances.

The product is an all-in-one package that includes the data logger unit, sensors, cables and software.

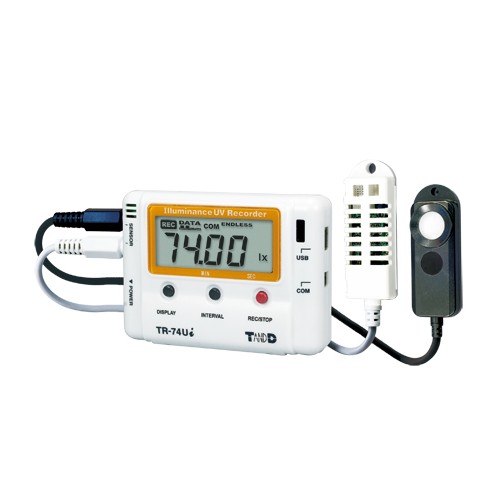

TandD TR-74Ui Accumulating Light, Humidity and Temperature Data Logger(TR-74Ui)




Overview





Product Type


Measurement Items





The ""TR-74Ui Illuminance UV Recorder"" is a data logger designed to simultaneously measure and record four items: Illuminance, Ultraviolet Light (UV), Temperature and Humidity. In addition to these, the TR-74Ui is also capable of displaying Cumulative Illuminance and Cumulative Amount of Ultraviolet Light in the LCD display. From dim moonlight to the summer sun, Illuminance can be measured within a wide range.

The product is an all-in-one package that includes the data logger unit, sensors and software. We offer two types of packages with different temperature/humidity sensors depending on your required measurement range and accuracy needs.
Simply by connecting to a PC via a USB connection and carrying out a few easy steps, the measurement and recording of data can be started.

Not only can recorded data be easily downloaded to a PC via USB communication, but it can also be collected from data loggers via infrared communication to our T&D Data Collector TR-57DCi (sold separately). The TR-57DCi enables the user to gather and check recorded data on the spot without having to manually gather the data loggers.





Application Examples


* In art museums and other exhibit forums to manage illuminosity and help prevent deterioration of exhibits
* Management during all aspects of plant and food production
* For use in the development, testing, manufacture and sales of products for cutting UV rays
* UV reduction management in schools from kindergartens to universities
* For home and office use in the management or illuminosity and UV rays
* Design and management of homes and architectural buildings
* For managing the reduction of UV rays at swimming pools, the ocean, mountains and in parks
* For management and adjustment of illuminosity for photography and film
* For management in the production, storage and sales of foodstuffs and beverages
* For use at supermarkets, convenience stores and drugstores in UV product sales promotion materials





  • Measure and Record Illuminance, Ultraviolet Light (UV), Temperature and Humidity

  • Temperature/Humidity Sensor Selection

  • View Cumulative Illuminance and Cumulative Amount of Ultraviolet Light in LCD Display

  • Measure Illuminance within Wide Range

  • View and record Illuminance in Resolutions to 0.01 lx

  • Simultaneously View Four Measurement in One Easy-to-Read Graph

  • Large Logging Capacity: 8,000 Data Sets

  • Transmit Recorded Data to PC via USB Connection



Measure and Record Illuminance, Ultraviolet Light (UV), Temperature and Humidity

TR-74Ui Illuminance UV Recorder is a data logger designed to simultaneously measure and record four items: Illuminance, Ultraviolet Light (UV), Temperature and Humidity. This versatile data logger can be applied in a wide range of applications, from business to personal use.



Temperature/Humidity Sensor Selection

The TR-74Ui standard package includes our THA-3151 Temperature/Humidity Sensor and the TR-74Ui-H high precision package includes our HHA-3151 Temperature/Humidity Sensor.



View Cumulative Illuminance and Cumulative Amount of Ultraviolet Light in LCD Display

In addition to Illuminance, Ultraviolet Light (UV), Temperature and Humidity, the TR-74Ui is also capable of displaying Cumulative Illuminance and Cumulative Amount of Ultraviolet Light in the LCD display.

Cumulative Illuminance Display Range: 0 to 90,000,000 lxh
Cumulative Amount of Ultraviolet Light Display Range: 0 to 62W/cm2h



Measure Illuminance within Wide Range

From dim moonlight to the summer sun, Illuminance can be measured within a wide range.

Illuminance Measurement Range: 0 to 130,000 lx



View and record Illuminance in Resolutions to 0.01 lx

High resolutions of up to 0.01 lx make it possible to measure even under less light conditions.



Simultaneously View Four Measurement in One Easy-to-Read Graph

The recorded data downloaded from TR-74Ui Units is read by the Multi-scale Graph and the data of four items, Illuminance, Ultraviolet Light (UV), Temperature and Humidity, can be simultaneously viewed in graph or tabular form as well as printed or output.



Large Logging Capacity: 8,000 Data Sets

The TR-74Ui Illuminance UV Recorder can measure and record up to 8,000 data sets. (One data set consists of readings for all channels: Illuminance, Ultraviolet Light, Temperature and Humidity.)
At the longest recording interval of 60 minutes, a Unit can record one year's worth of measurements.

* The battery life for a TR-74Ui Unit is about 6 months. In order to record measurements consecutively for 1 year, the battery should be periodically changed.
Battery life varies depending upon the type of battery, the battery performance, the measuring environment, and the frequency of communication.



Transmit Recorded Data to PC via USB Connection

It is possible to connect a TR-74Ui Unit directly to your computer with a USB cable.
If the computer has more than one USB port, it is possible to connect multiple TR-74Ui Units to one computer at the same time.

Connecting more than one TR-74Ui Unit at a time can only be done if using Windows 7 and Windows Vista.


Moreover, it is possible to gather current readings from the TR-74Ui connected to your computer and view those readings in the computer display.
