5MHz Function Signal Generator FG52(FG-52)

0.05Hz ~ 5MHz Function Generator
Linear/Log Sweep Function
Duty Cycle Control
Invert Function
Auto Range Auto Gatetime Counter
0.001Hz Counter Resolution

4MHz / 10 MHz Programmable Digital Function Generator(GWinstek SFG-2004_ 2010_2110)

SFG-2100/2000 Series
*DDS Technique and FPGA Chip Design
*Frequency Range : 0.1Hz~4/10MHz
*High Frequency Accuracy : ± 20ppm
*Frequency Resolution : 100mHz
*Low Distortion Sine Wave : -55dBc,0.1Hz~200kHz
*Front Panel Setting Save/Recall with 10 Groups of Setting Memories
*Built-In 9 Digits,150MHz/High Resolution Counter(SFG-2110 Only)
*INT/EXT AM/FM Modulation (SFG-2110 Only)
*LIN/LOG Sweep Mode(SFG-2110 Only)

Based on the Direct Digital Synthesized (DDS) technology and unique FPGA design, the SFG-2000/2100 Series Function Generators are built with exceptionally high performance far exceeding that of any conventional function generators at a very competitive price. Stable output frequency, low distortion, and fine frequency resolution are the most remarkable characteristics of this product series.

The SFG-2000/2100 Series include four members in each family at 4MHz and 10MHz bandwidth(perivd), The SFG-2100 Series have additional functions of Sweep, AM/FM modulation, and External Counter. As a result of the 20ppm stability level and output waveform accuracy, The SFG-2000/2100 Series well fit into a wide variety of applications, such as signal generator for experiment labs, reference signal for PLL (Phase Locked Loop), and calibration and adjustment source for electronic devices.

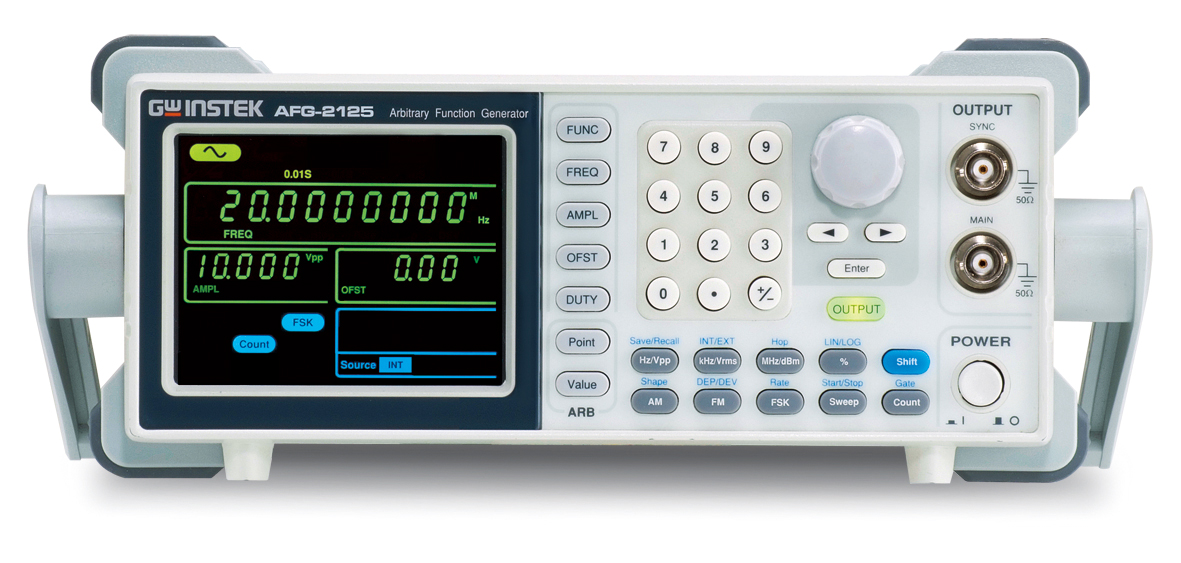

Arbitrary Function Generator DDS Direct Digital Synthesized( GWINSTEK AFG-2125, 2005, 2105, 2012, 2112, 2025)

* PC Arbitrary Waveform Editing Software
* 0.1Hz to 5/12/25 MHz with in 0.1Hz Resolution
* Sine, Square, Triangular, Noise and Arbitrary Waveform
* 20MSa/s Sampling Rate, 10 bit Vertical Resolution and 4k Point Memory for Arbitrary Waveform
* 1% ~ 99% adjustable duty cycle for Square Waveform
* Waveform Parameter Setting Through Numeric Keypad Entry & Knob Selection
* Amplitude, DC Offset and Other Key Setting Information Shown on the 3.5” LCD Screen Simultaneously
* AM/FM/FSK Modulation, Sweep, and Frequency Counter Functions (AFG-2100 only)
* USB Device Interface for Remote Control and Waveform Editing

20 MHz / 10 MHz Function Generator(SFG-2120, SFG-2110)

SFG-2120, 20MHz DDS Function Generator with Counter, Sweep and Modulation
SFG-2120 was discontinued and replaced by AFG-2112.
FEATURES
DDS Technology and FPGA Chip Design
Frequency Range : 0.1Hz~20MHz
High Frequency Accuracy : ± 20ppm
High Frequency Stability : ± 20ppm
Frequency Resolution : 100mHz
Low Distortion Sine Wave : -55dBc, 0.1Hz~200kHz
Front Panel Setting Save/Recall with 10 Groups of Setting Memories
Built-In 6 Digits, 150MHz/High Resolution Counter
INT/EXT AM/FM Modulation
LIN/LOG Sweep Mode

SFG-2110, 10MHz DDS Function Generator with Counter, Sweep and Modulation
FEATURES
DDS Technology and FPGA Chip Design
Frequency Range : 0.1Hz~10MHz
High Frequency Accuracy : ± 20ppm
High Frequency Stability : ± 20ppm
Frequency Resolution : 100mHz
Low Distortion Sine Wave : -55dBc,0.1Hz~200kHz
Front Panel Setting Save/Recall with 10 Groups of Setting Memories
Built-In 6 Digits, 150MHz/High Resolution Counter
INT/EXT AM/FM Modulation
LIN/LOG Sweep Mode

FG32 - 3 MHz Function Generator with 50MHz Counter(FG32)

FG 32 (6 Functions, 6 Ranges with counter)
1. Six waveform functions - Sine, Triangle, Square, Ramp +/- Pulse.
2. Frequency Range 0.5Hz ~ 3MHz
3. 5 digit autorange counter LED display
4. Internal/External counter function.
5. Linear/Log sweep. Sweep rate 10mS ~ 5S.
6. External counter trigger level control.
7. VCF input 0 ~ +/- 10V Voltrage control frequency to 1000:
8. Amplitude : 20V p-p (open);10V p-p (50 Ohm load).

5MHz Function Generator(FG 52)

0.05Hz ~ 5MHz Function Generator
Linear/Log Sweep Function
Duty Cycle Control
Invert Function
Auto Range Auto Gatetime Counter
0.001Hz Counter Resolution
