Digital Light meter(DLM 530 , DLM 531) Product ID: DLM 530 , DLM 531

Digital Light meter :

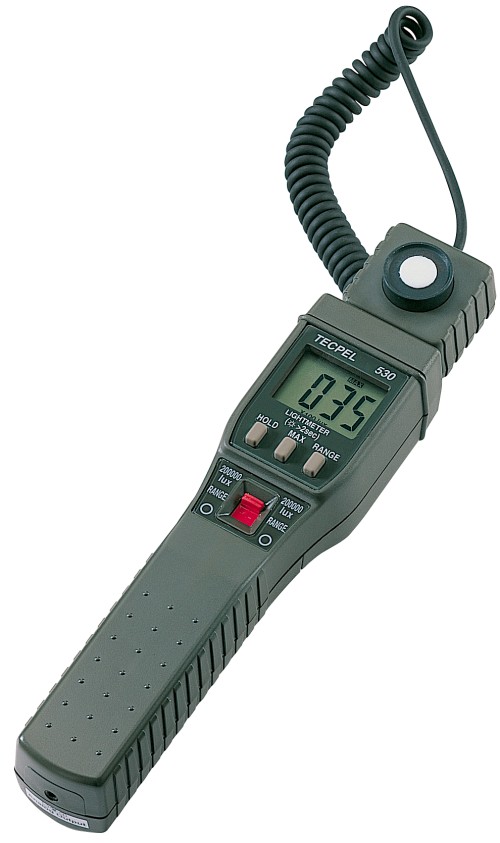

Model:DLM 530 Lux meter (Range : From 20 to 200,000 Lux )

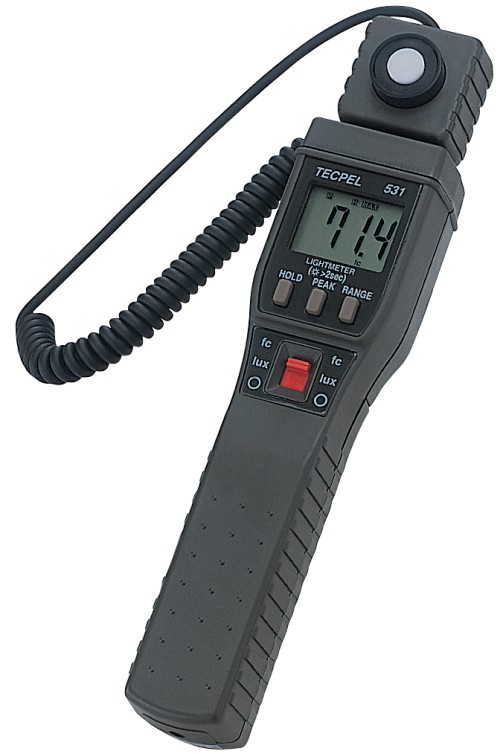

Model:DLM 531 Lux/ Footcandle Meter
(Range : 20 Lux,200 lux, 2000 lux, 20,000 Lux; 20fc, 200fc, 2000fc, 20,000fc)
(CIE photopic f'1 No Specified )

Certificate:CE Approval
  • DLM 530 Features:
    • For Simple One Hand Operation
    • Accurate Visible Compensation Filter is Used. (CIE photopic f'1 No Specified )
    • Acceptance Angle: Cosine Response:f’2Total Accuracy for CIE standard illuminat A(2856K) +/- (3% Reading + 10 digits)
    • Range : From 20 to 200,000 Lux
    • Analog Output Standard
    • Valox Housing to Withstand Accidental Drops
    • Digital and Analog Output Function
    • Highly accurate f’1 Compensation and Diffuser f’2MAX/Data Hold Function
    • Backlit LCD Display
  • DLM 530 Specifications:
    • Photometric Formulas:
    • 1footcandles = l0.764 Lux (lumens/meter^2)
    • Ranges: 20lux,200lux,2,000lux,20,000lux,200,000lux.
    • Resolution: 0.01lux.
    • Spectral response: CIE photopic
    • Acceptance angle: f’2Total accuracy: for CIE standard illuminate A (2856K);(±3%rdg+10dgts)
    • Sampling rate: 3 times/per second
    • General
    • Power Requirement: 4 pieces 1.5V (AAA size) batteries
    • Dimensions: 6.7""x1.7""x1.6"" (170x44x40mm)
    • Weight: 7.7 oz(220g)
    • Accessories: Test leads,soft carrying case, and owners manual.
  • DLM531 Features:
    • For Simple One Hand Operation
    • Accurate Visible Compensation Filter Match (CIE photopic f'1 No Specified )
    • Cosine Response:f’2CIE photopic f'1 No Specified )
    • Acceptance Angle: Cosine Response:f’2Total Accuracy for CIE standard illuminat A(2856K) +/- (3% Reading + 10 digits)
    • Range : 20 Lux,200 lux, 2000 lux, 20,000 Lux ; 20fc, 200fc, 2000fc, 20,000fc
    • Analog Output Standard (output impedance 500 ohm)
    • Valox Housing to Withstand Accidental Drops
    • Digital and Analog Output Function
    • Highly accurate f’1 Compensation and Diffuser f’2Peak Data Hold Function
    • Backlit LCD Display
    • High Accuracy : ±3%rdg+10dgts
    • 3 1/2 digit LCD display with a maximum reading of 1999
    • Automatic Zero
  • DLM 531 Specifications:
    • Photometric Formulas:
    • 1 footcandles = 10.764 Lux (lumens/meter2)
    • 1 Lux (lumens/meter2) = 0.0929 footcandles
    • Ranges: 20lux, 200lux, 2,000lux, 20,000lux ; 20fc, 200fc, 2000fc, 20,000fc
    • Resolution: 0.01lux. ; 0.01 fc
    • Spectral response: CIE photopic
    • Acceptance angle: f’2CIE photopic f'1 No Specified )
    • Acceptance Angle: Cosine Response:f’2Total Accuracy for CIE standard illuminat A(2856K) +/- (3% Reading + 10 digits)
    • Total accuracy: for CIE standard illuminate A (2856K);(±3%rdg+10dgts)
    • Sampling rate: 3 times/per second
    • General
    • Power Requirement: 4 pieces 1.5V (AAA size) batteries
    • Dimensions: 6.7""x1.7""x1.6"" (170x44x40mm)
    • Weight: 7.7 oz(220g)
    • Accessories: Test leads, soft carrying case, and owners manual.
