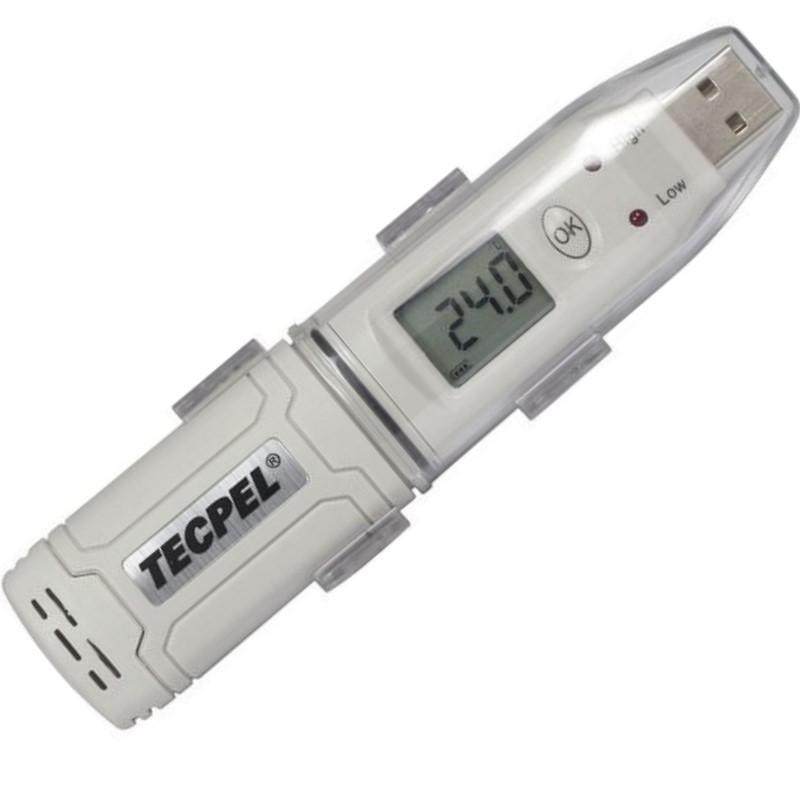

TECPEL Temperature Logger TR-31/ Temperatue Humidity Logger TR-32(TR-31/ TR-32) Product ID: TR-31/ TR-32
TR-31/32 series has USB interface, featuring elegant appearance and compact construction design
for refrigerator , cold-chain transportation, and container transportation monitoring applications.
TR-31/32 adopts user-friendly USB interface, easy-to-mount brackets with screws.
The OK key can help the user check the Max/Min/Current values and the upper and lower limits.
Compact / Warning Signal / Lightweight / Water Resistant!
Wide Temperature Range: -30 deg C to 70 deg C
Large Data Capacity: up to 43,000 Records
Wide Selection of Recording Intervals 2 s to 24 H
Impressive one year battery life
Waning Monitoring function
1. Simply connect to a PC via supplied USB cable to set up data logger.
2. IP Rating : IP 67 Waterproof and dust proof to resist moisture, dew-point temperature and dust.
3. The low energy consumption circuit design.
4. Hi/Low LED blinking Alarm setting.
5. Able to display Max/Min reading.
6. Switchable *C and *F.
7. Dew point calculation via software. (TR-32)
8. Easy operation English software.
9. Low battery indication.
10. Data storage capability: 43,000 points
11. Acrylic holder for easy installation on walls.
- Application Examples :
- Cool and frozen transportation and storage
- Frozen transportation and storage
- Monitoring temperature during food transportation
- Performance testing of air conditioning equipment
- Recording temperature of instrumentation and machinery
- TR-31, Specifications:
- Temperature Measurement -30 to 70 ° C
- Measurement Accuracy +/- 0.5 ° C
- Average +/- 0.5 ° C (-20 to 70 ° C)
- Measurement Resolution Display 0.1 ° C
- Sensor Thermistor
- TR-32 Specifications:
- Measurement :Temperature Humidity
- Temperature : -30 to 70 ° C
- Humidity : 0 to 100 %RH
- Measurement Accuracy
- (Standard Sensor) Average +/-0.5° C(-20 to 70 ° C)
- Average +/- 0.5 °C ; +/- 5%RH (At 25 ° C 50%RH)
- Measurement Resolution Display 0.1° C , 1%RH (TR-32)
- Sensor Thermistor Macromolecular
- High Sensitve Humidity Sensor
General Specification for TR-31/TR-32
- Recording Interval 2s to 24 hours
- Recording Capacity 43,000 Readings
- LCD display Current Temperature, Recording Condition, Battery Life Warning
- and Unit of Temperature (deg F and deg C)
- Battery Lithium battery (ER3V M) x 1 (Also availabe with CR2)
- Battery Life Approximately one years
- Water Resistance Capacity IP67
- Dimensions H125mm x W28mm x D22mm
- Weight 60g (Including battery)
- Temperature Resistance of Unit -30 to 70 ° C
- Order Information:
- TR-31 : -30 to 70 ° C Temperature Recorder.
- TR-32: -30 to 70 ° C Temperature/ Humidity Recorder
