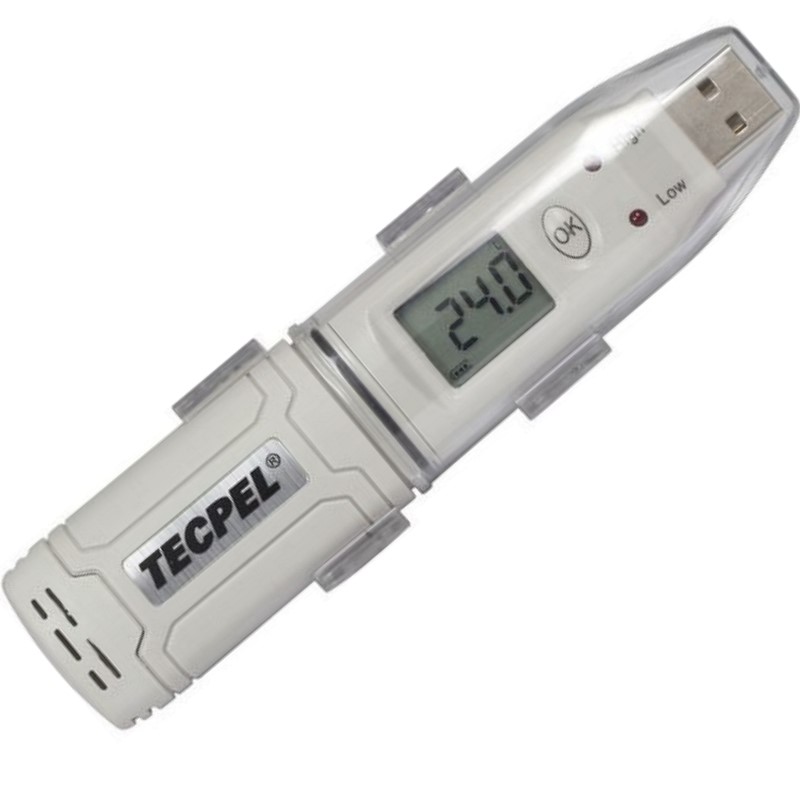

TECPEL Temperature Logger TR-31/ Temperatue Humidity Logger TR-32(TR-31/ TR-32) Product ID: TR-31/ TR-32

TR-31/32 series has USB interface, featuring elegant appearance and compact construction design for refrigerator , cold-chain transportation, and container transportation monitoring applications.
TR-31/32 adopts user-friendly USB interface, easy-to-mount brackets with screws.
The OK key can help the user check the Max/Min/Current values and the upper and lower limits.
Compact / Warning Signal / Lightweight / Water Resistant!
Wide Temperature Range: -30 deg C to 70 deg C
Large Data Capacity: up to 43,000 Records
Wide Selection of Recording Intervals 2 s to 24 H
Impressive one year battery life
Waning Monitoring function

1. Simply connect to a PC via supplied USB cable to set up data logger.
2. IP Rating : IP 67 Waterproof and dust proof to resist moisture, dew-point temperature and dust.
3. The low energy consumption circuit design.
4. Hi/Low LED blinking Alarm setting.
5. Able to display Max/Min reading.
6. Switchable *C and *F.
7. Dew point calculation via software. (TR-32)
8. Easy operation English software.
9. Low battery indication.
10. Data storage capability: 43,000 points
11. Acrylic holder for easy installation on walls.

Category: Data Loggers
Certificate:CE
  • Application Examples :
    • Cool and frozen transportation and storage
    • Frozen transportation and storage
    • Monitoring temperature during food transportation
    • Performance testing of air conditioning equipment
    • Recording temperature of instrumentation and machinery



  • TR-31,  Specifications:
    • Temperature Measurement  -30 to 70 ° C
    • Measurement Accuracy +/- 0.5 ° C
    • Average +/- 0.5 ° C (-20 to 70 ° C)
    • Measurement Resolution Display 0.1 ° C
    • Sensor Thermistor



  • TR-32 Specifications:
    • Measurement :Temperature Humidity
    • Temperature : -30 to 70 ° C
    •  Humidity :  0 to 100 %RH
    •  Measurement Accuracy
    • (Standard Sensor) Average +/-0.5° C(-20 to 70 ° C)
    • Average +/- 0.5 °C ; +/- 5%RH (At 25 ° C 50%RH)
    • Measurement Resolution Display 0.1° C , 1%RH (TR-32)
    • Sensor Thermistor Macromolecular
    • High Sensitve Humidity Sensor

      General Specification for TR-31/TR-32

      • Recording Interval  2s to 24 hours
      • Recording Capacity 43,000 Readings
      • LCD display Current Temperature, Recording Condition, Battery Life Warning
      • and Unit of Temperature (deg F and deg C)
      • Battery Lithium battery (ER3V M) x 1 (Also availabe with CR2)
      • Battery Life  Approximately one years
      • Water Resistance Capacity  IP67
      • Dimensions H125mm x W28mm x D22mm
      • Weight 60g (Including battery)
      • Temperature Resistance of Unit -30 to 70 ° C


  • Order Information:
    • TR-31 : -30 to 70 ° C Temperature Recorder.
    • TR-32:  -30 to  70 ° C Temperature/ Humidity Recorder
